Differential - FWD: Disassembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: Backlash specification: 0.02-0.08 mm (0.0008-0.0031 in).

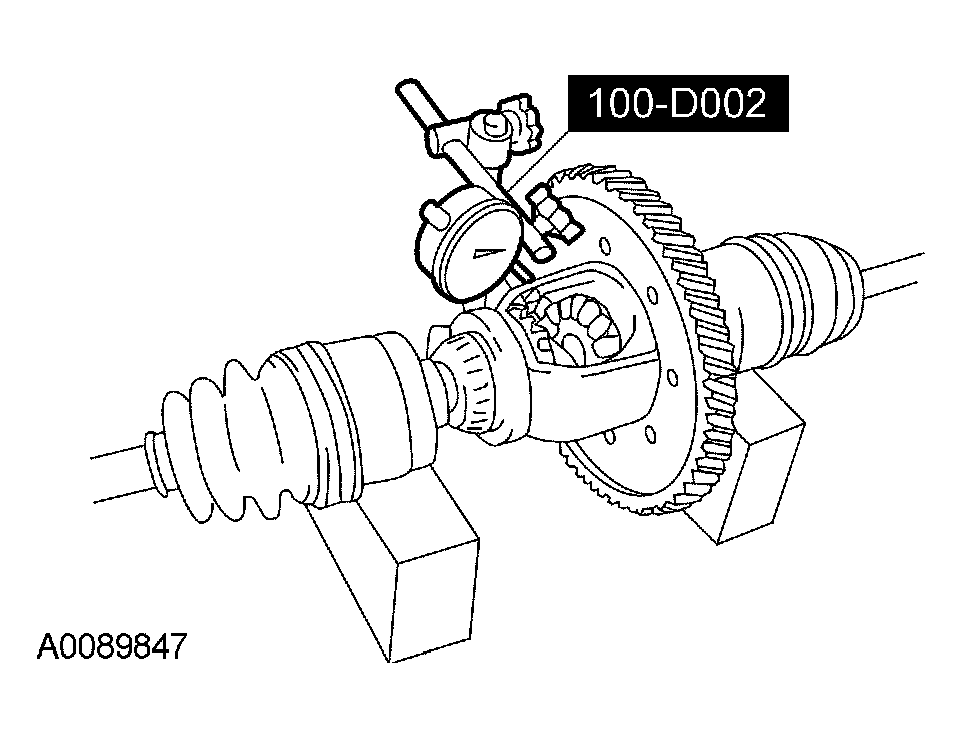

    Fig 1: Measuring And Record Backlash For Differential Side Gears
    G03901833Courtesy of FORD MOTOR CO.
  1. Using the special tool, measure and record the backlash for the differential side gears. Install a new differential if beyond specification.
  2. Remove the 10 bolts and the final drive gear.
  3. Using the special tools, remove the differential side bearing.
    • Discard the differential side bearing.

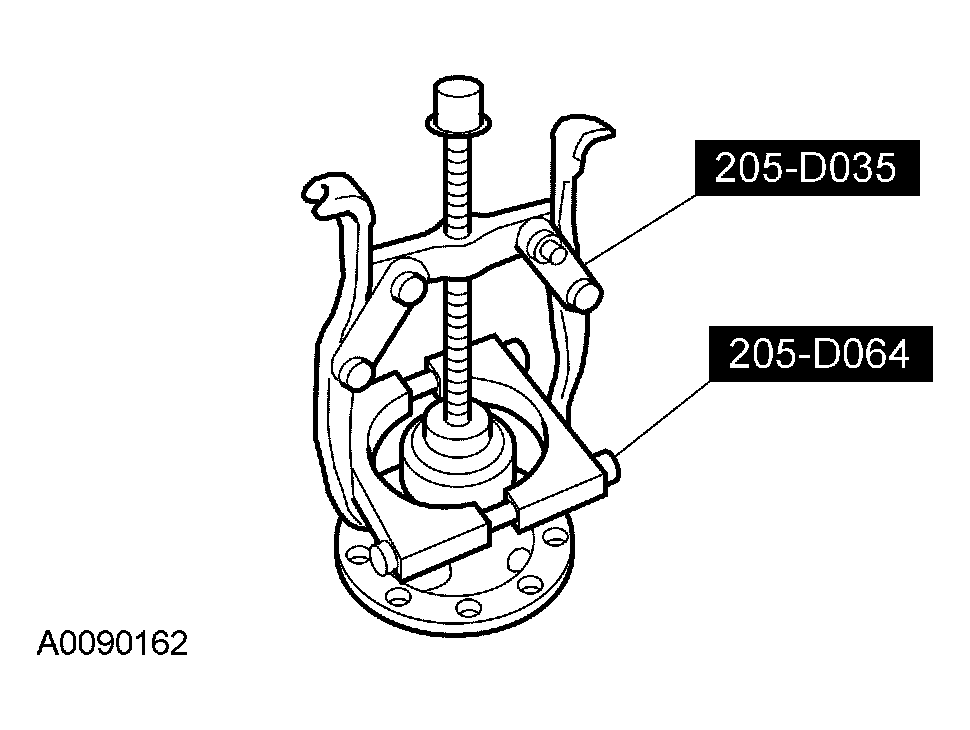

      Fig 2: Removing Differential Side Bearing
      G03901834Courtesy of FORD MOTOR CO.
  4. Remove the spacer.
  5. Remove the vehicle speed sensor (VSS) drive gear.
  6. Using the special tools, remove the differential side bearing.
    • Discard the differential side bearing.
      Fig 3: Removing Differential Side Bearing, Using Special Tools
      G03901834Courtesy of FORD MOTOR CO.
