Differential - 4WD: Assembly

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Be careful not to crush the bearing while pressing it onto the differential case.
    Fig 1: Pressing Onto Differential Case
    G03901836Courtesy of FORD MOTOR CO.
  1. Install a new differential side bearing.
  2. Install the VSS drive gear.
  3. Install the spacer.
    4. CAUTION: Be careful not to crush the bearing while pressing it onto the differential case.
    Fig 2: Installing New Differential Side Bearing
    G03901837Courtesy of FORD MOTOR CO.
  4. Install a new differential side bearing.
  5. Install the final drive gear.
  6. Install the 10 final drive gear bolts.
    • Tighten in the sequence shown in Fig 3 to 120 Nm (89 lb-ft).

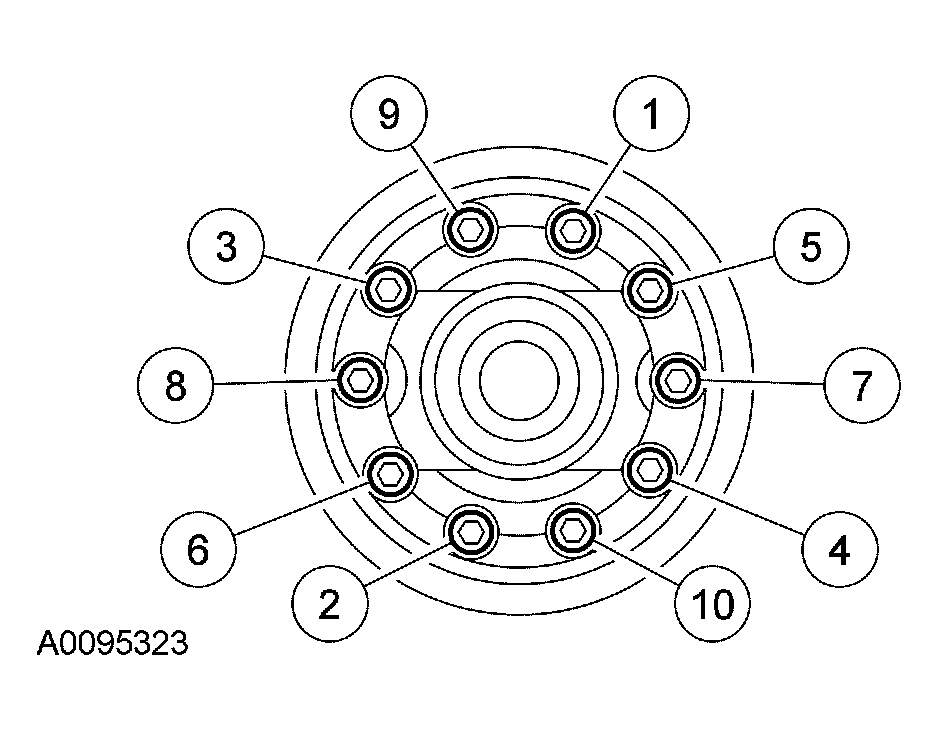

      Fig 3: Installing Final Drive Gear Bolts
      G03901838Courtesy of FORD MOTOR CO.
  7. Install the reduction gear.
  8. Install the 10 reduction gear bolts.
    • Tighten in the sequence shown in Fig 4 to 96 Nm (71 lb-ft).
      Fig 4: Installing Reduction Gear Bolts
      G03901849Courtesy of FORD MOTOR CO.
