Gearshift Cables: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: When inserting the gearshift cables through the dash panel, make sure the arrow on the grommet is pointing down.

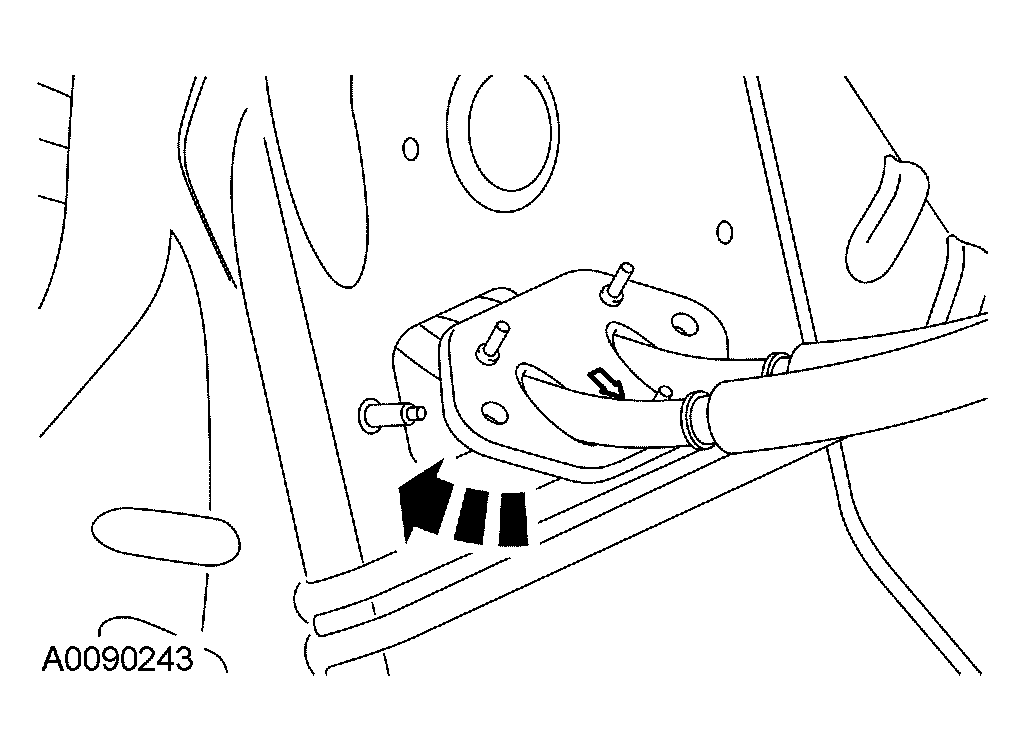

Fig 1: Inserting Gearshift Cables Through Dash Panel

Courtesy of FORD MOTOR CO.

Insert the gearshift cables through the dash panel.
Connect the select cable.

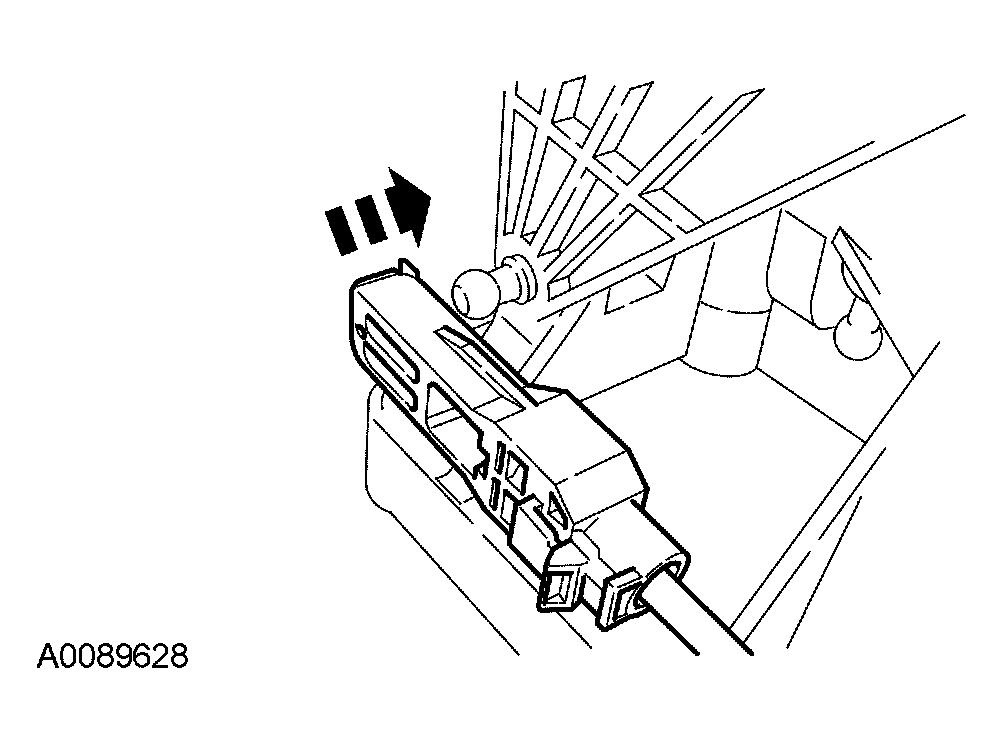

Fig 2: Connecting Select Cable
Courtesy of FORD MOTOR CO.
Connect the gearshift cable.

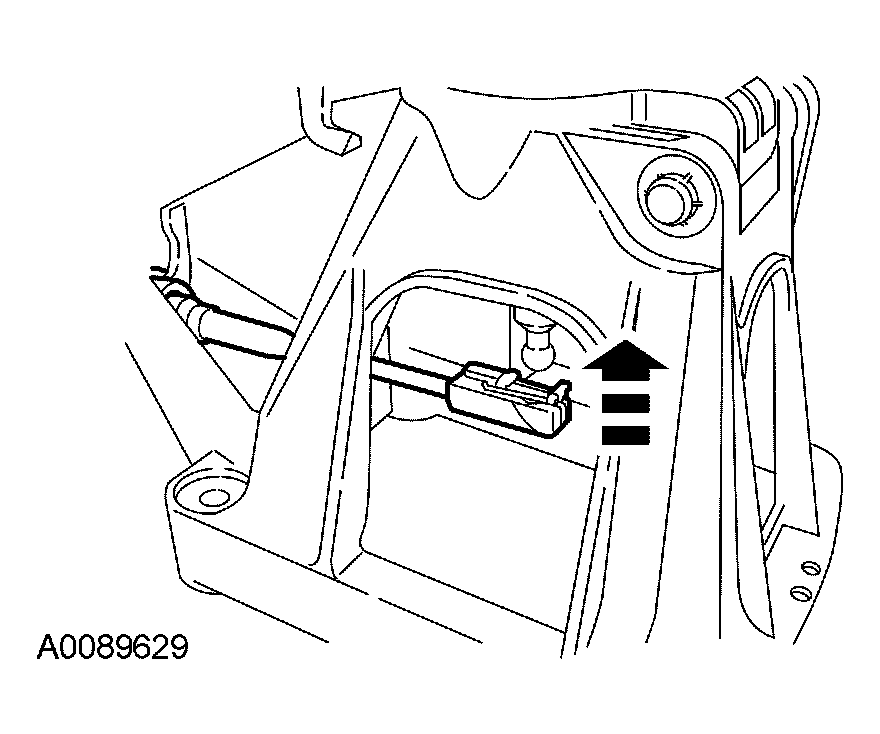

Fig 3: Connecting Gearshift Cable
Courtesy of FORD MOTOR CO.
Install the 2 gearshift cable grommet nuts.
- Tighten to 10 Nm (89 lb-in).

CAUTION: Make sure the clips are set completely within the cable adapter groove and fully seated.

Fig 4: Installing Gearshift Cable Clips

Courtesy of FORD MOTOR CO.

Install the 2 gearshift cable clips.
Connect the gearshift cables to the transaxle gearshift control assembly.
Adjust the gearshift cables. For additional information, refer to MANUAL TRANSAXLE-TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Install the RCM. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
