Power Transfer Unit (PTU) - Automatic Transaxle: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL ITEM SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 High Performance Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Drain the transfer case. For additional information, refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING - AUTOMATIC TRANSAXLE .
- Remove the front RH intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
- Remove the driveshaft. For additional information, refer to DRIVESHAFT .
- Remove the 4 bolts and the crossmember brace.
- Remove the generator. For additional information, refer to GENERATOR AND REGULATOR .
- Remove the exhaust as required. For additional information, refer to EXHAUST SYSTEM .

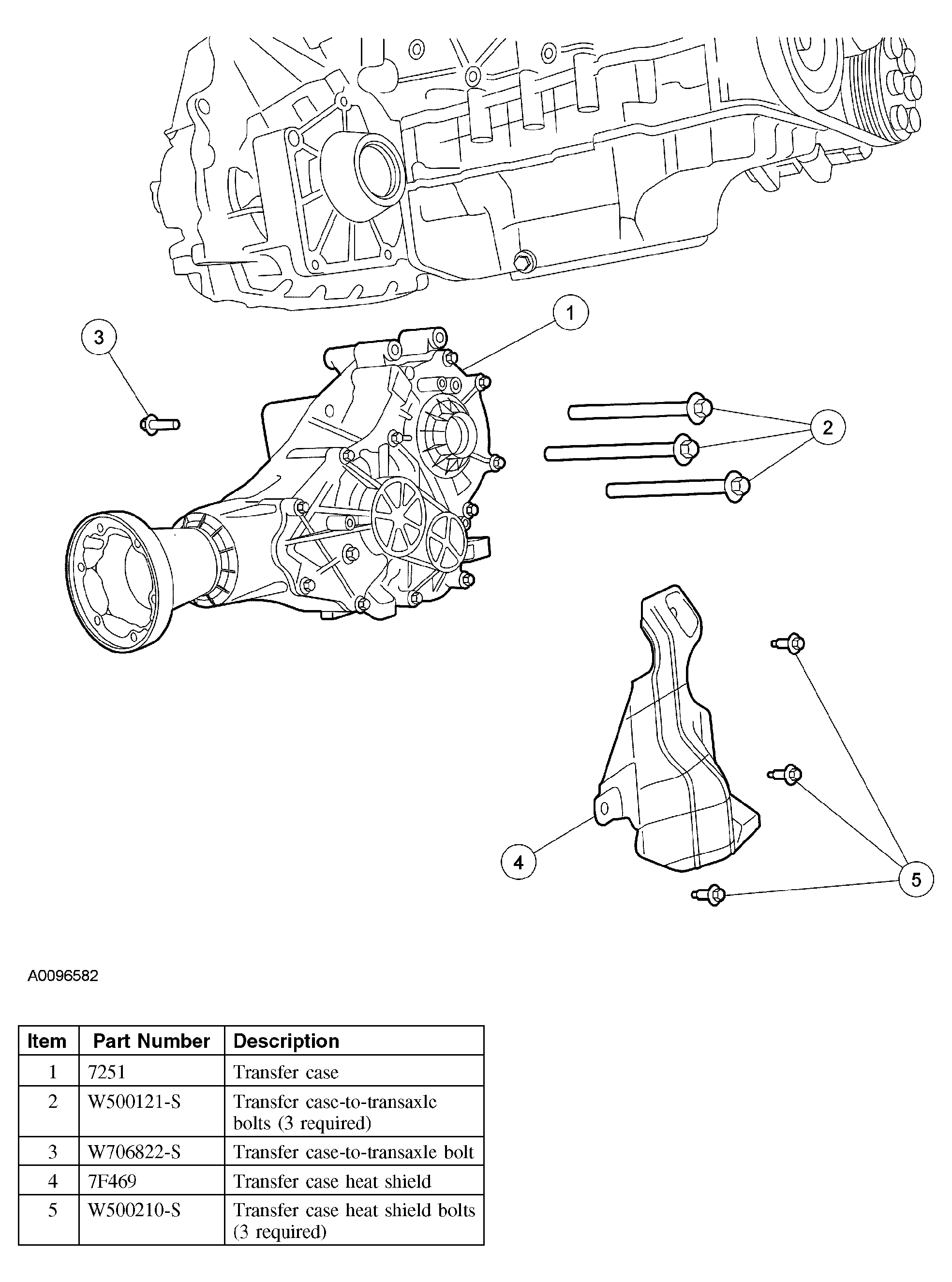

- Remove the 3 transfer case heat shield bolts and the transfer case heat shield.
- Remove the transfer case-to-engine brace.
- Disconnect the transfer case vent hose and position it aside.
- Remove the 4 transfer case-to-transaxle bolts.
- Remove the transfer case.
CAUTION:
A new transfer case inner halfshaft seal must be installed whenever the intermediate shaft or transfer case is removed from the vehicle.
