Output Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer case rear output shaft flange. For additional information, refer to OUTPUT FLANGE .
  2. Remove the transfer case rear output shaft oil (pinion) seal.

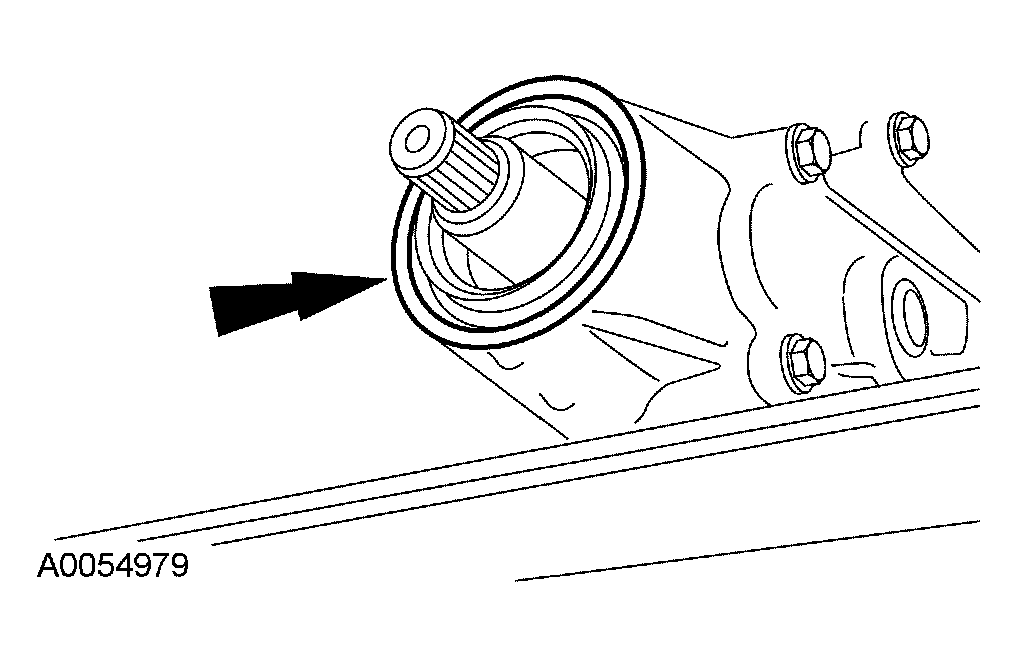

    Fig 1: Removing Transfer Case Rear Output Shaft Oil (Pinion) Seal
    G03901919Courtesy of FORD MOTOR CO.
