Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS

G03901703
 Clutch Aligner 308-020 (T74P-7137-K)
G03955962
 Flywheel Holding Tool 303-103 (T74P-6375-A)

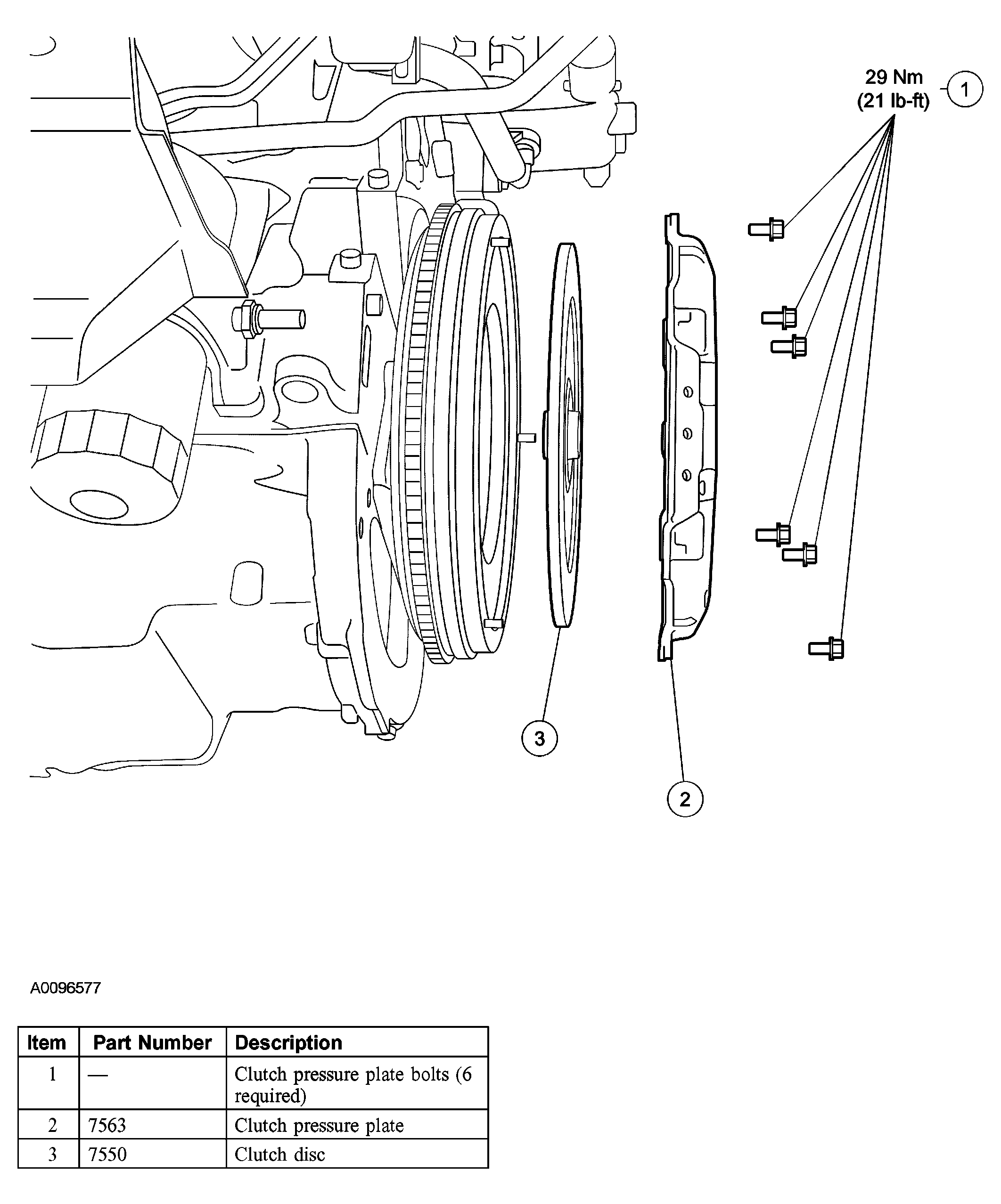

Fig 1: Removing/Installing Clutch Disc And Pressure Plate
G03901705Courtesy of FORD MOTOR CO.
