Clutch Disc and Pressure Plate: Installation

WARNING: This page is about a different variant/trim than selected.

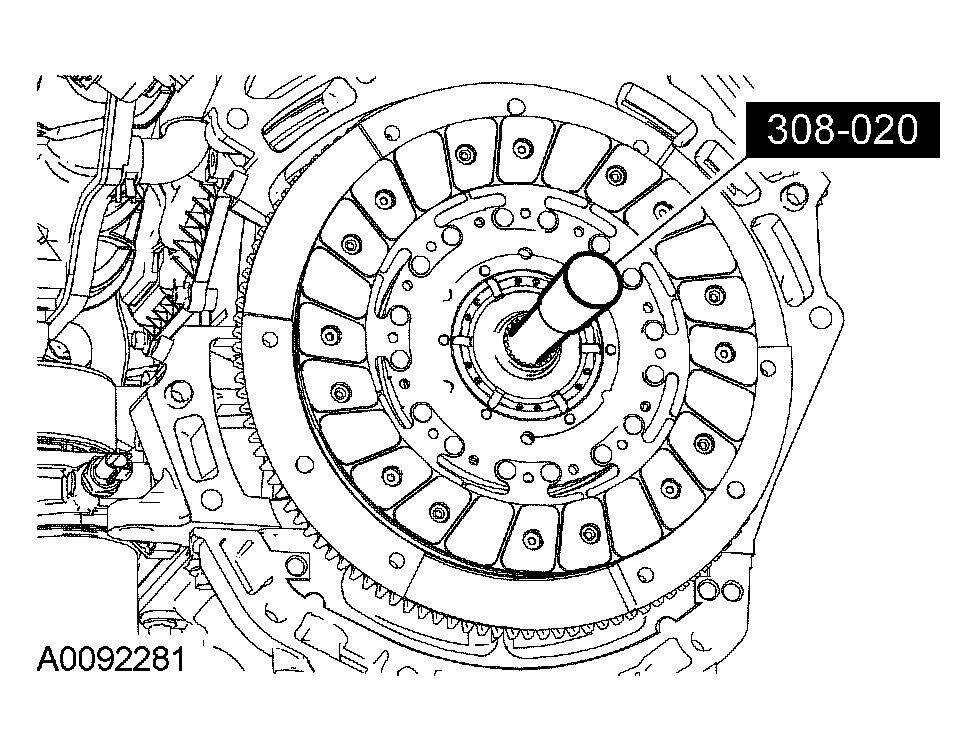

Using the special tool, position the clutch disc on the flywheel.

Fig 1: Positioning Clutch Disc On Flywheel
Courtesy of FORD MOTOR CO.

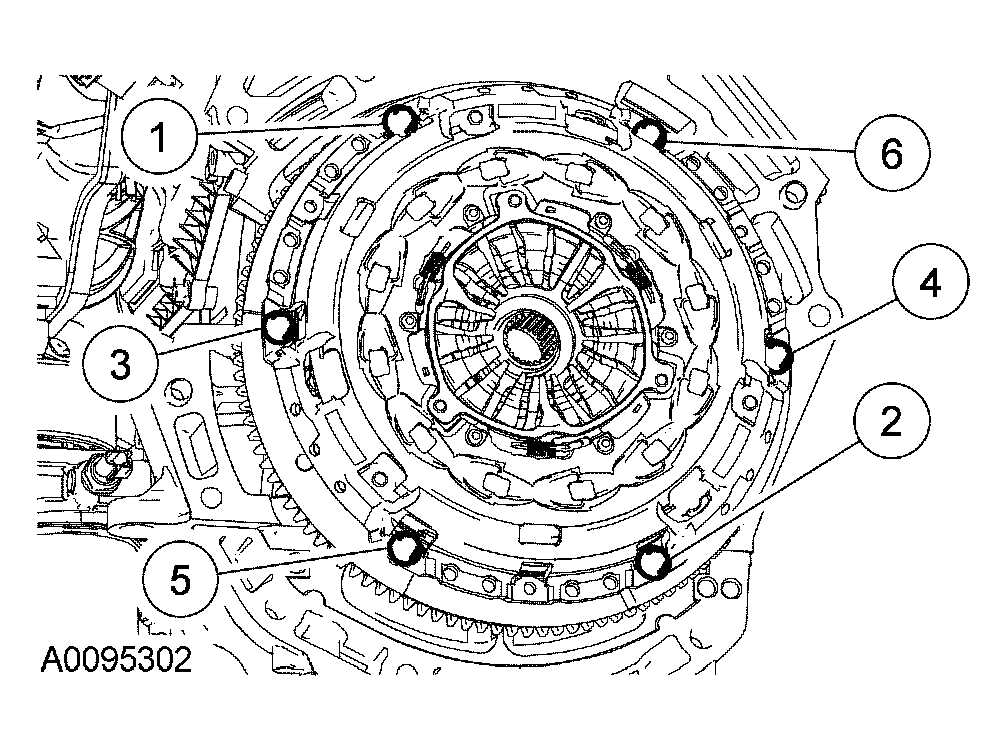

Position the clutch pressure plate on the flywheel and install the clutch pressure plate bolts.
- Tighten to 29 Nm (21 lb-ft) in sequence.

  Fig 2: Installing Clutch Pressure Plate Bolts
  Courtesy of FORD MOTOR CO.
Install the transaxle. For additional information, refer to MANUAL TRANSAXLE-TRANSMISSION .
