Section 18 (Accessory Drive System - 2.3L - (Hybrid))
>>
Description And Operation
>>
Accessory Drive
>>
Notes
Accessory Drive: Notes
WARNING:
This page is about a different variant/trim than selected.

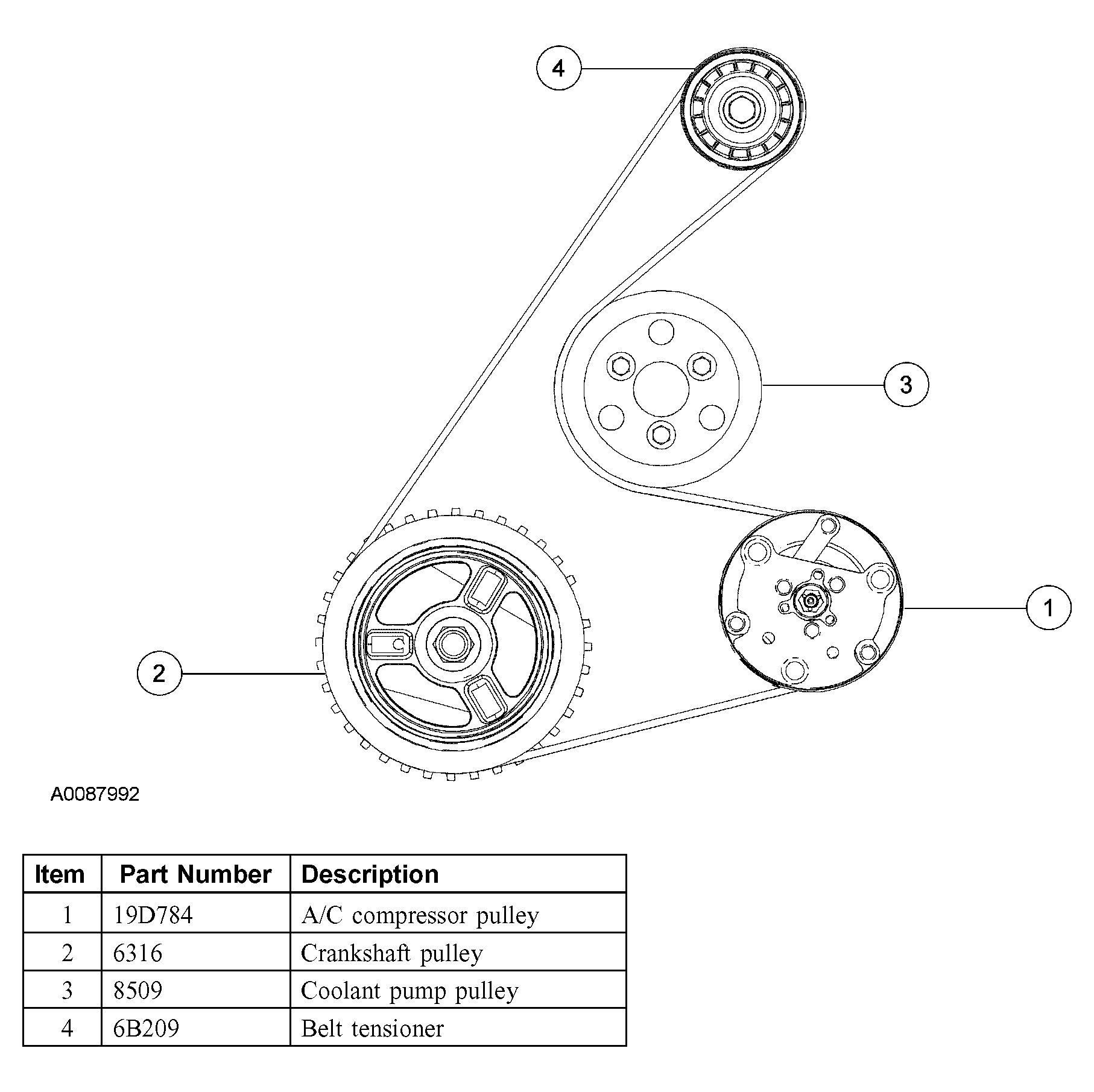

Fig 1: Identifying Accessory Drive Routing (2.3L Engine)
Courtesy of FORD MOTOR CO.
