Front End Accessory Drive (FEAD) - Exploded View

WARNING: This page is about a different variant/trim than selected.

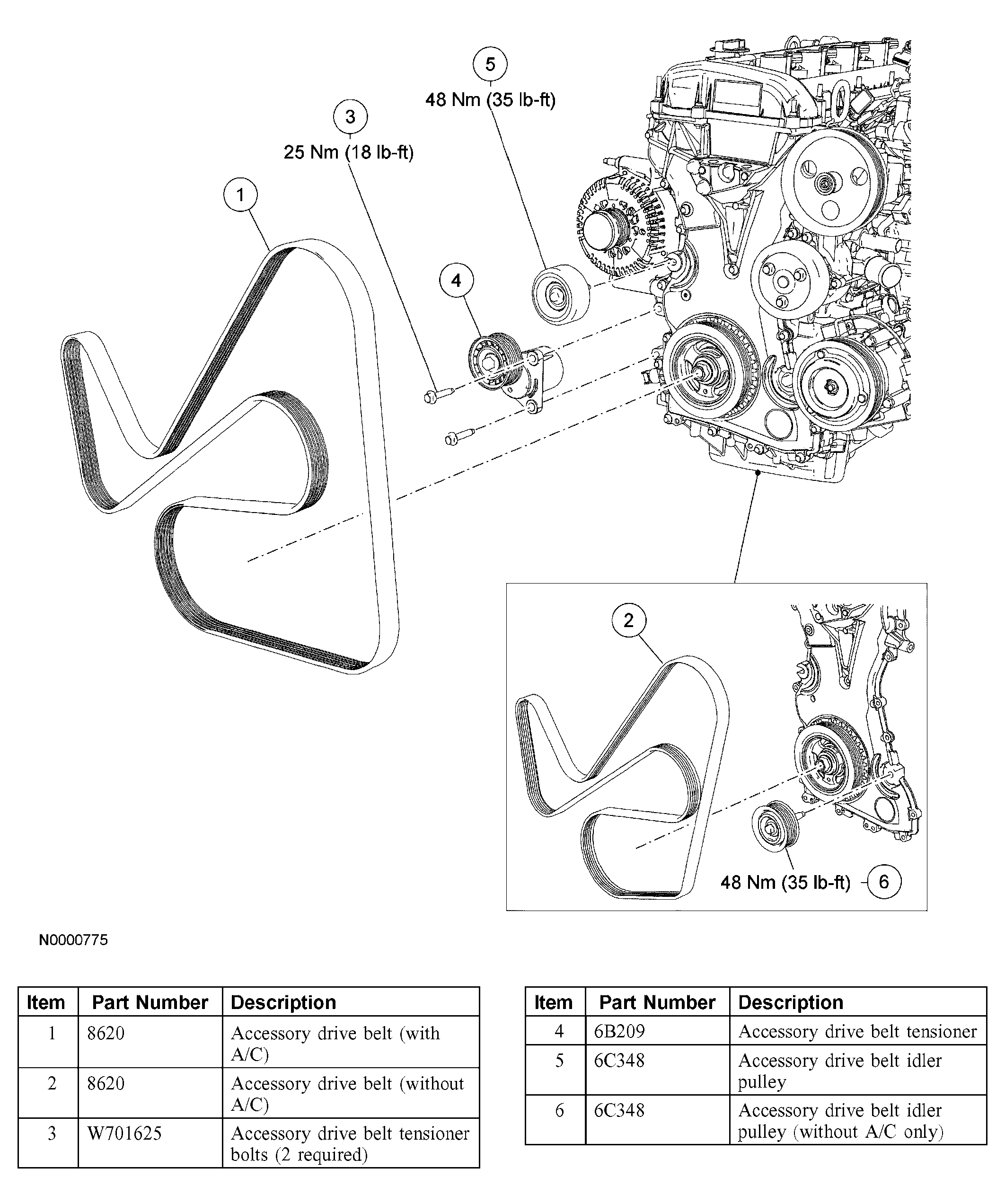

Fig 1: Exploded View Of Front End Accessory Drive With Torque Specifications
G03900396Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
