Accessory Drive: Notes

WARNING: This page is about a different variant/trim than selected.

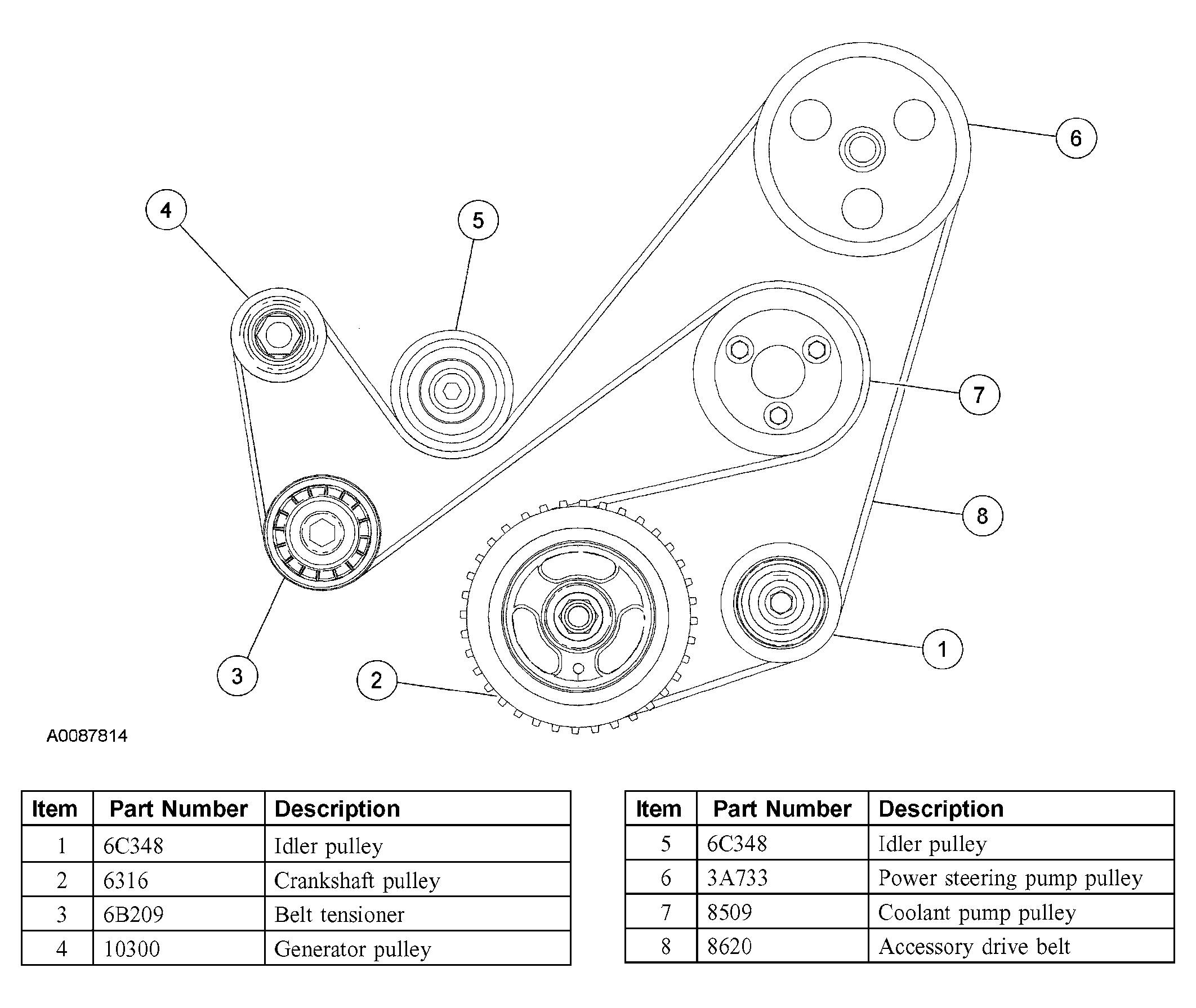

Fig 1: Accessory Drive Belt Routing & Components (2.3L Without A/C)
G03900389Courtesy of FORD MOTOR CO.

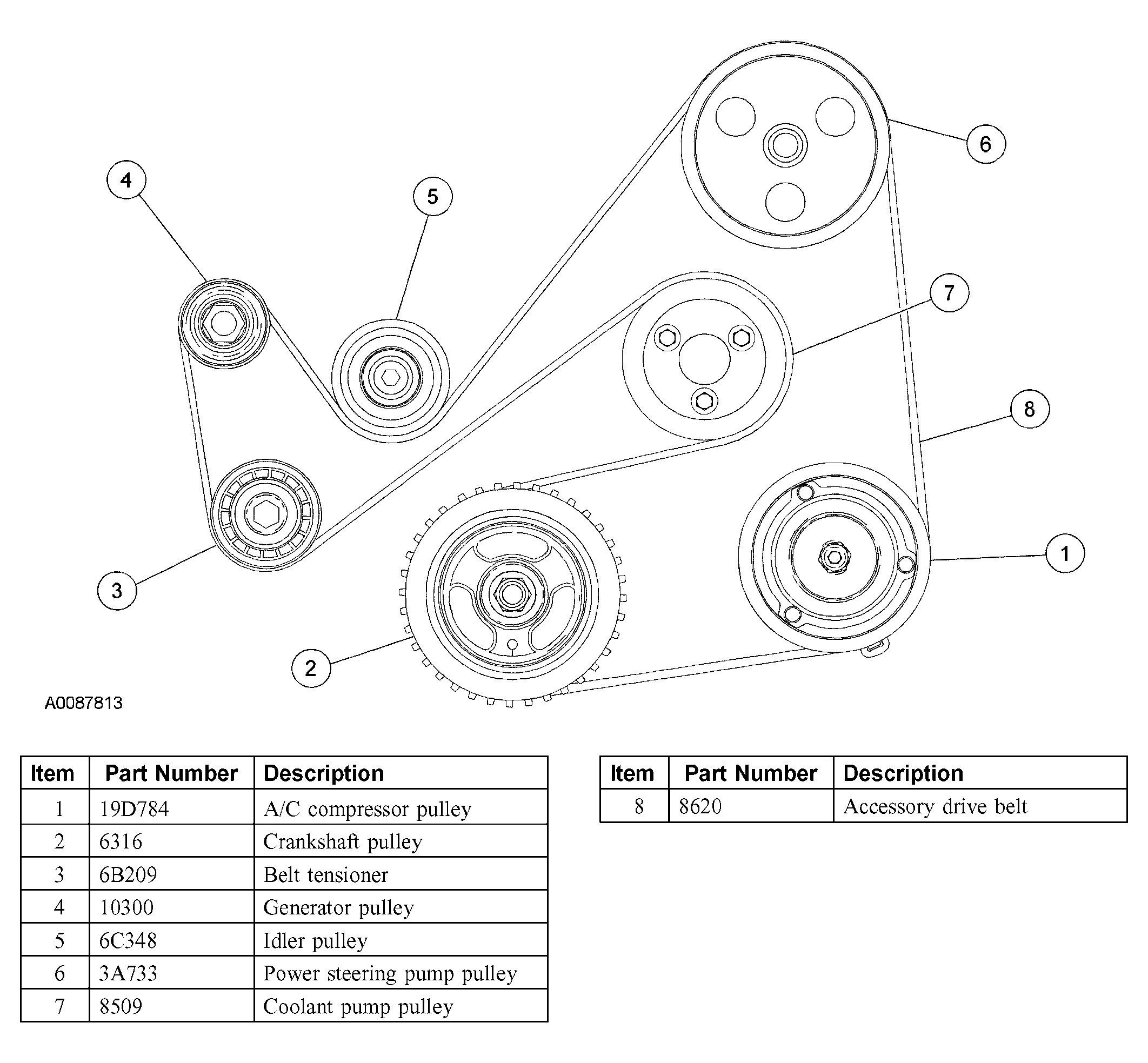

Fig 2: Accessory Drive Belt Routing & Components (2.3L With A/C)
G03900390Courtesy of FORD MOTOR CO.
