Fuel Rail: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the fuel injectors and the retainer clips.
- Position the fuel rail spacers and the fuel rail.
- Install the fuel rail bolts and attach the wiring retainers.
- Tighten to 23 Nm (17 lb-ft).
- Connect the fuel injector electrical connectors.
- Connect the fuel rail pressure and temperature vacuum tube and electrical connector.
- Connect the fuel tube quick release coupling.

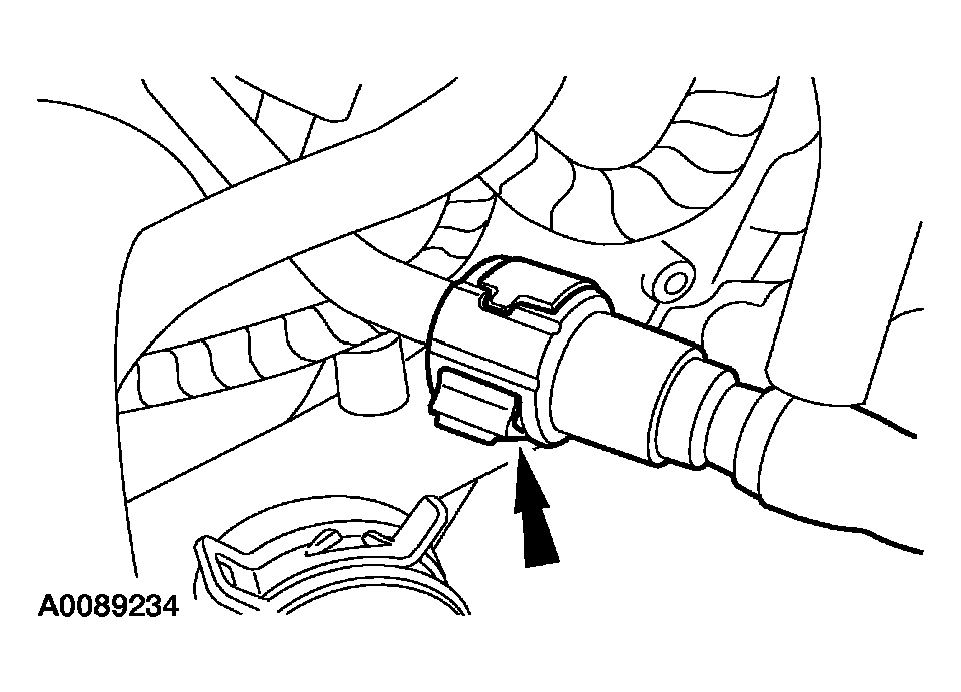

- Connect the quick lock coupling to the tube.
- Press the quick connect coupling locking tangs into position.
- Pull on the fitting to make sure it is fully engaged.
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
CAUTION:
Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
NOTE:
Install new fuel injector O-ring seals and lubricate them with clean engine oil.
NOTE:
Make sure the collar on the fuel tube is inserted fully into the quick release coupling before the locking tang is locked.
NOTE:
Apply clean engine oil to the end of the tube before inserting a tube into the connector.
