Fuel Rail and Injector - Exploded View

WARNING: This page is about a different variant/trim than selected.

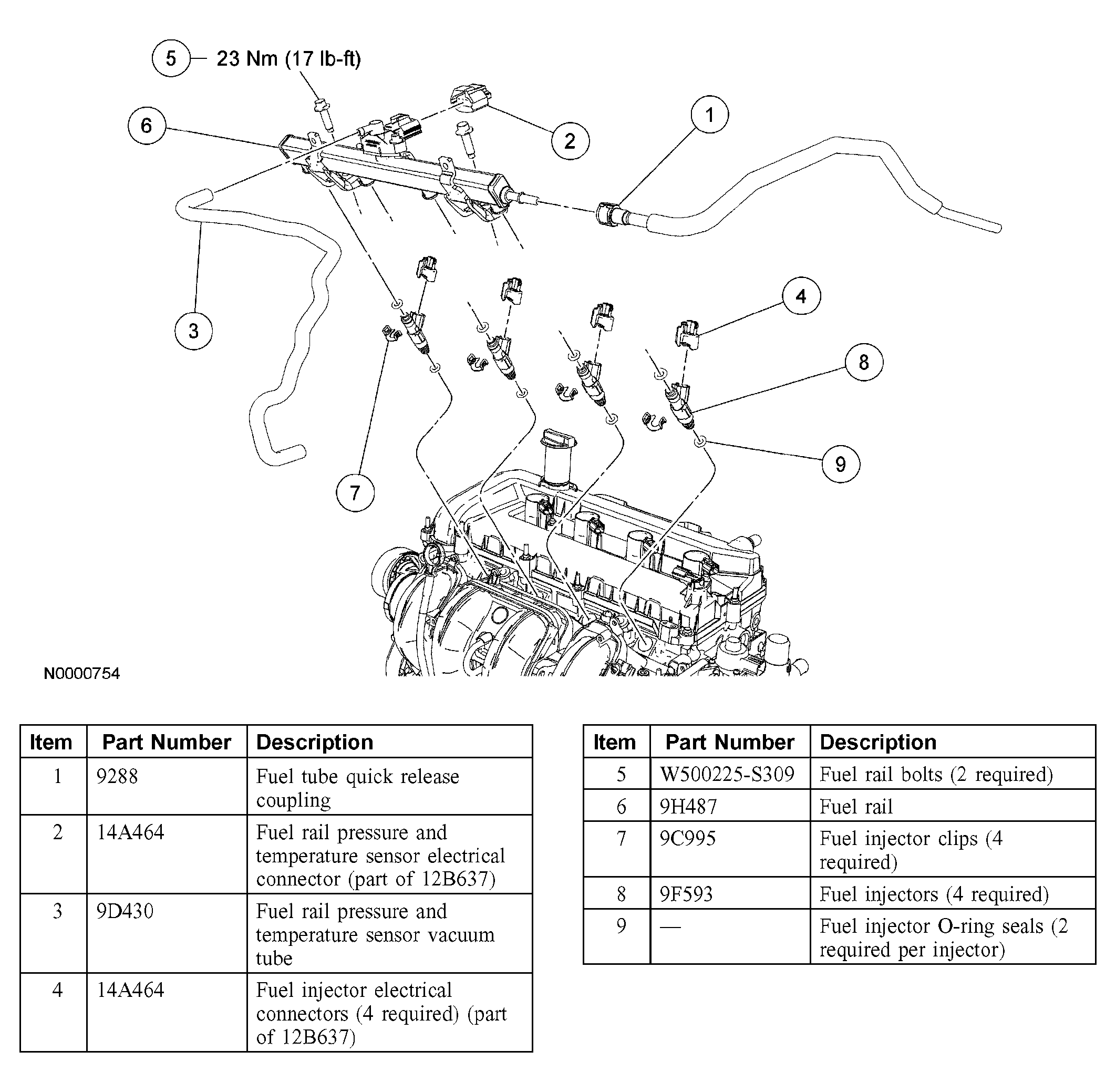

Fig 1: Exploded View Of Fuel Rail And Injector With Torque Specifications
G03900375Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the in this section.
