Spark Plugs: Installation
WARNING: This page is about a different variant/trim than selected.

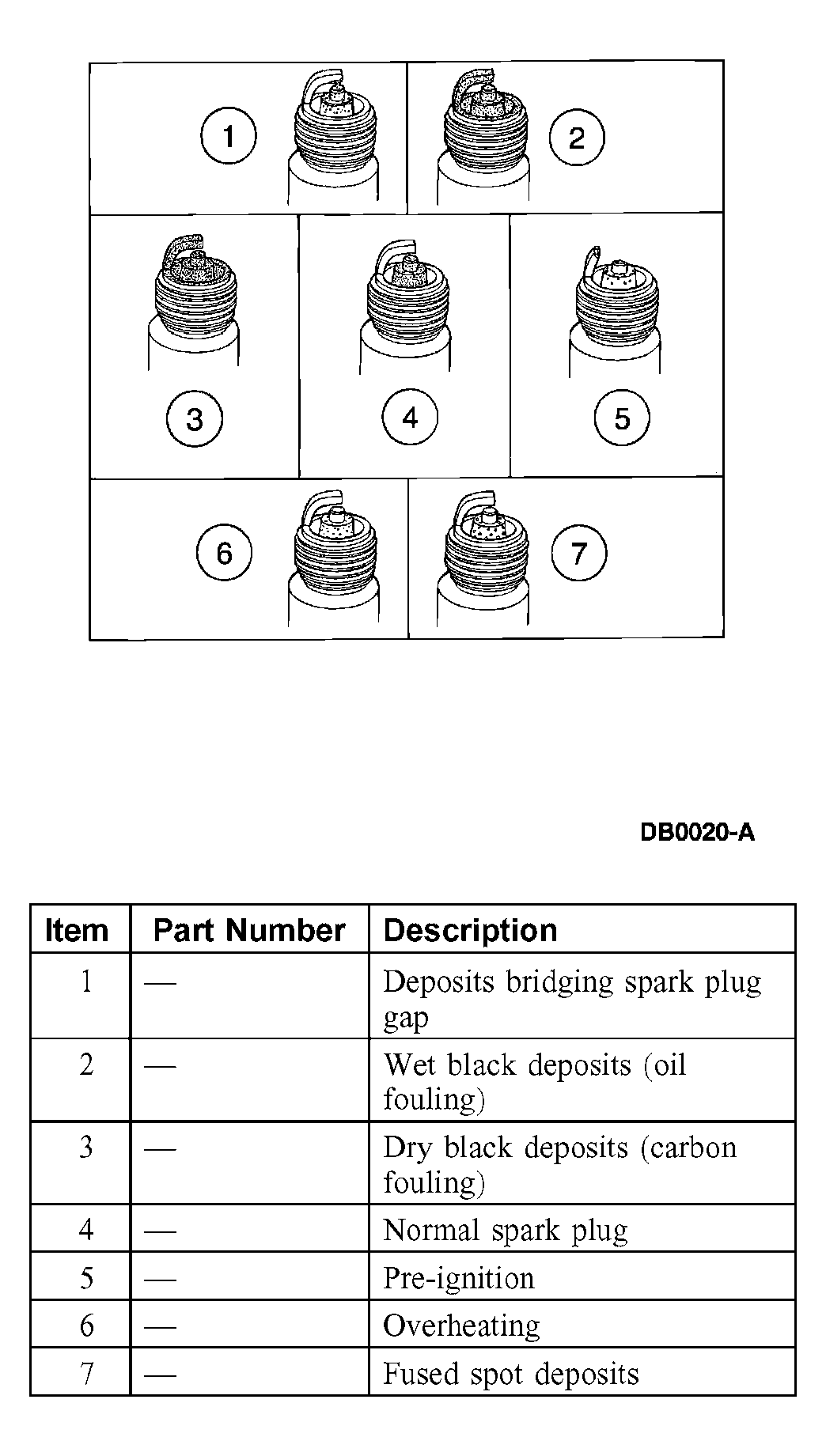

- Inspect the spark plugs.
- Adjust the spark plug gap as necessary.
- Install the spark plugs.
- Tighten to 12 Nm (9 lb-ft).
- Install the ignition coils and bolts.
- Tighten to 10 Nm (89 lb-in).
- Connect the ignition coil electrical connectors.
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
NOTE:
Apply a small amount of dielectric grease to the inside of the ignition coil boots before attaching to the spark plugs.
