Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly.
  2. Support the transaxle with a suitable floor jack.
  3. Remove the bolts and the bracket.
    • To install, tighten to 25 Nm (18 lb-ft).
      Fig 1: Removing Bolts And Bracket
      G03898859Courtesy of FORD MOTOR CO.
  4. Remove the nuts, bolt and the insulator.
    • To install, tighten the nuts to 90 Nm (66 lb-ft).
    • To install, tighten the bolt to 90 Nm (66 lb-ft).

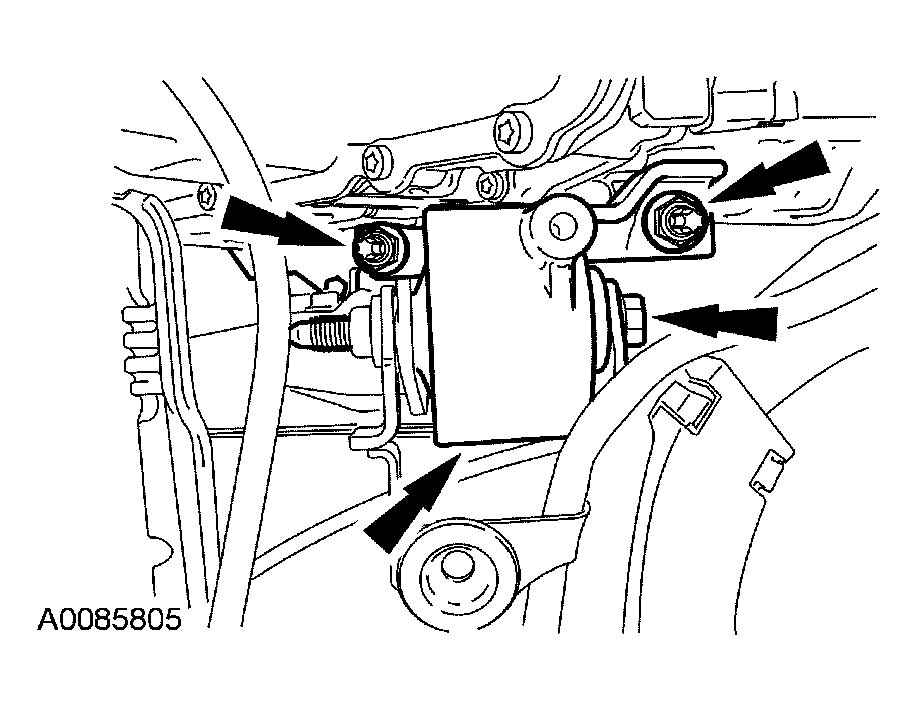

      Fig 2: Removing Nuts, Bolt And Insulator
      G03901437Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
