Removal and Installation

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Install the special tools.

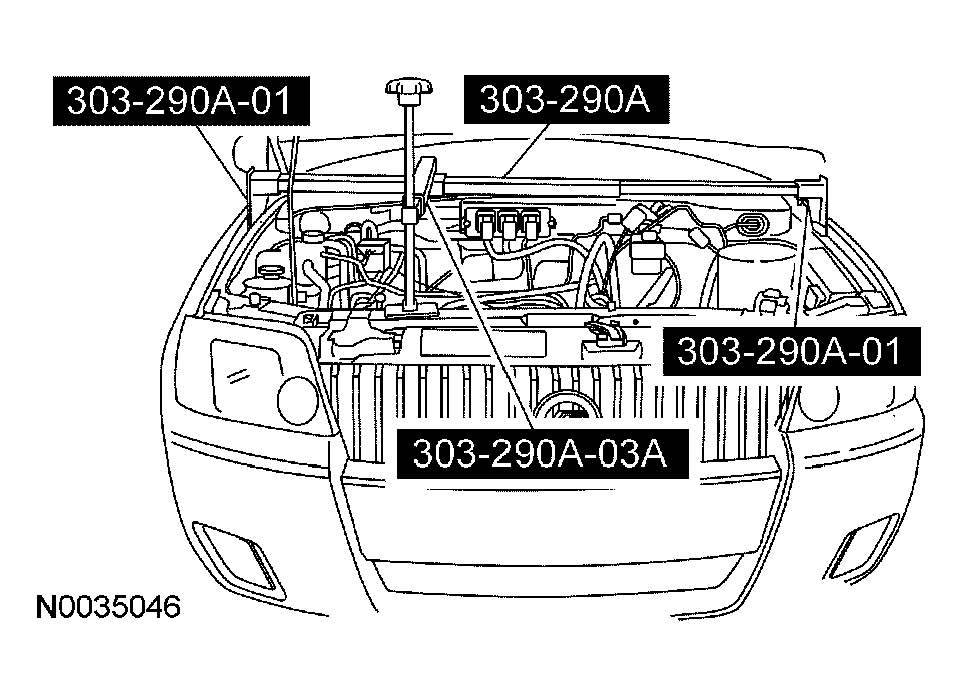

Fig 1: Removing/Installing Special Tools
Courtesy of FORD MOTOR CO.
Install the special tool.

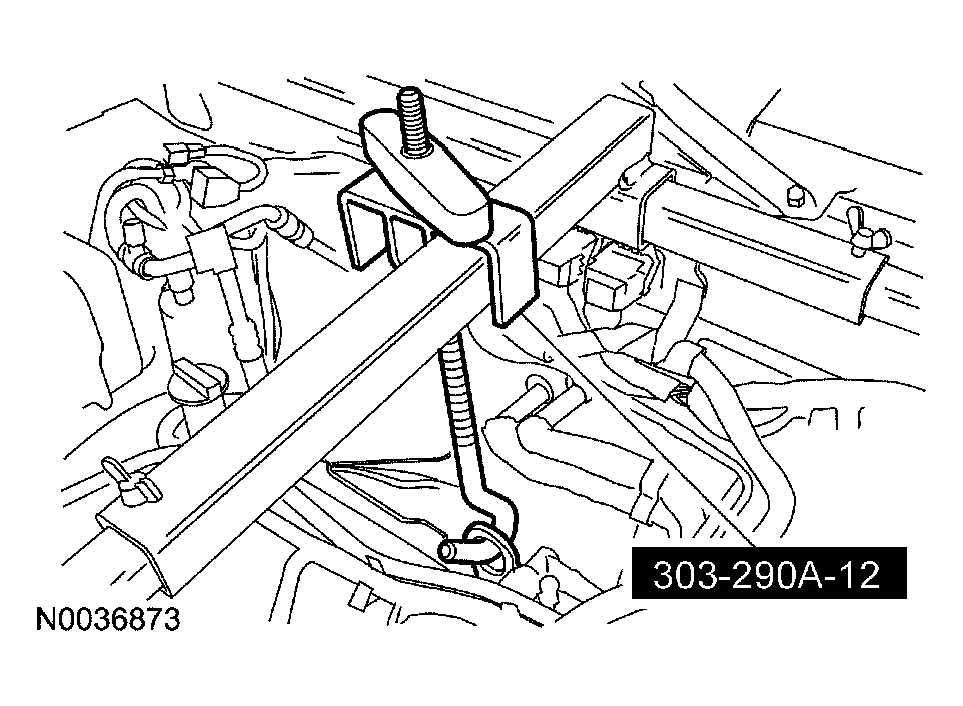

Fig 2: Installing Special Tool
Courtesy of FORD MOTOR CO.
Disconnect the heater hose retaining clip from the transaxle mount stud.

Fig 3: Disconnecting Heater Hose Retaining Clip From Transaxle Mount Stud
Courtesy of FORD MOTOR CO.
Remove insulator nut.
- To install, tighten to 90 Nm (66 lb-ft).

  Fig 4: Removing Insulator Nut
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the bracket.
- To install, tighten to 90 Nm (66 lb-ft).

  Fig 5: Removing Bolts And Bracket
  Courtesy of FORD MOTOR CO.
Remove the nuts, heat shield, and insulator.
- To install, tighten to 90 Nm (66 lb-ft).

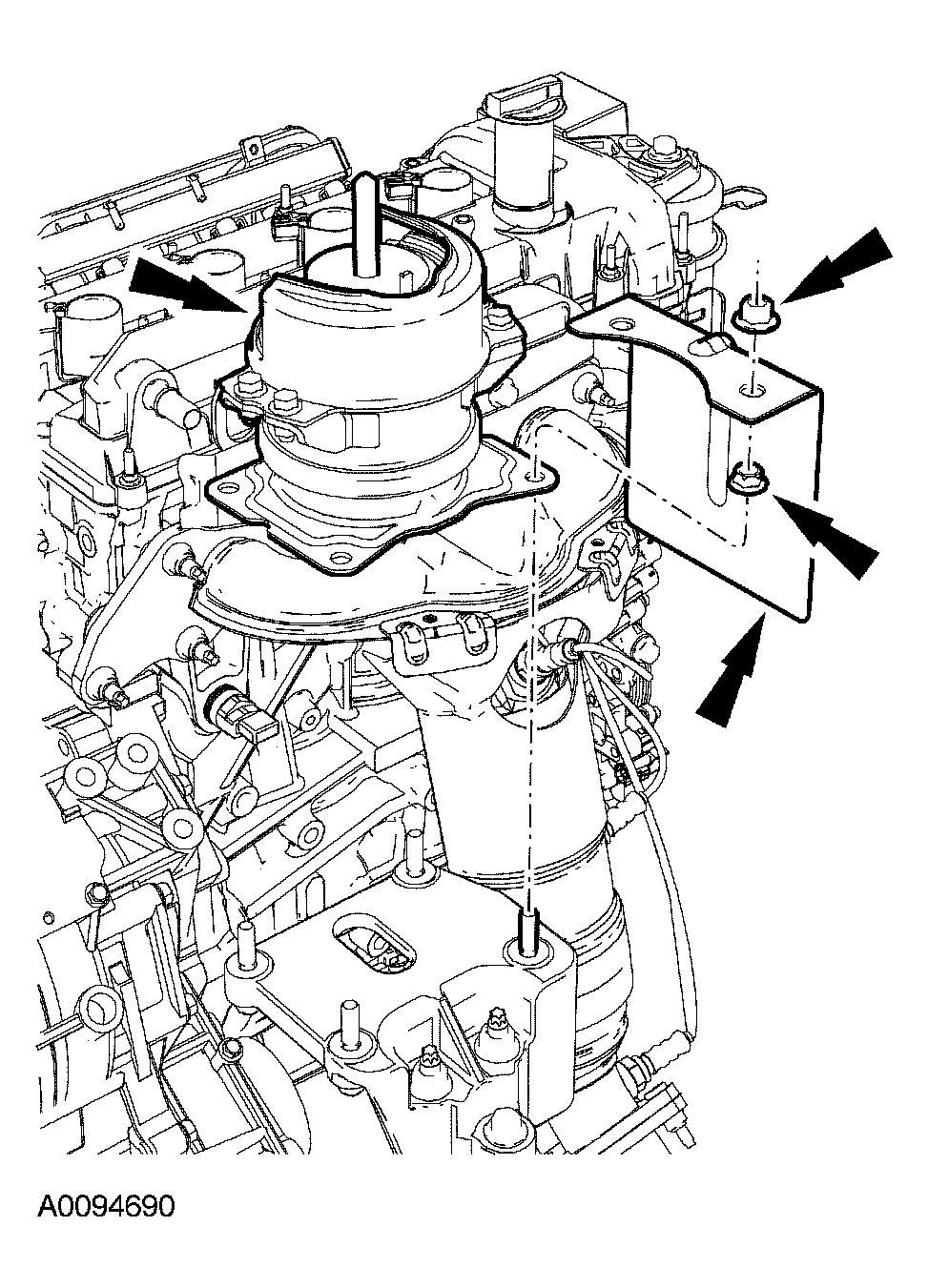

  Fig 6: Removing Nuts, Heat Shield, And Insulator
  Courtesy of FORD MOTOR CO.
Remove the vacuum hose from the bottom of the insulator.

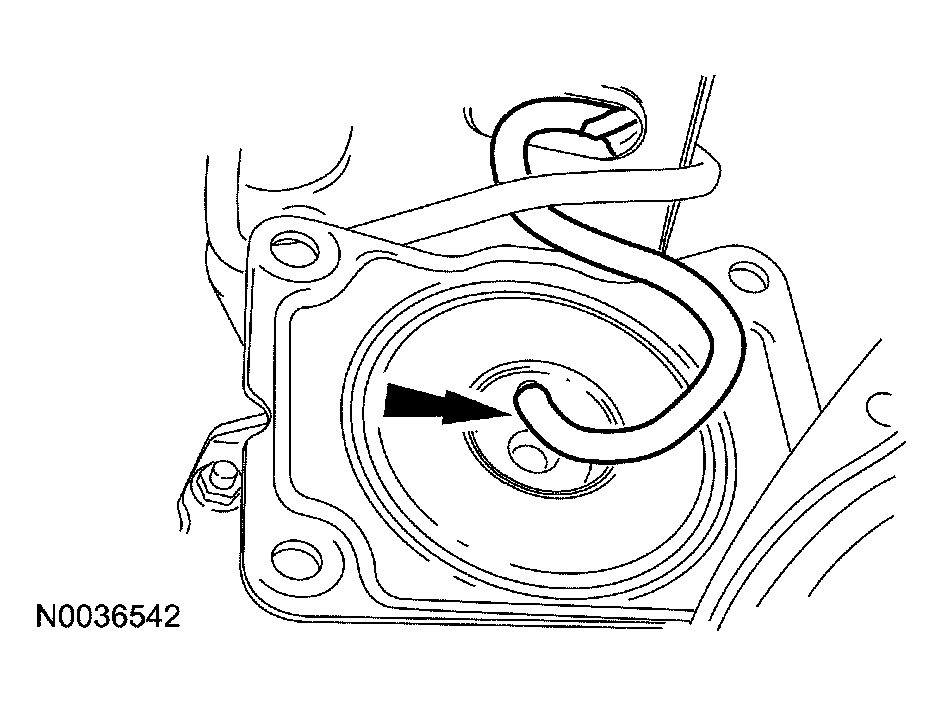

Fig 7: Removing Vacuum Hose From Bottom Of Insulator
Courtesy of FORD MOTOR CO.

NOTE: The new rear transmission does not have or use the vacuum hose. The vacuum port will need to be plugged off.

Fig 8: Removing And Discard Vacuum Hose From Vacuum Solenoid

Courtesy of FORD MOTOR CO.

Remove and discard the vacuum hose from the vacuum solenoid.
Install the protective cap on the top port of the vacuum solenoid.

Fig 9: Installing Protective Cap On Top Port Of Vacuum Solenoid
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
