Transmission Insulator and Retainer - Exploded View

WARNING: This page is about a different variant/trim than selected.

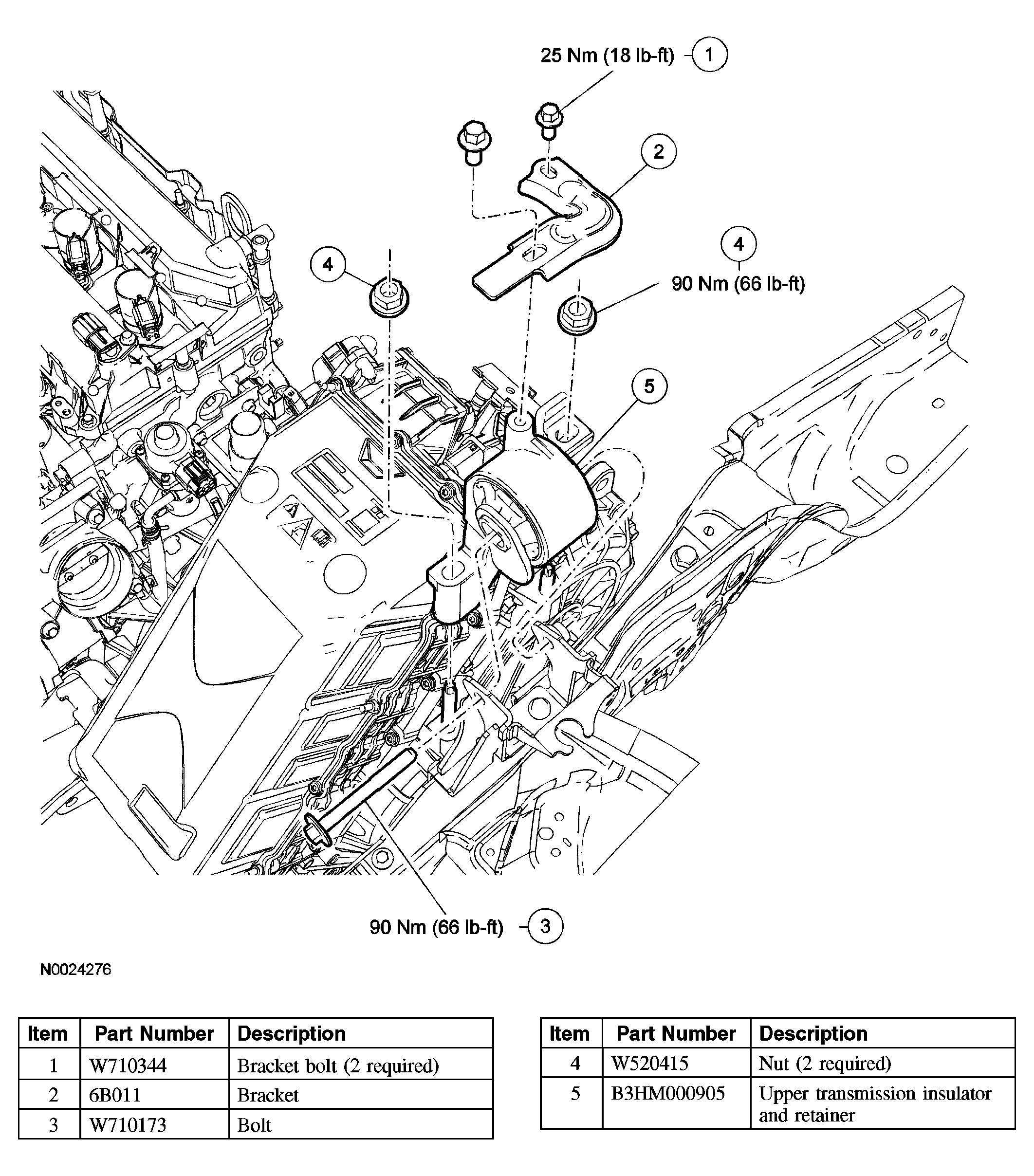

Fig 1: Transmission Insulator And Retainer -- Upper With Torque Specifications
G03901433Courtesy of FORD MOTOR CO.
Fig 2: Transmission Insulator And Retainer -- Rear With Torque Specifications
G03901434Courtesy of FORD MOTOR CO.

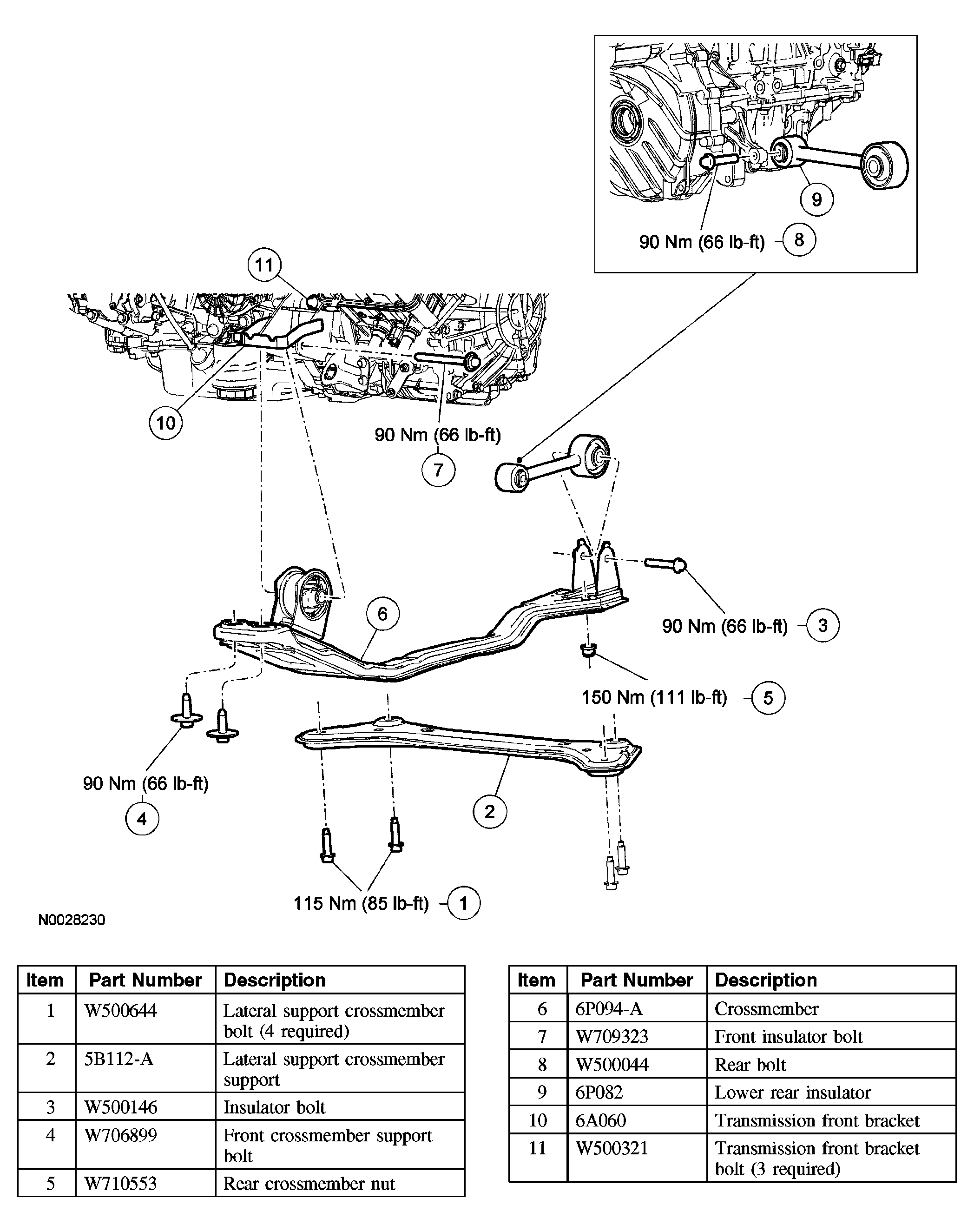

Fig 3: Transmission Insulator And Retainer -- Lower With Torque Specifications
G03901435Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the PROCEDURES .
