Differential Seals - RH: Installation
WARNING: This page is about a different variant/trim than selected.
- Using the special tool, install the RH differential seal.
- Install the RH halfshaft.

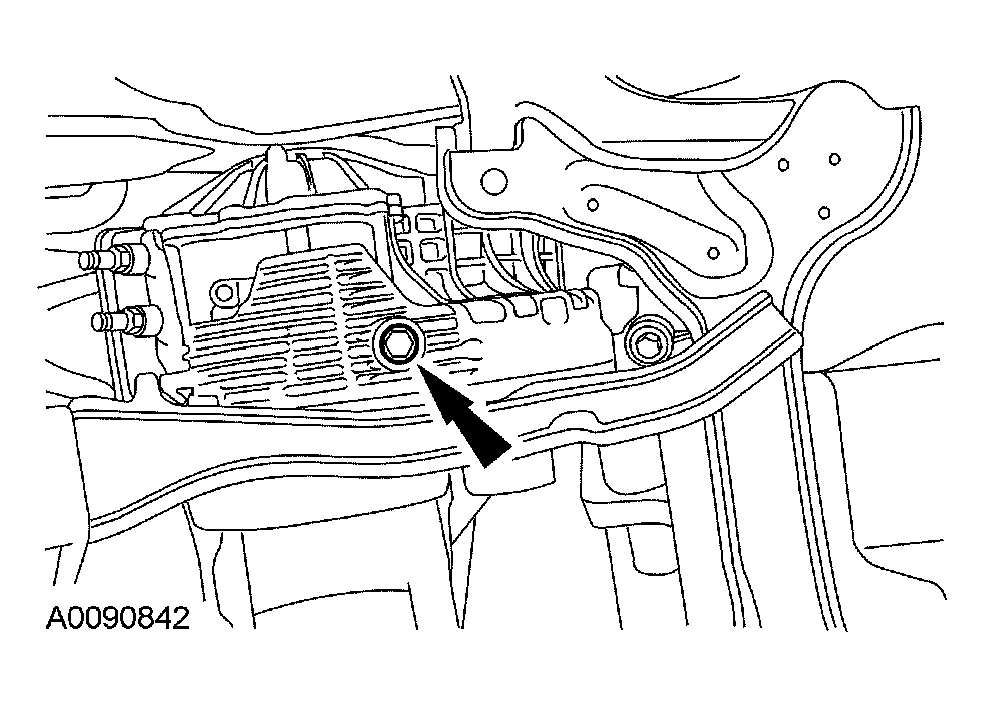

- Using a small amount of pipe sealant on threads, install the transaxle drain plug.
- Tighten to 40 Nm (30 lb-ft).

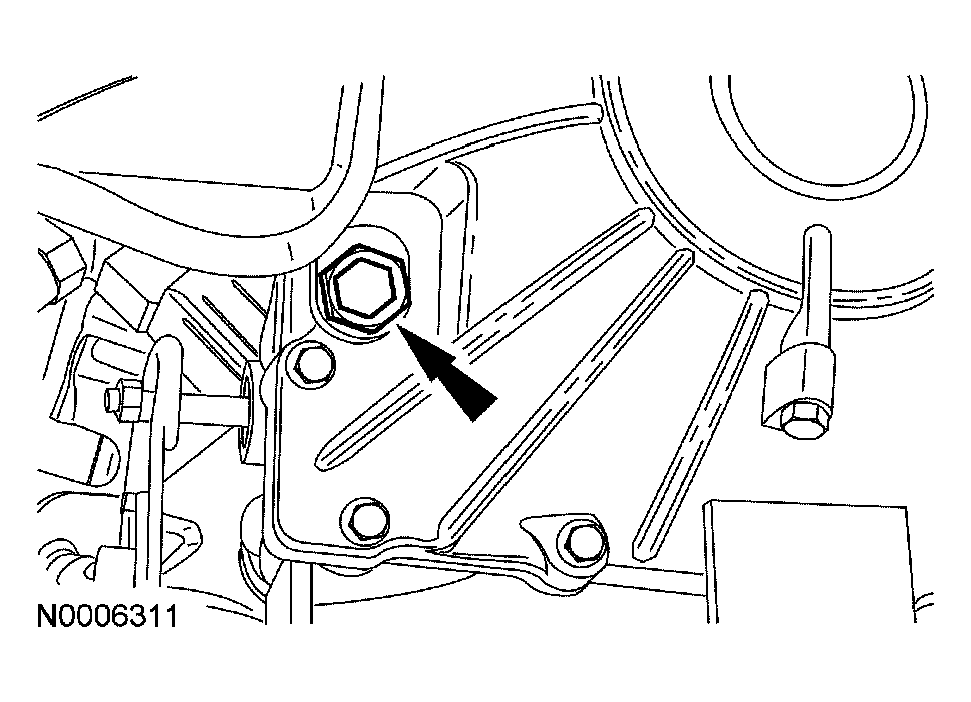

- Remove the fill plug on the side of the transaxle.
- Fill the transaxle with clean automatic transmission fluid as specified until the level reaches the bottom of the fill plug hole.
- Install the fill plug.
- Tighten to 40 Nm (30 lb-ft).
- Start the engine and check for correct forward and reverse operation.
NOTE:
Clean the area around the fill plug for transmission fluid that may have spilled on the transaxle case.
NOTE:
The check and fill plug is located on the left side of the transaxle near the front.
NOTE:
The transaxle fluid is checked and filled by removing the plug and adding fluid until it runs out.
