Motor Electronics Cooling System

WARNING: This page is about a different variant/trim than selected.

The vehicle uses a pump driven cooling system (referred to as the motor electronics cooling system) to transfer heat generated by the CVT and the hybrid electric vehicle (HEV) battery pack to the atmosphere. The system uses a coolant-to-air radiator design.

The motor/electronics cooling system has the following components:

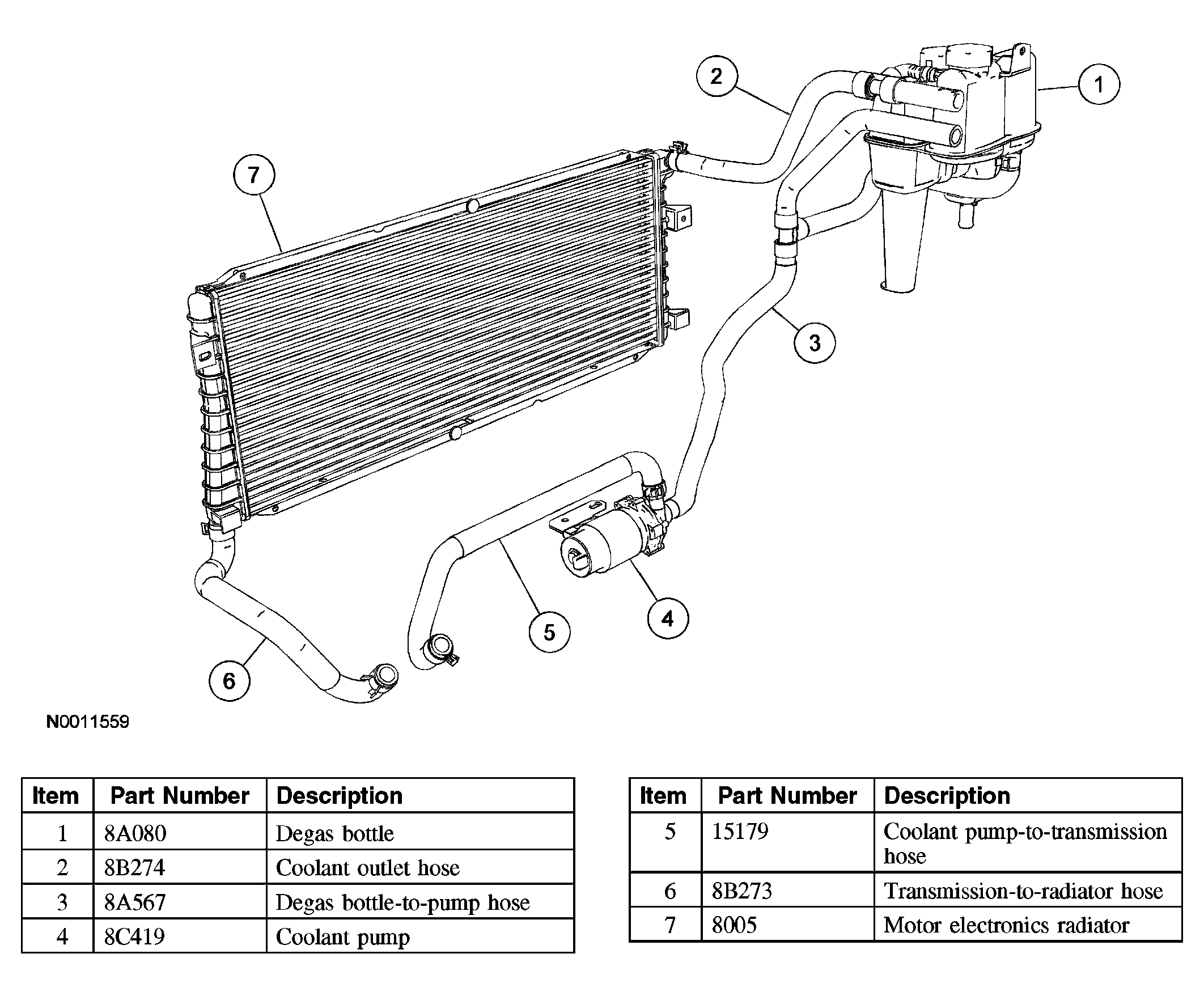

Fig 1: Identifying Motor/Electronics Cooling System And Component
G03901410Courtesy of FORD MOTOR CO.
