Section 10 (Electronic Engine Control System - 2.3L - (Except Hybrid))
>>
Removal And Installation
>>
Throttle Position (TP) Sensor
>>
Notes
Throttle Position (TP) Sensor: Notes
WARNING:
This page is about a different variant/trim than selected.

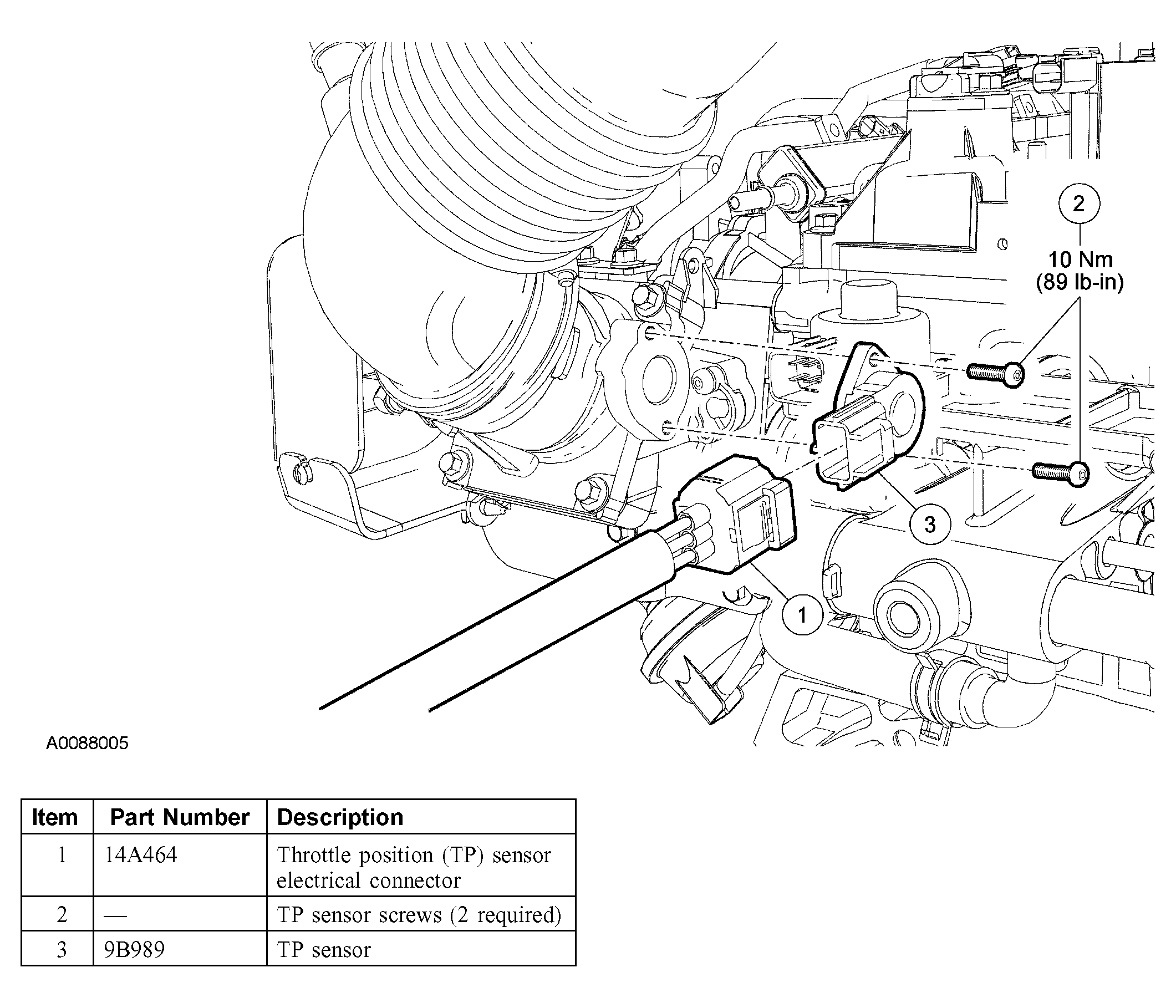

Fig 1: Throttle Position (TP) Sensor With Torque Specifications
Courtesy of FORD MOTOR CO.
