Section 10 (Electronic Engine Control System - 2.3L - (Except Hybrid))
>>
Removal And Installation
>>
Idle Air Control (IAC) Valve
>>
Notes
Idle Air Control (IAC) Valve: Notes
WARNING:
This page is about a different variant/trim than selected.

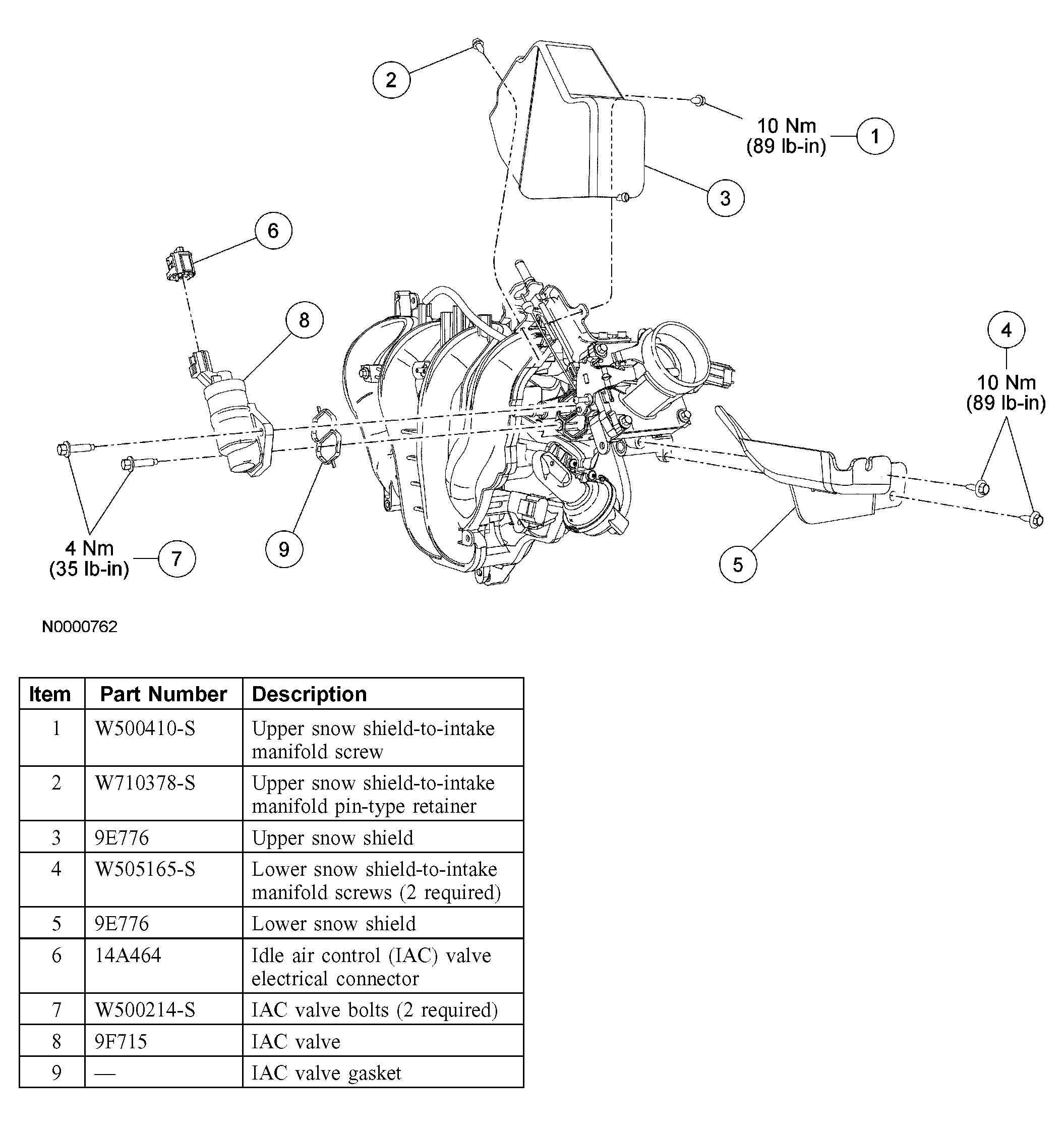

Fig 1: Idle Air Control (IAC) Valve With Torque Specifications
Courtesy of FORD MOTOR CO.
