Fuel Rail Pressure and Temperature Sensor: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

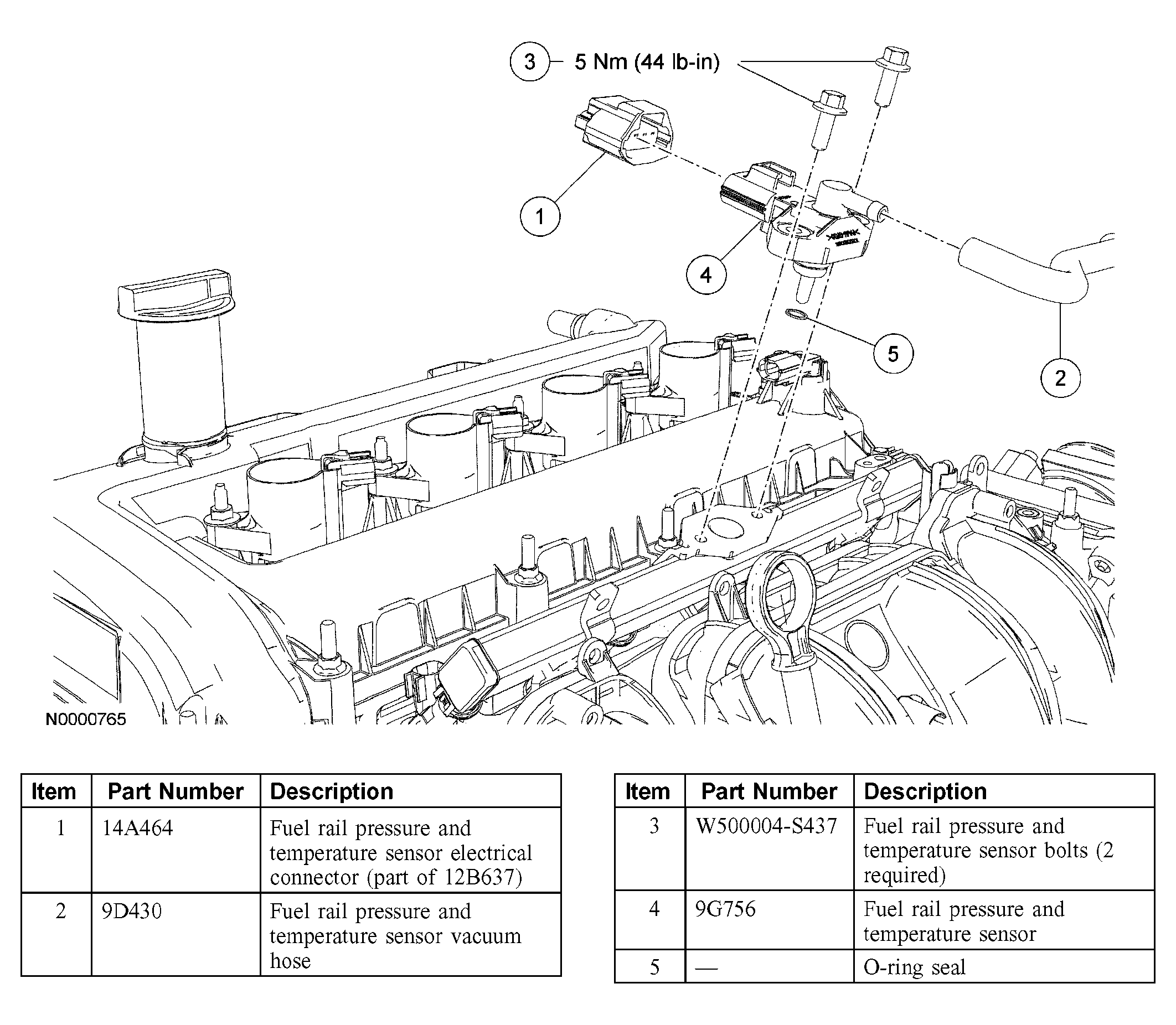

Fig 1: Removing Fuel Rail Pressure And Temperature Sensor With Torque Specifications
G03900491Courtesy of FORD MOTOR CO.
