Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
CRANKSHAFT POSITION SENSOR SPECIAL TOOL

G03897953
 Timing Peg, Crankshaft 303-507

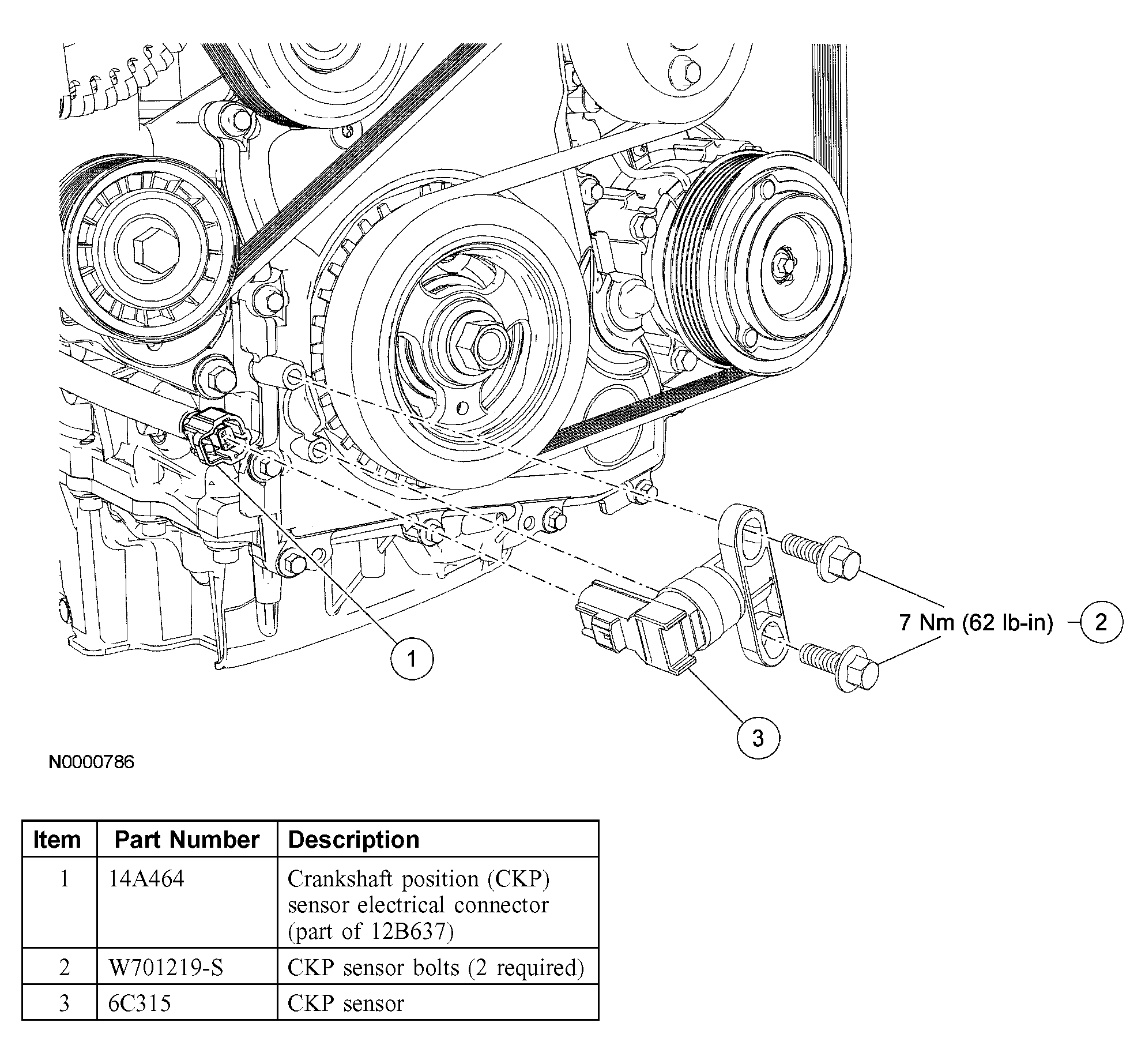

Fig 1: Removing Crankshaft Position (CKP) Sensor With Torque Specifications
G03900477Courtesy of FORD MOTOR CO.
