Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Only hand-tighten the bolt or damage to the front cover can occur.

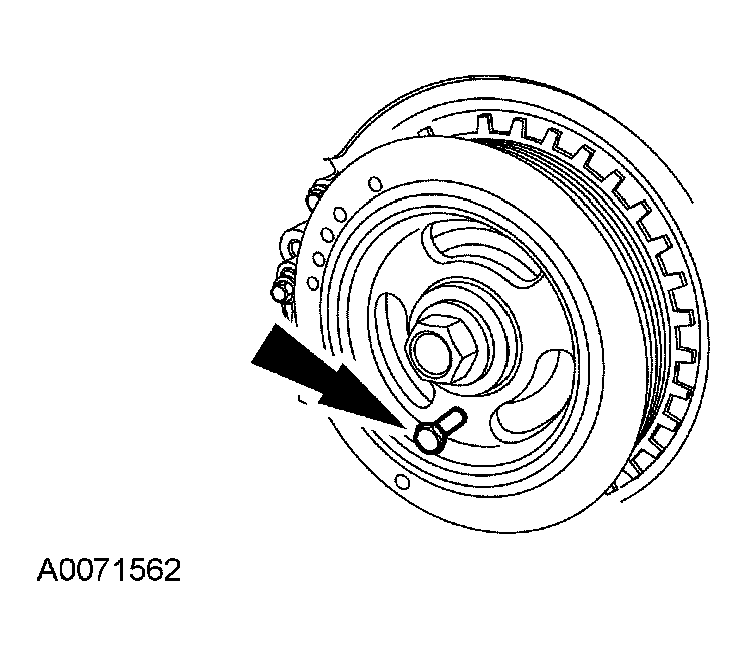

    Fig 1: Locating Bolt
    G03900480Courtesy of FORD MOTOR CO.
  1. Install a 6-mm (0.23-in) x 18-mm (0.7-in) standard bolt in the crankshaft pulley.
  2. Install the CKP sensor and the bolts.
    • Do not tighten the bolts at this time.
    3. NOTE: The CKP sensor alignment tool is supplied with the new sensor and is not available separately
  3. Adjust the CKP sensor with the alignment jig.
    • Tighten to 7 Nm (62 lb-in).
  4. Connect the CKP sensor electrical connector.
  5. Remove the 6-mm (0.23-in) bolt from the crankshaft pulley.
  6. Install the plug.
    • Tighten to 10 Nm (89 lb-in)
  7. Install the RH splash shield and the 5 bolts.
    • Tighten to 9 Nm (80 lb-in).
  8. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
