Camshaft Position (CMP) Sensor: Material

WARNING: This page is about a different variant/trim than selected.
CAMSHAFT POSITION SENSOR MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

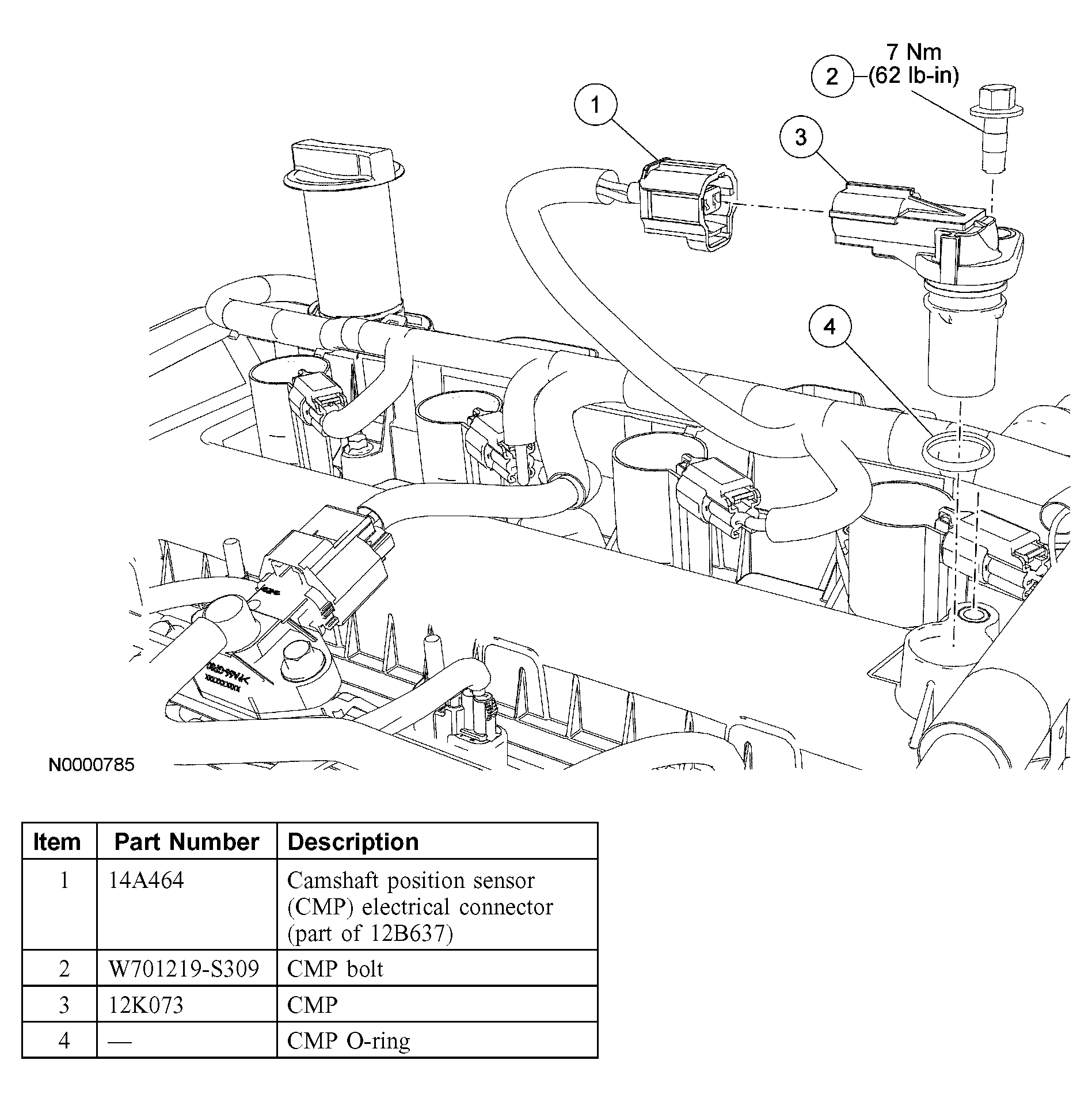

Fig 1: Locating Camshaft Position Sensor With Torque Specifications
G03900475Courtesy of FORD MOTOR CO.
