Stub Shaft Pilot Bearing and Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the halfshaft assembly. For additional information, refer to REAR DRIVE HALFSHAFTS .
  2. To remove the seal only, use the special tool to remove the stub shaft seal.

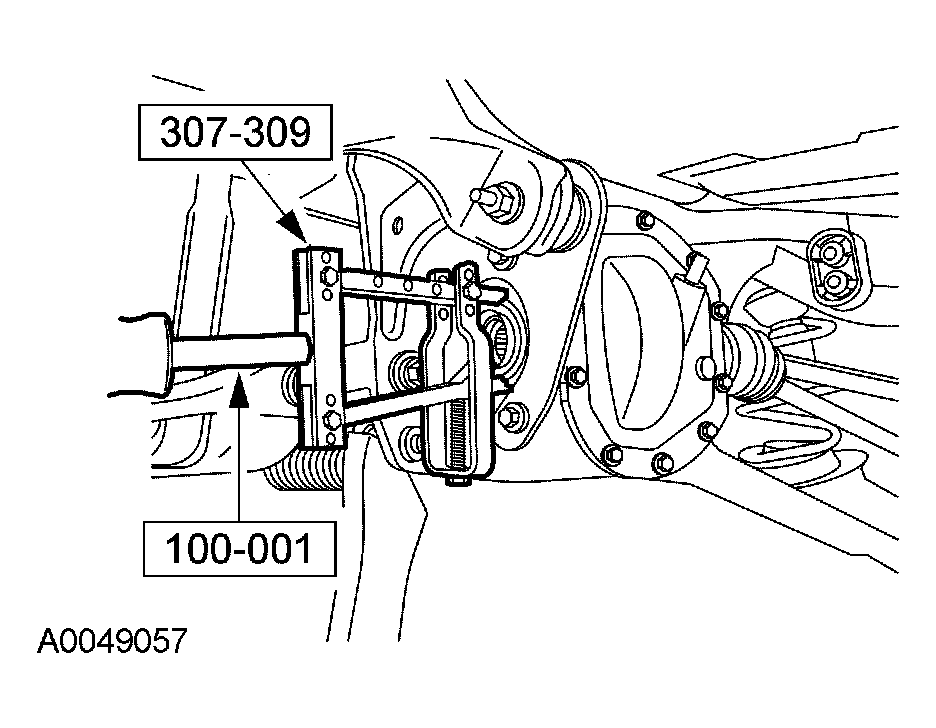

    Fig 1: Removing Stub Shaft Seal
    G03897350Courtesy of FORD MOTOR CO.
  3. To remove the bearing and seal, use the special tools to remove the stub shaft pilot bearing and seal.

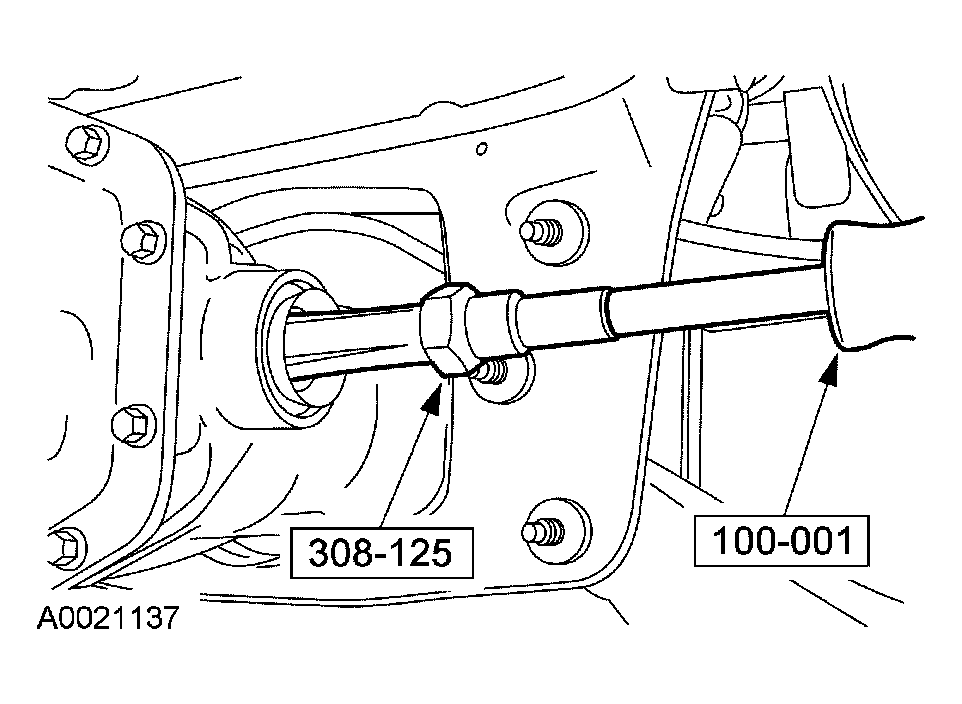

    Fig 2: Removing Stub Shaft Pilot Bearing And Seal
    G03897351Courtesy of FORD MOTOR CO.
