Stub Shaft Pilot Bearing and Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Lubricate the new stub shaft pilot bearing with rear axle lubricant.

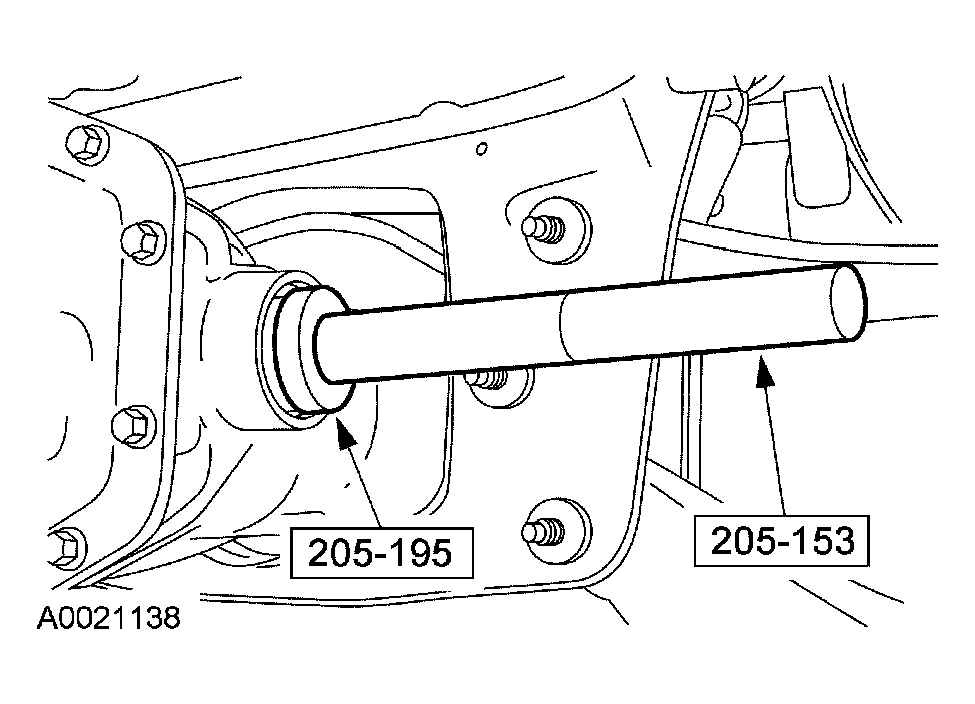

    Fig 1: Installing Stub Shaft Pilot Bearing
    G03897352Courtesy of FORD MOTOR CO.
  1. To install the bearing, use the special tools and install the stub shaft pilot bearing.
    2. NOTE: Lubricate the new stub shaft pilot bearing housing seal with grease.

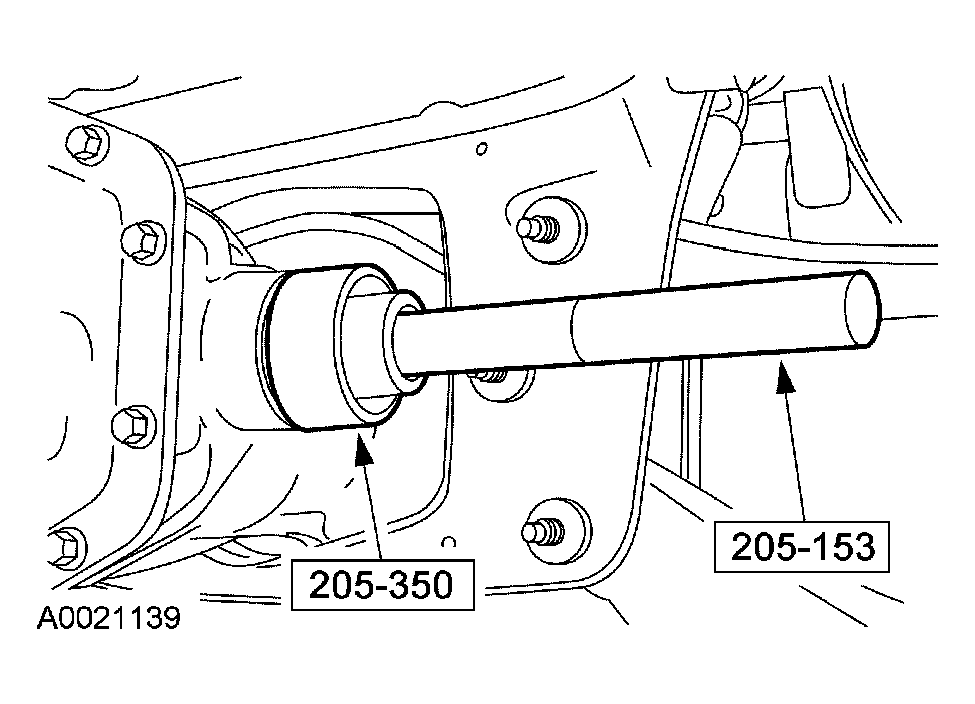

    Fig 2: Installing Stub Shaft Pilot Bearing Housing Seal
    G03897353Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the stub shaft pilot bearing housing seal.
    3. CAUTION: Inspect the inboard CV joint seal journal for rust or nicks/scratches prior to installing the halfshaft. If necessary, polish the seal journal with fine crocus cloth.
  3. Install the halfshaft assembly. For additional information, refer to REAR DRIVE HALFSHAFTS .
