Drive Pinion Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Make sure that the mating surface is clean before installing the new seal.

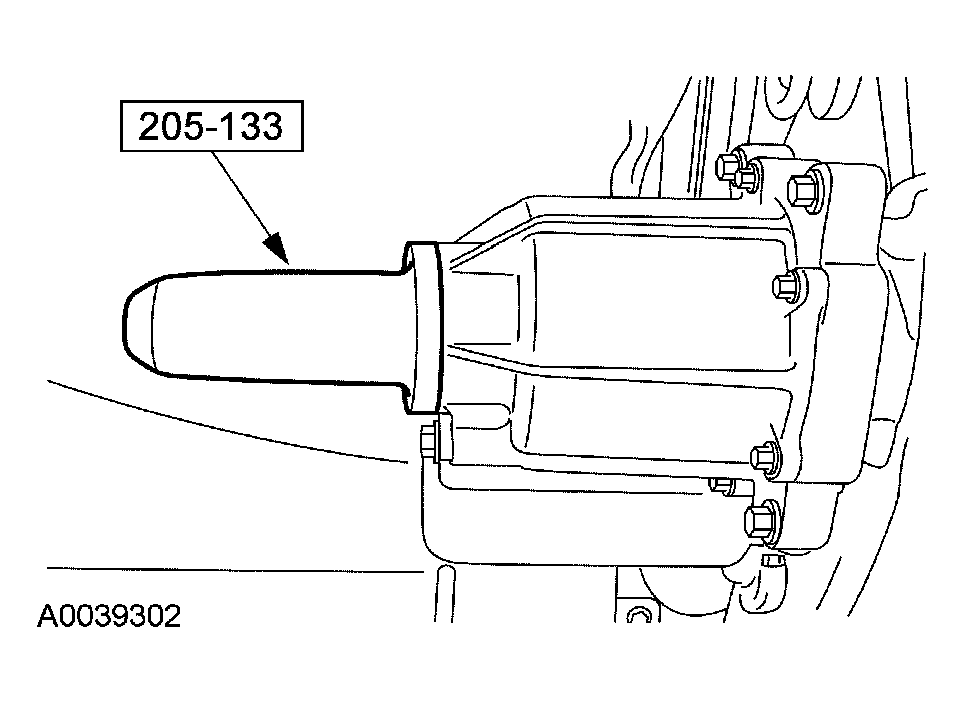

    Fig 1: Installing Seal
    G03897364Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the seal.
    2. NOTE: Lubricate the pinion flange with premium long-life grease.

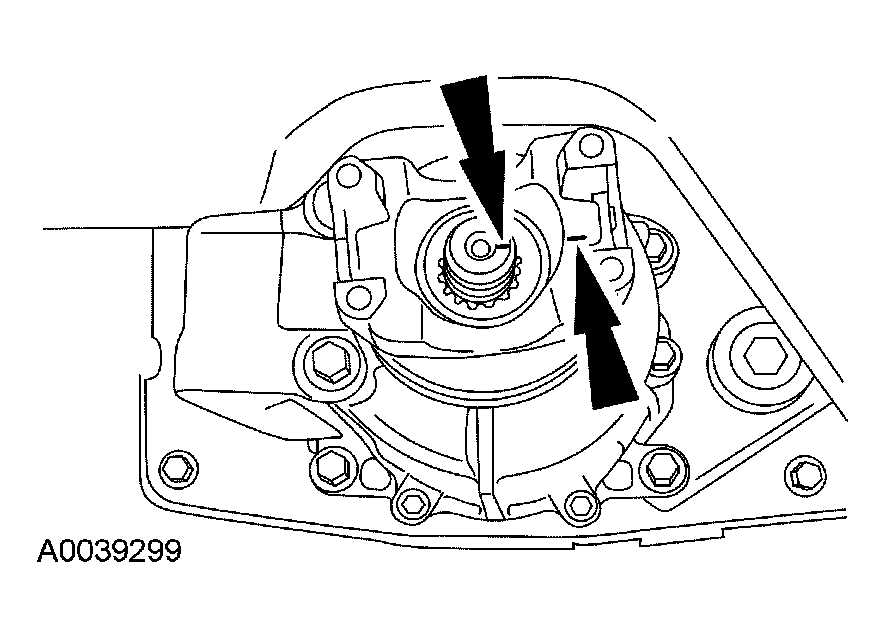

    Fig 2: Aligning Index Marks And Installing Pinion Flange
    G03897361Courtesy of FORD MOTOR CO.
  2. Line up the index marks and position the pinion flange.
  3. Using the special tool, install the pinion nut.
    • Tighten to 244 Nm (180 lb-ft).

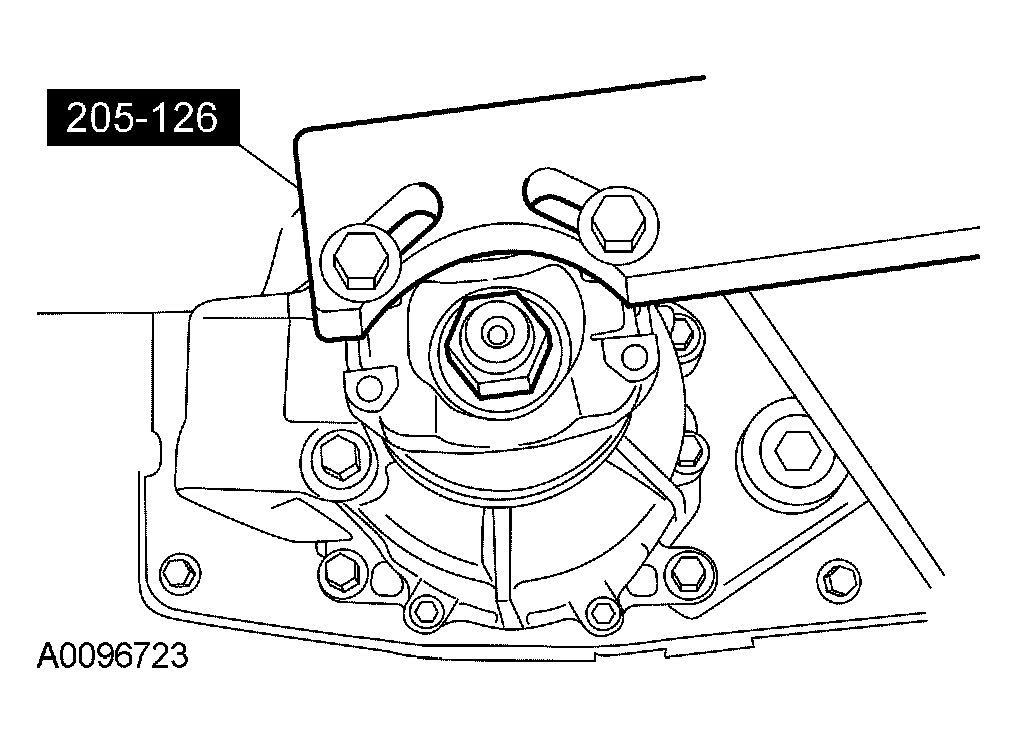

      Fig 3: Tightening Pinion Nut
      G03897366Courtesy of FORD MOTOR CO.
  4. Line up the index marks and install the rear driveshaft universal joint.
    • Install the 2 cap straps and the 4 bolts.
    • Tighten to 23 Nm (17 lb-ft).

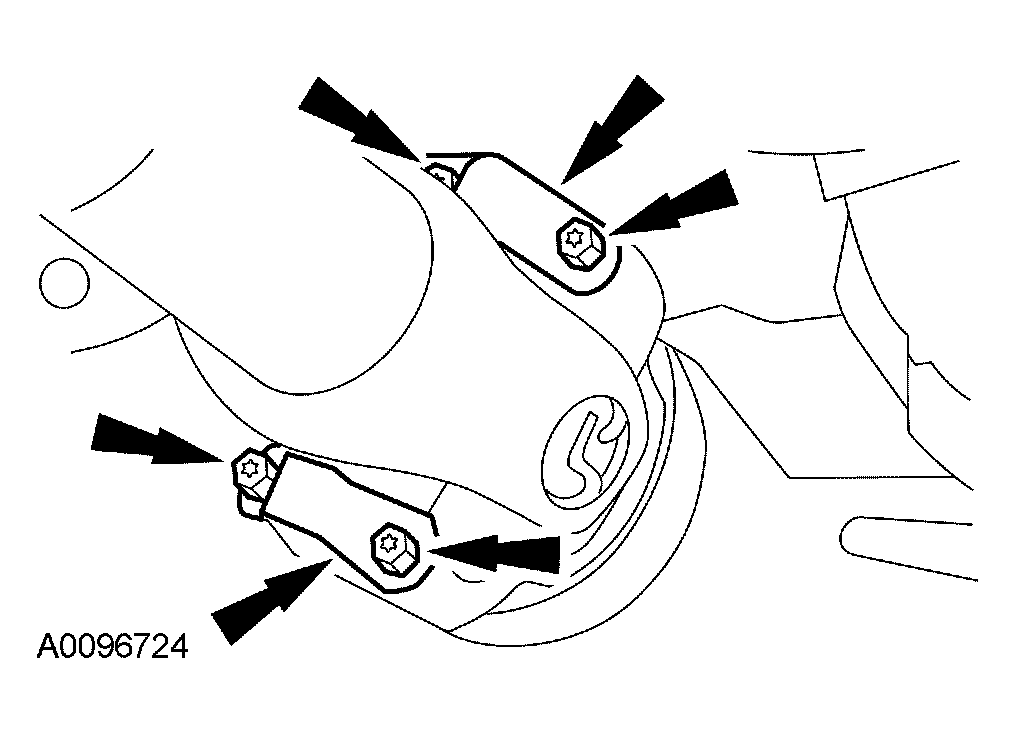

      Fig 4: Installing Rear Driveshaft Universal Joint
      G03897367Courtesy of FORD MOTOR CO.
