Differential Housing Cover: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean the gasket mating surfaces of the differential housing and the differential housing cover.

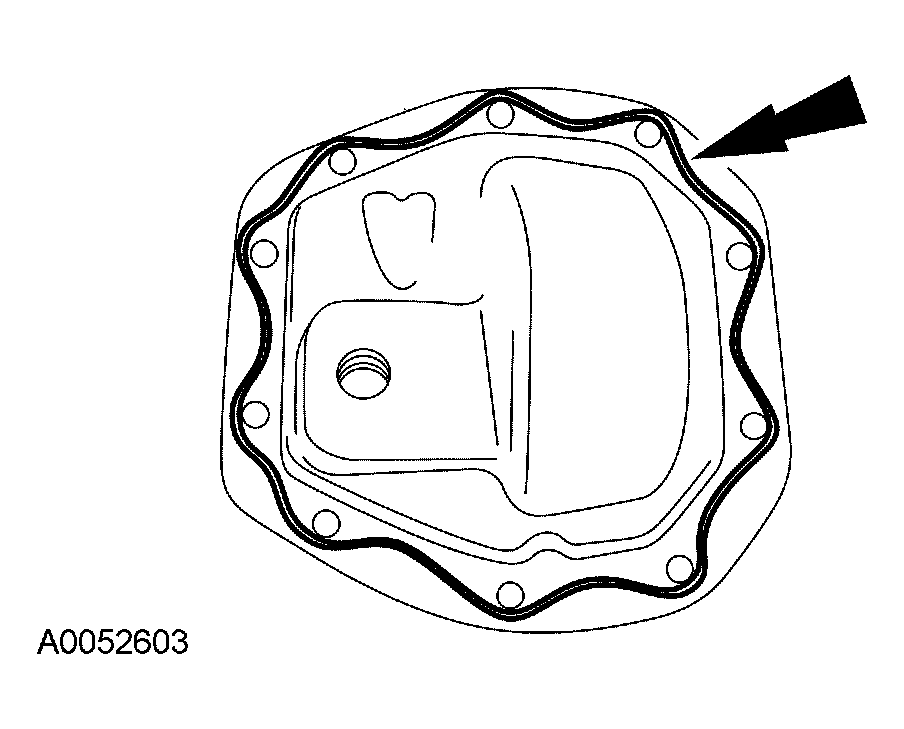

- Apply a new continuous bead of clear silicone rubber as shown in Fig 1.
- Install the differential housing cover and the 10 bolts.
- Tighten to 23 Nm (17 lb-ft).
- Fill the rear axle with 1.4 liters (2.95 pints) of rear axle lubricant, 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
- Tighten to 27 Nm (20 lb-ft).
CAUTION:
Make sure the machined surfaces on the rear axle housing and the differential housing cover are clean and free of oil before installing the new silicone sealant. The inside of the rear axle must be covered when cleaning the machined surface to prevent contamination.
NOTE:
The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.
