Removal & Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to GENERAL PROCEDURES .
Push the lock forward and release the ABS electrical connector.

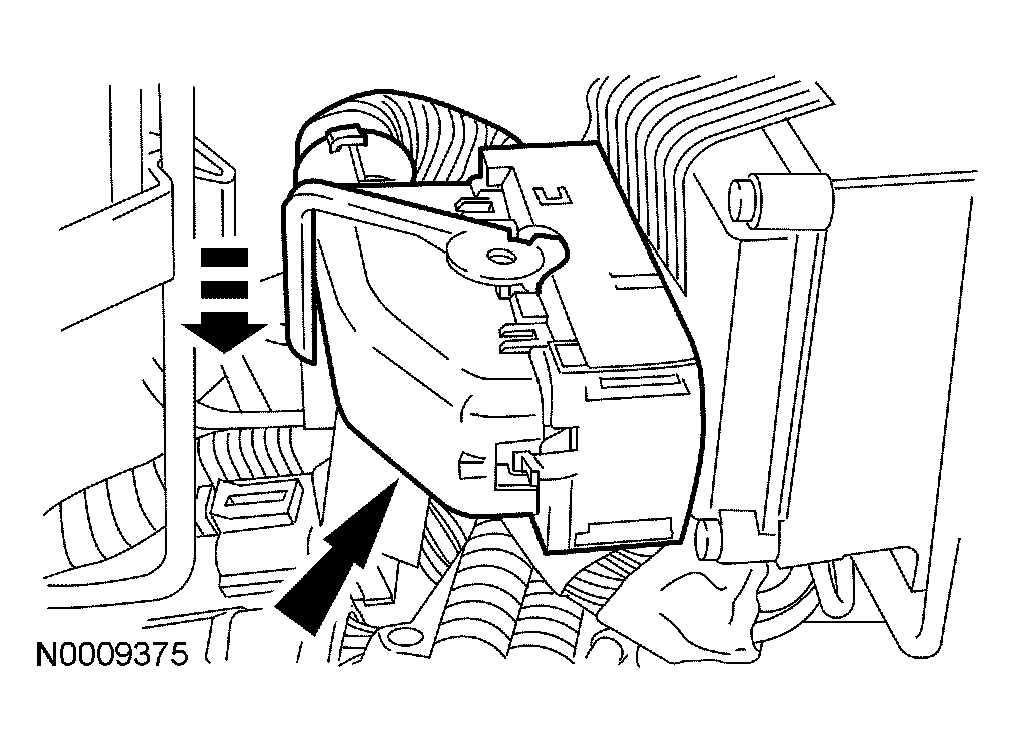

Fig 1: Pushing Lock Forward & Release ABS Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the ABS module.

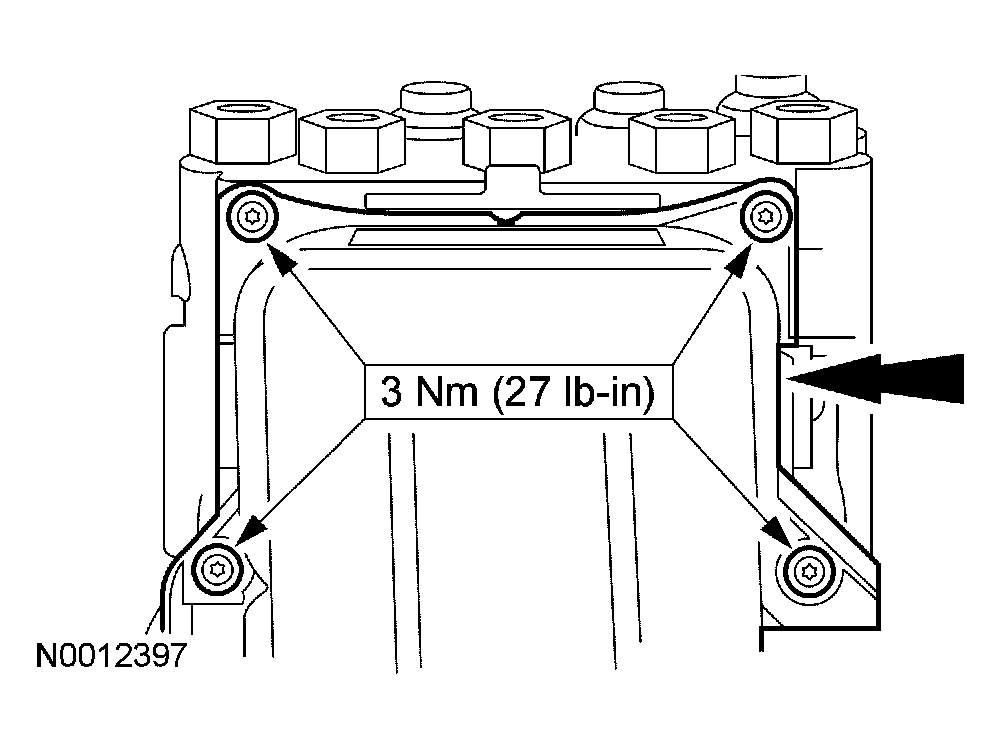

Fig 2: Removing Screws & ABS Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
