Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft vibration damper. For additional information, refer to CRANKSHAFT PULLEY .
Punch two holes in the seal.

Fig 1: Identifying Seal
Courtesy of FORD MOTOR CO.
Using the special tool, remove the crankshaft seal.

Fig 2: Removing Crankshaft Seal Using Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Production engines will not have a wear sleeve.

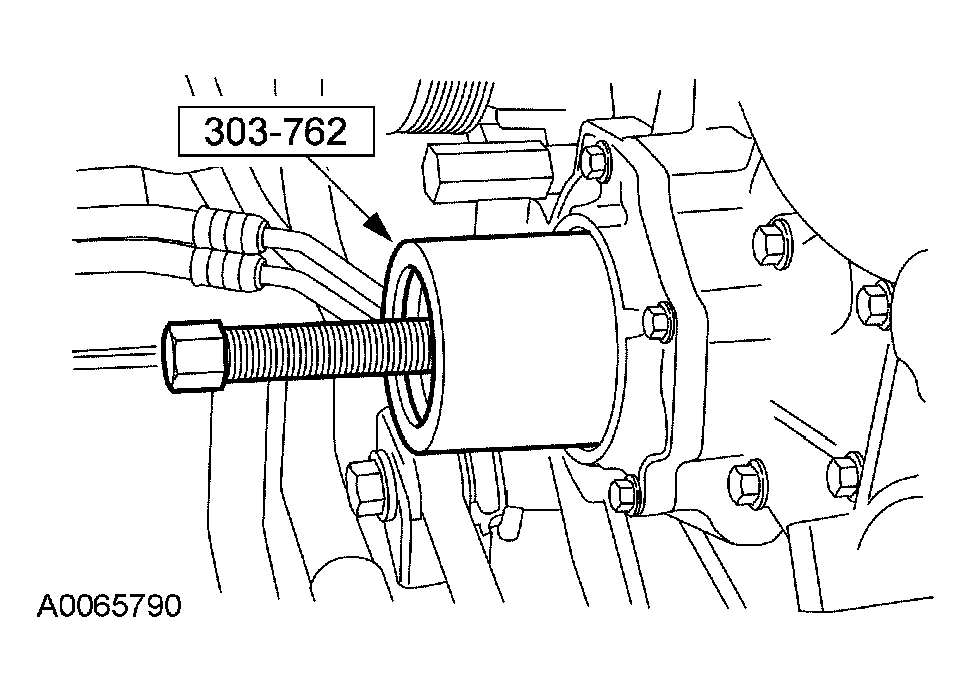

Fig 3: Removing Crankshaft Seal Wear Sleeve Using Special Tool

Courtesy of FORD MOTOR CO.

If equipped, remove the crankshaft seal wear sleeve.
