2.5L Hybrid, 3.0L and 3.5L
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

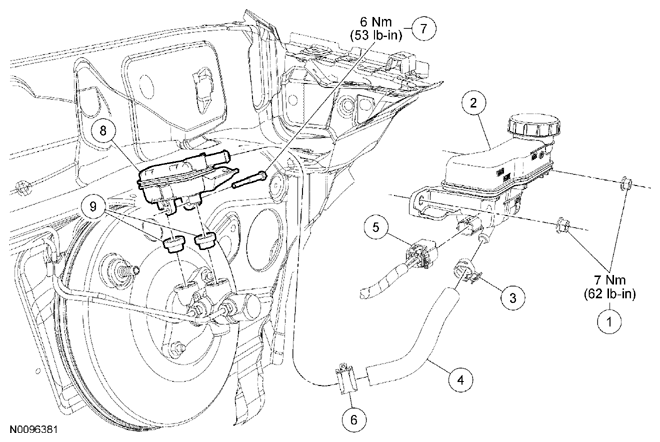

Fig 1: Exploded View Of Brake Fluid Reservoir Components With Torque Specifications (2.5L Non-Hybrid, 3.0L And 3.5L)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520111 | Brake fluid remote reservoir nuts (2 required) |
| 2 | 2K478 | Brake fluid remote reservoir |
| 3 | - | Spring clamp (part of 2K478) |
| 4 | - | Brake fluid reservoir hose (part of 2K478) |
| 5 | - | Brake fluid level warning switch electrical connector (part of 14290) |
| 6 | - | Spring clamp (part of 2K478) |
| 7 | 2B176 | Brake fluid reservoir pin bolt |
| 8 | 2K478 | Brake fluid reservoir |
| 9 | 2L074 | Brake fluid reservoir seals (2 required) |
