Removal and Installation
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

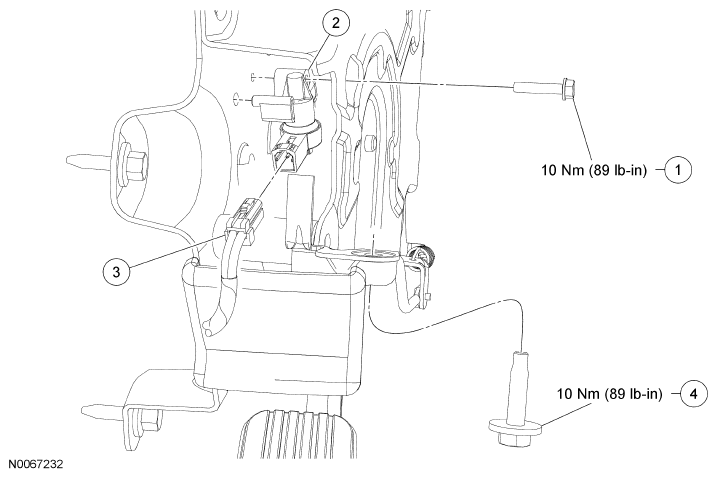

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8259 | Parking brake warning indicator switch bolt |
| 2 | 15852 | Parking brake warning indicator switch |
| 3 | 14405 | Parking brake warning indicator switch electrical connector |
| 4 | W505424 | Parking brake release handle bolt |
- Remove the parking brake release handle bolt.
- To install, tighten to 10 Nm (89 lb-in).
- Disconnect the warning indicator switch electrical connector.
- Remove the bolt and warning indicator switch.
- To install, tighten bolt to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
