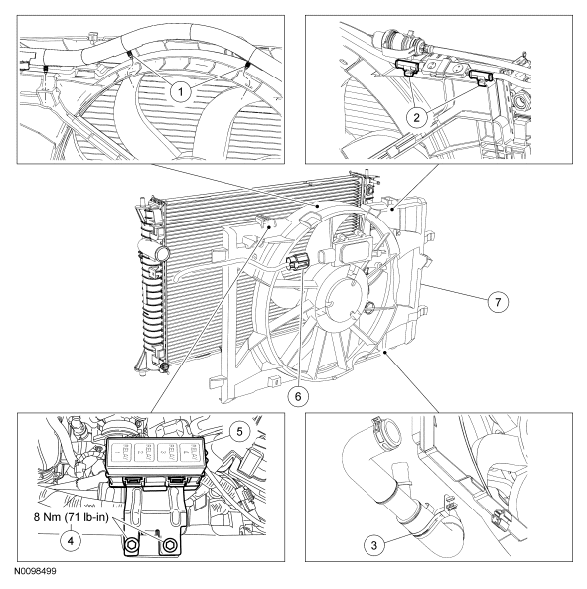

Cooling Fan and Shroud (View 2 Of 2)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Wiring harness retainers |
| 2 | 14A163 | Block heater retainers (part of 6B018) |
| 3 | - | Lower radiator hose pin-type retainer |
| 4 | W500214 | Auxiliary relay box bolts |
| 5 | 14A464 | Auxiliary relay box |
| 6 | 14A464 | Cooling fan motor electrical connector |
| 7 | 8C607 | Cooling fan motor and shroud |
