Roof Opening Panel Alignment

  1. Open the roof opening panel to the VENT position.
  2. Loosen the 4 roof opening panel glass screws.
    Fig 1: Loosening Roof Opening Panel Glass Screws
    G03903539Courtesy of FORD MOTOR CO.
  3. Close the roof opening panel glass.
    4. NOTE: The correct position of the roof opening panel glass to the roof panel should be -1.5 mm to 0 mm (-0.059 to 0 inch) at the front edge and 0 mm to 1.5 mm (0 to 0.059 inch) at the rear edge of the roof panel.
    Make sure the roof opening panel is centered in the roof opening.

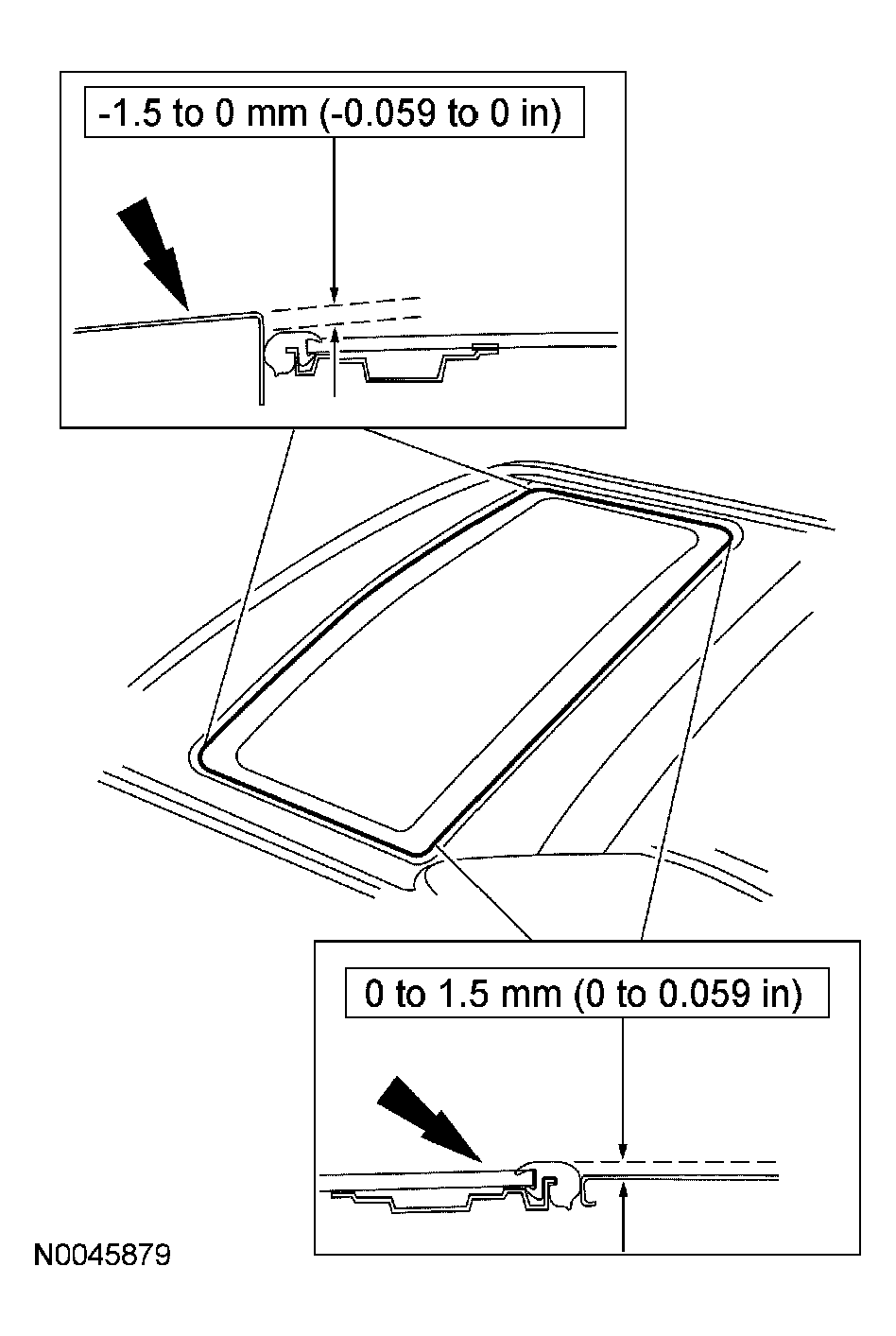

    Fig 2: Adjusting Roof Opening Panel Glass
    G03903540Courtesy of FORD MOTOR CO.
  4. Adjust the roof opening panel glass.
  5. Open the roof opening panel to the VENT position and tighten the 4 roof opening panel glass screws.
    Fig 3: Tightening Screws
    G03903541Courtesy of FORD MOTOR CO.
