Connector Circuit Reference

Instrument Cluster C220

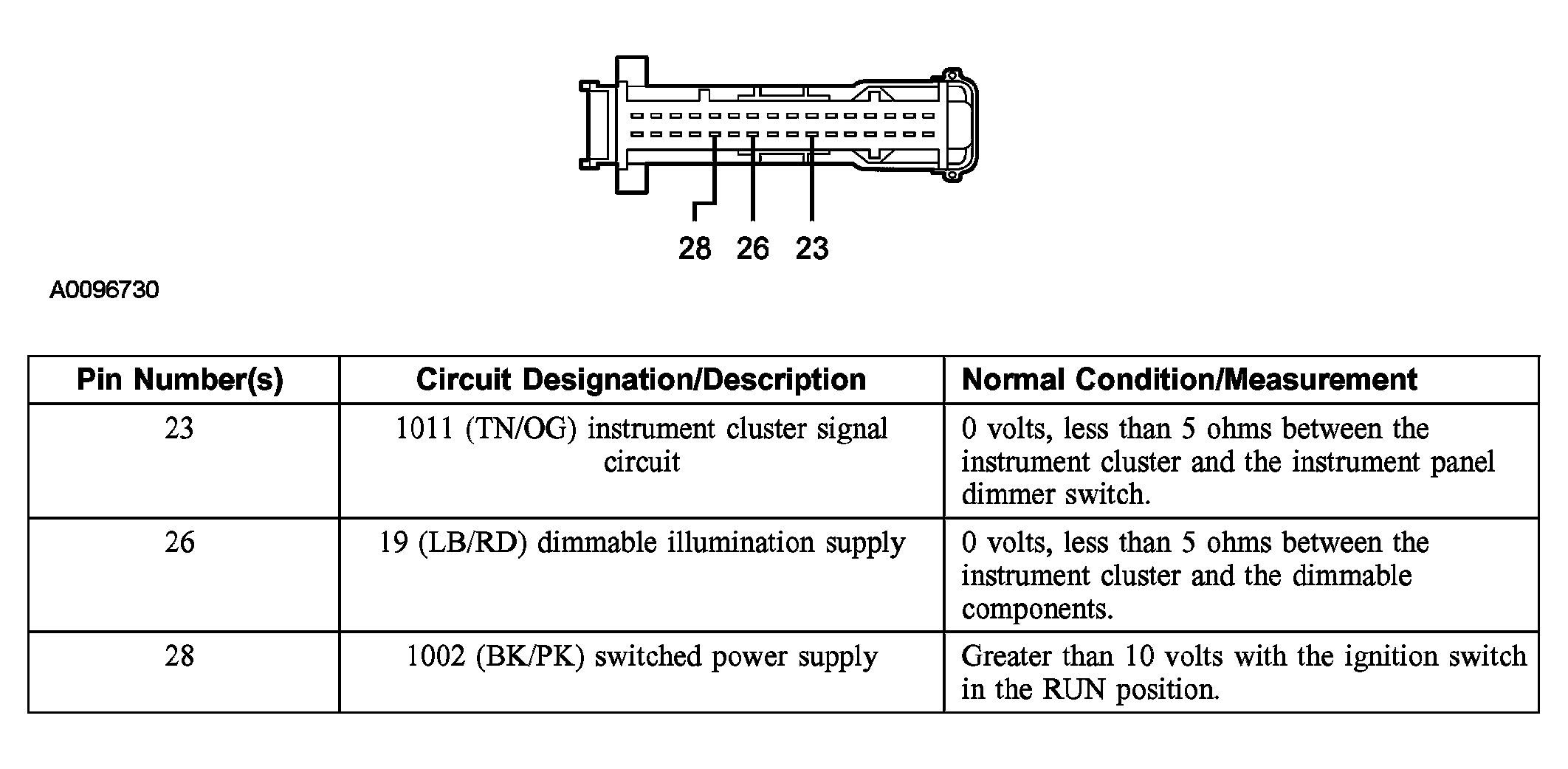

Fig 1: Identifying Instrument Cluster Connector Pins C220

Courtesy of FORD MOTOR CO.

Audio Unit C229a (Navigation)

Fig 2: Identifying Audio Unit Connector Pins C229a (Navigation)

Courtesy of FORD MOTOR CO.

Audio Unit C240a (MACH 300)

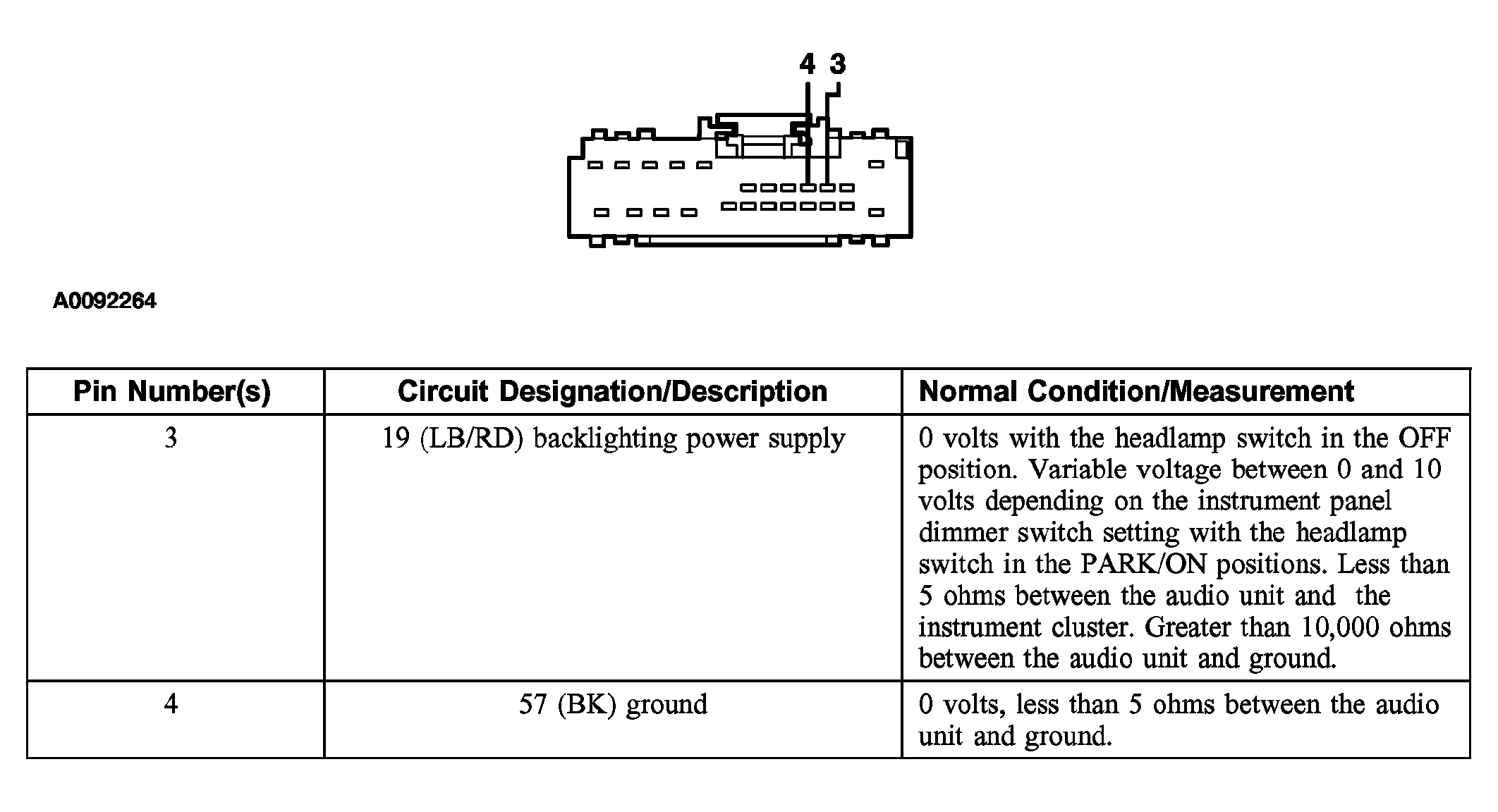

Fig 3: Identifying Audio Unit Connector Pins C240a (MACH 300)

Courtesy of FORD MOTOR CO.

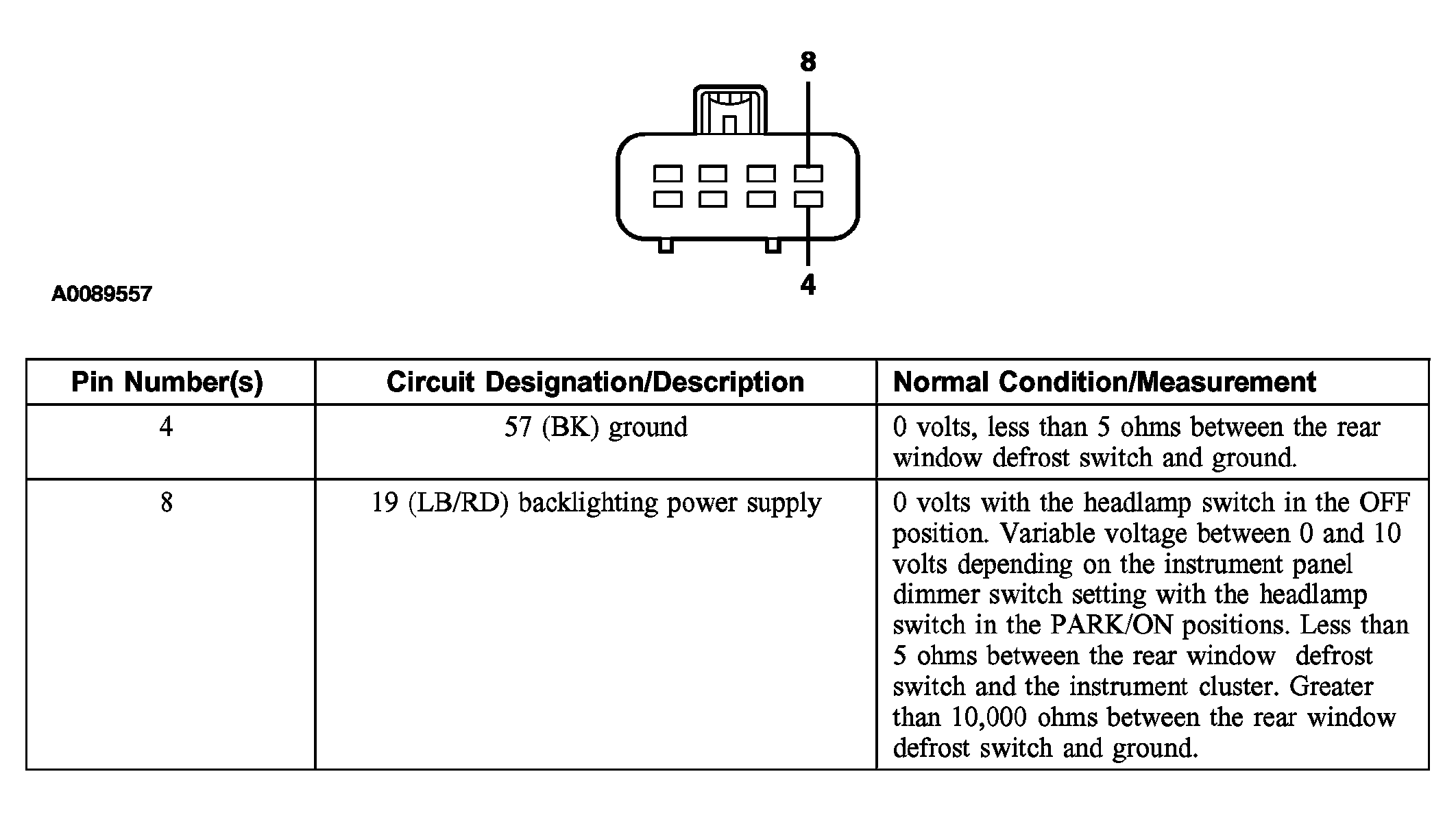

Rear Window Defrost Switch C241 (vehicles built before 12/2004)

Fig 4: Identifying Rear Window Defrost Switch Connector Pins C241 (Vehicles Built Before 12/2004)

Courtesy of FORD MOTOR CO.

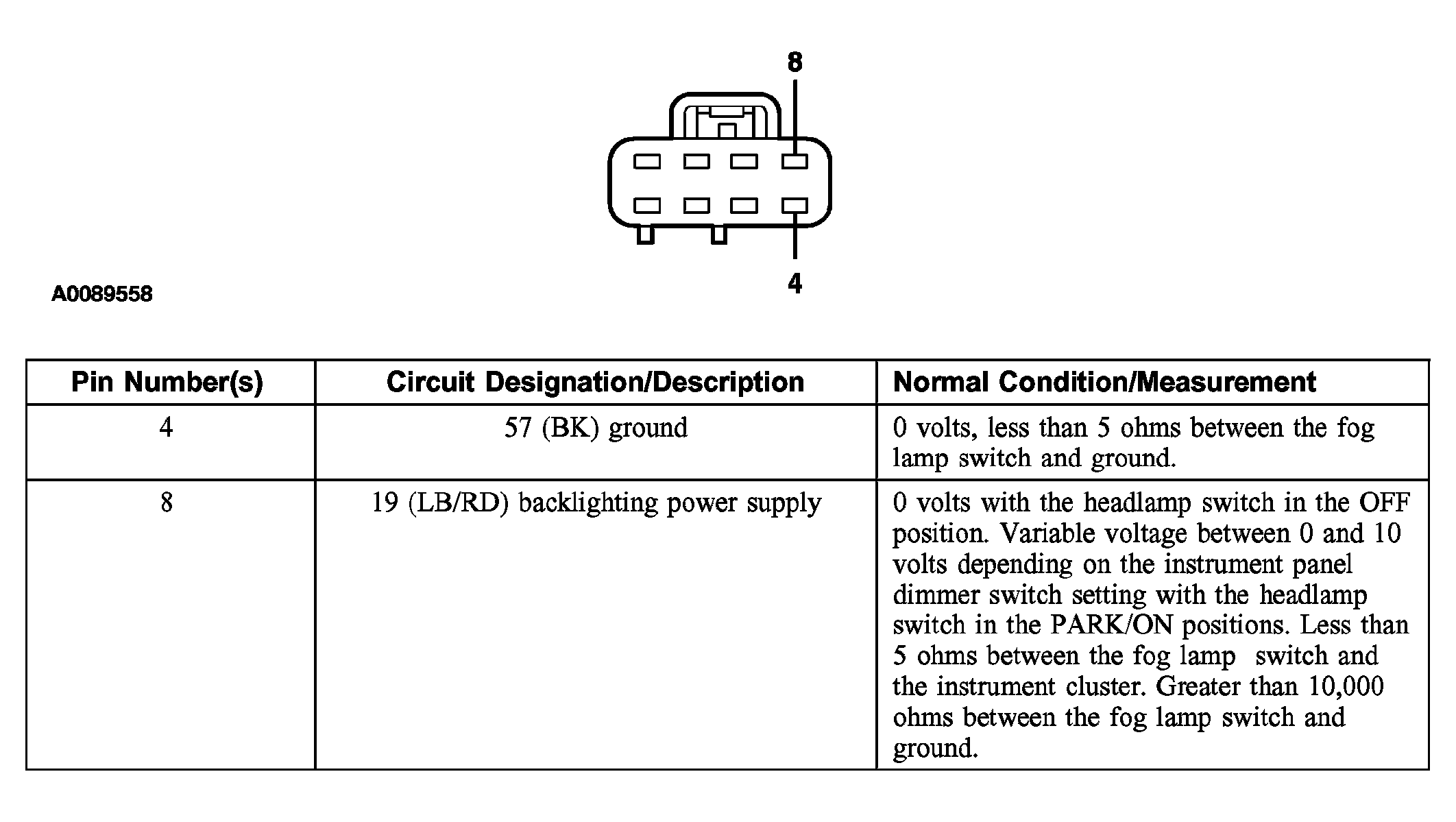

Fog Lamp Switch C242 (vehicles built before 12/2004)

Fig 5: Identifying Fog Lamp Switch Connector Pins C242 (Vehicles Built Before 12/2004)

Courtesy of FORD MOTOR CO.

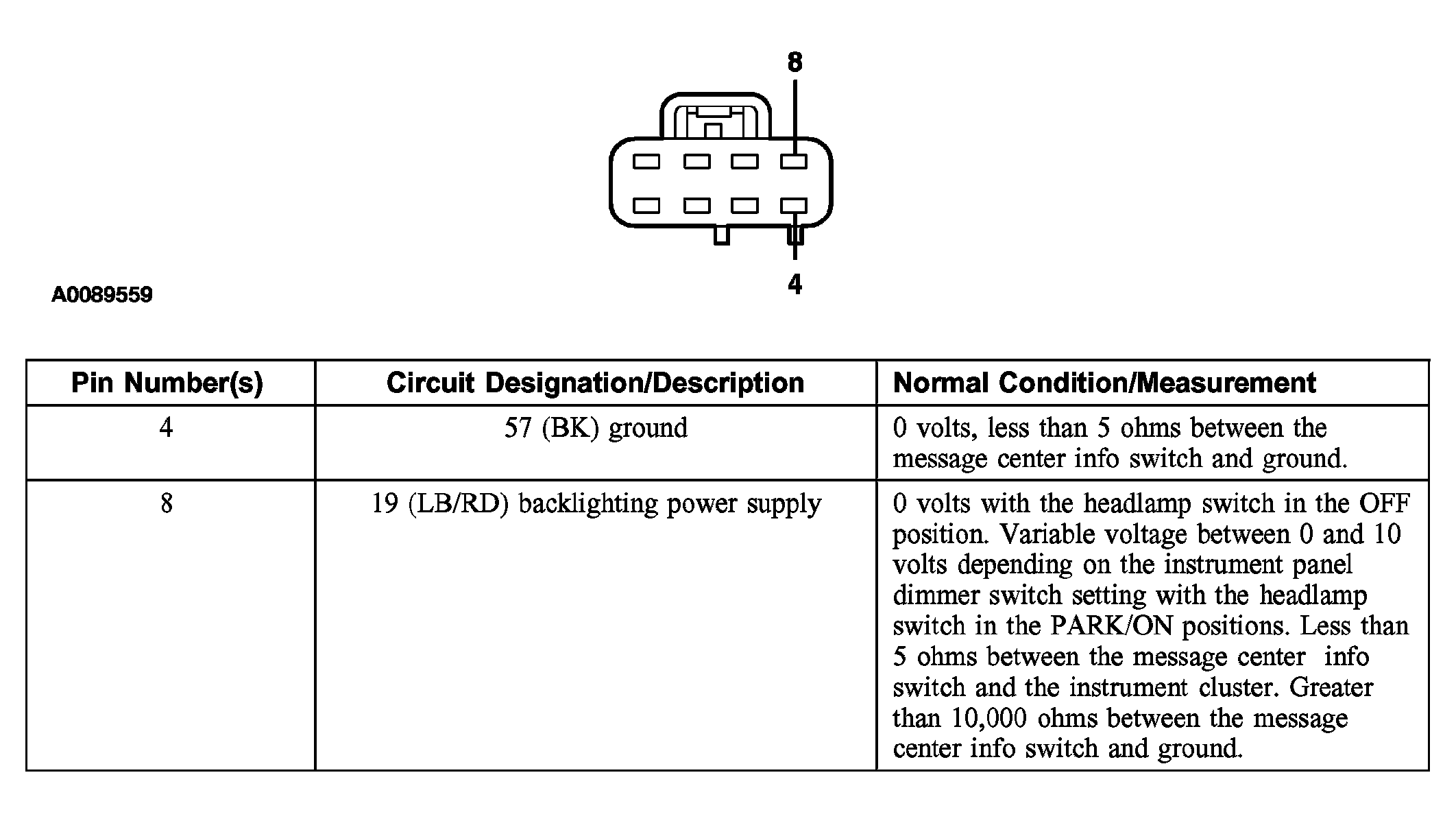

Message Center Info Switch C253a (vehicles built before 12/2004)

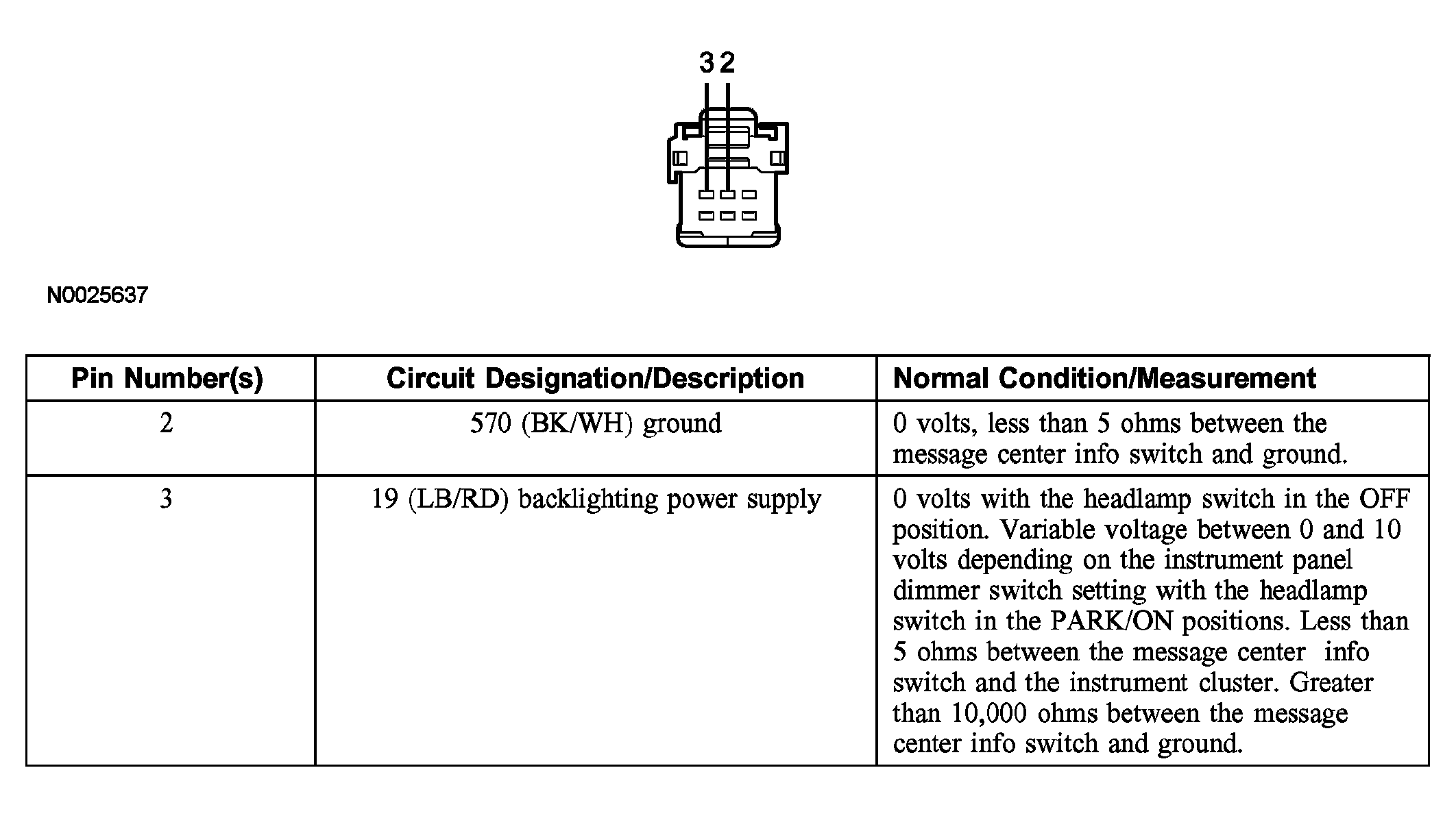

Fig 6: Identifying Message Center Info Switch Connector Pins C253a (Vehicles Built Before 12/2004)

Courtesy of FORD MOTOR CO.

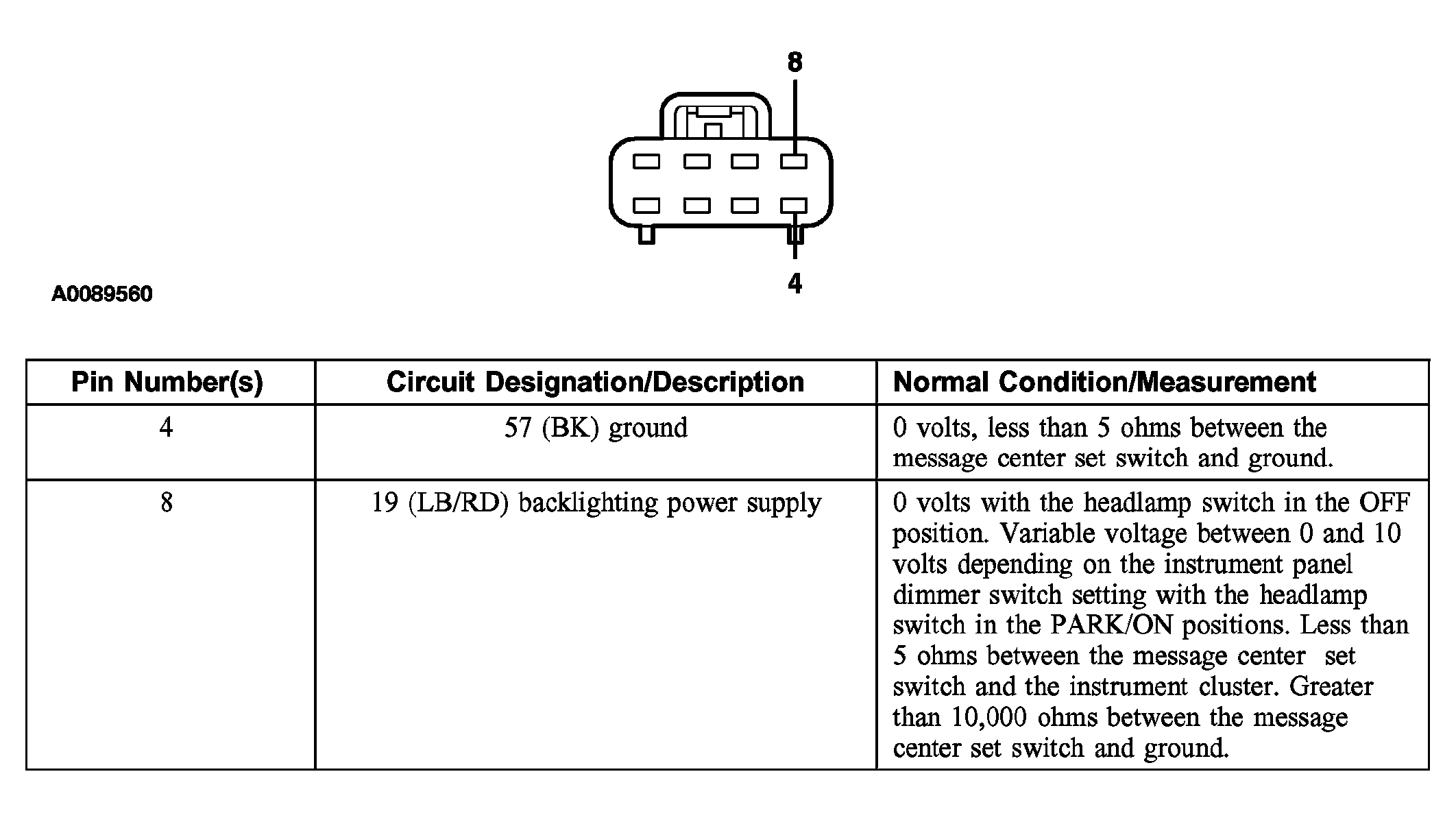

Message Center Set Switch C253b (vehicles built before 12/2004)

Fig 7: Identifying Message Center Set Switch Connector Pins C253b (Vehicles Built Before 12/2004)

Courtesy of FORD MOTOR CO.

Message Center Info Switch C269a (vehicles built after 12/2004)

Fig 8: Identifying Message Center Info Switch Connector Pins C269a (Vehicles After Before 12/2004)

Courtesy of FORD MOTOR CO.

Message Center Set Switch C269b (vehicles built after 12/2004)

Fig 9: Identifying Message Center Set Switch Connector Pins C269b (Vehicles After Before 12/2004)

Courtesy of FORD MOTOR CO.

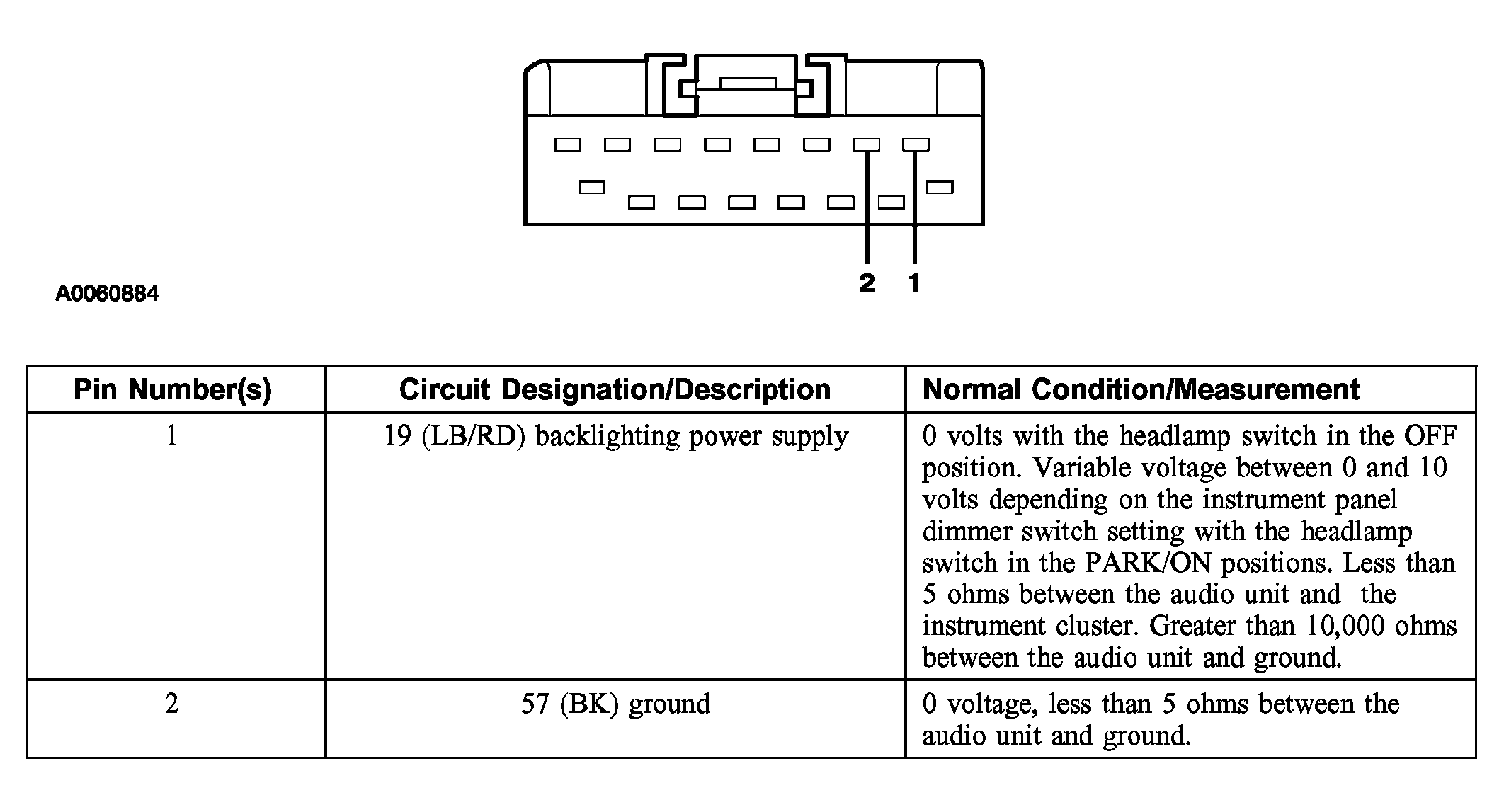

Audio Unit C290 (M100CD, CDX6)

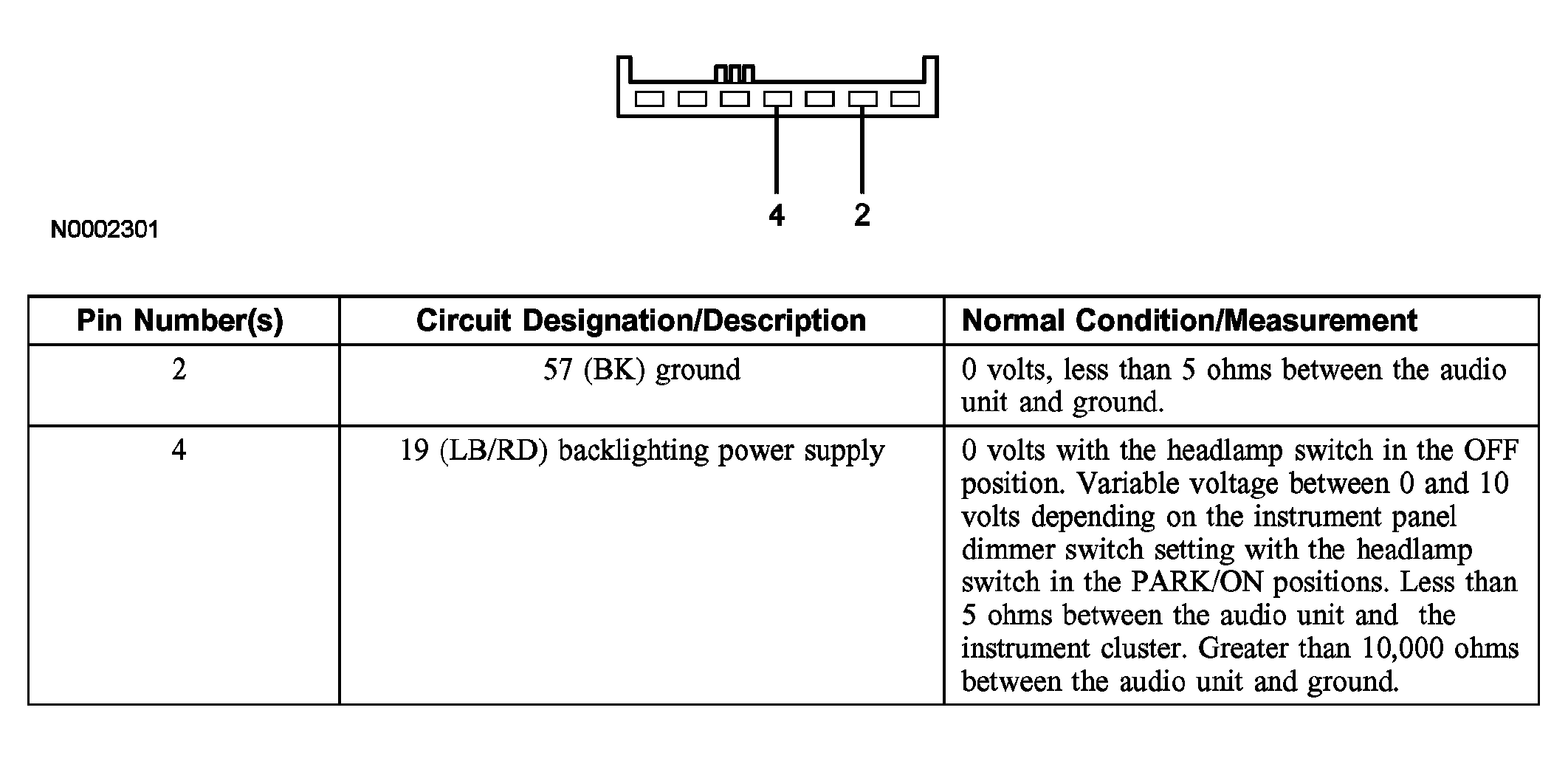

Fig 10: Identifying Audio Unit Connector Pins C290 (M100CD, CDX6)

Courtesy of FORD MOTOR CO.

Climate Control Assembly C294c

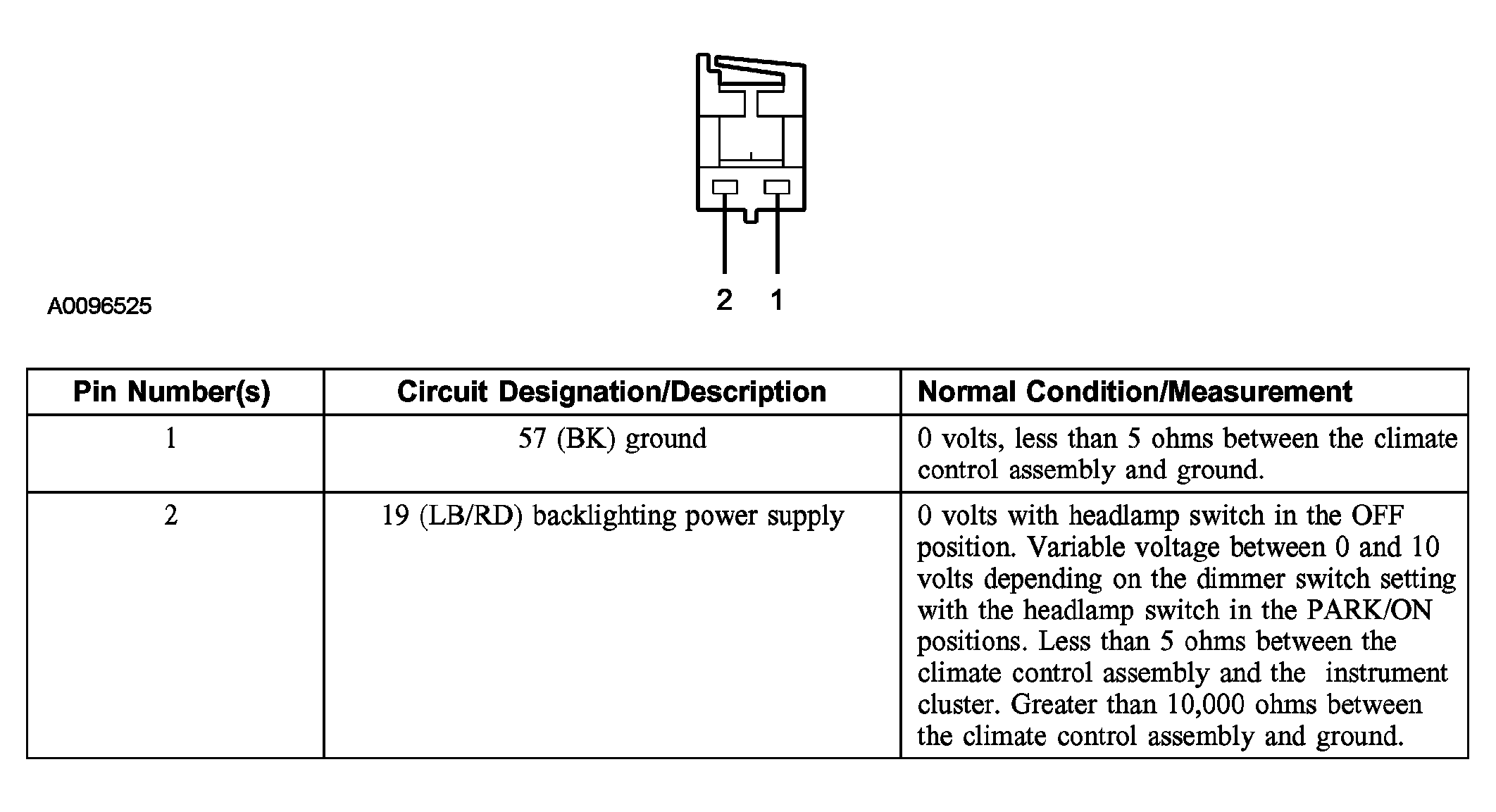

Fig 11: Identifying Climate Control Assembly Connector Pins C294c

Courtesy of FORD MOTOR CO.

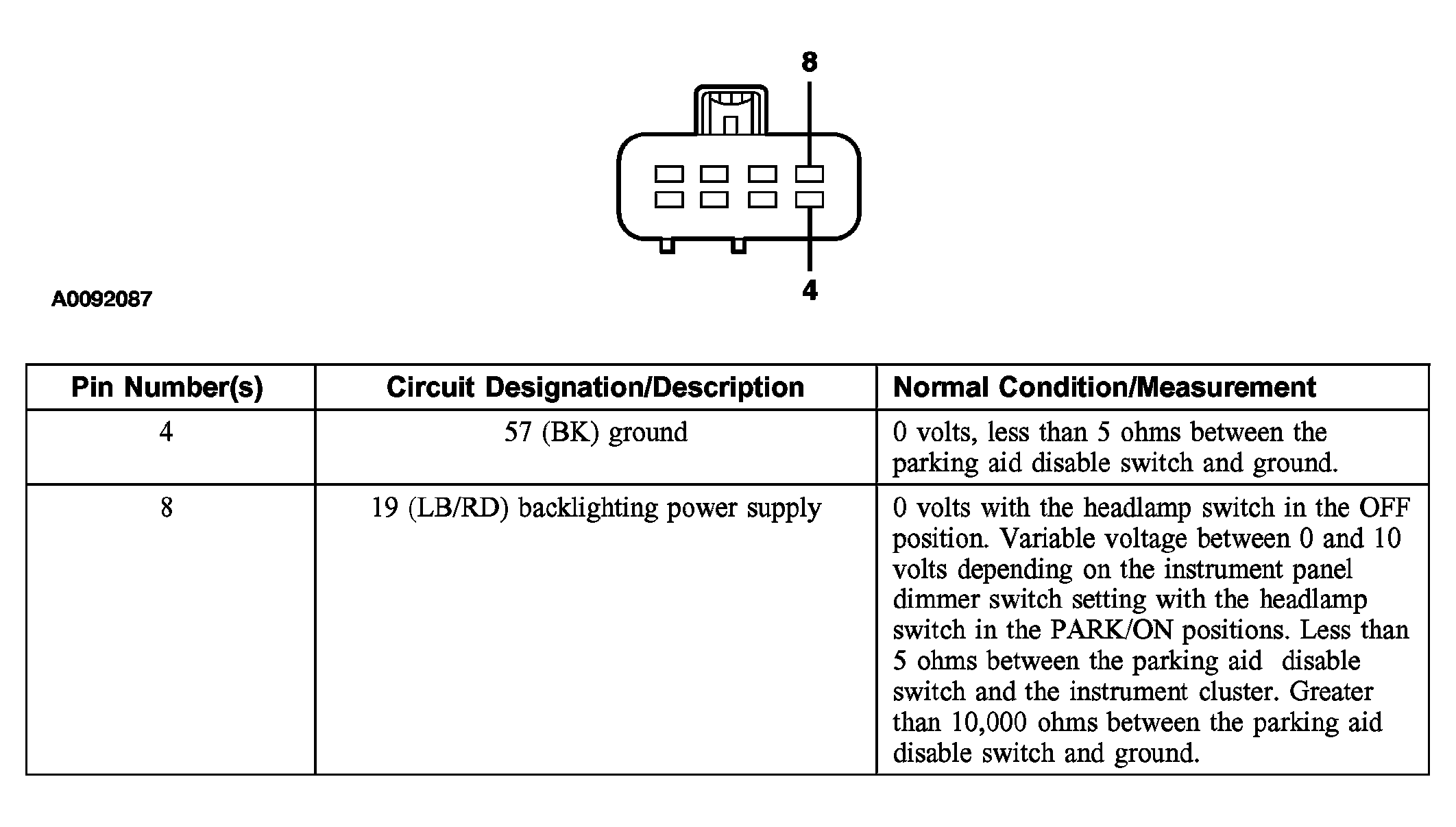

Parking Aid Disable Switch C2035 (vehicles built before 12/2004)

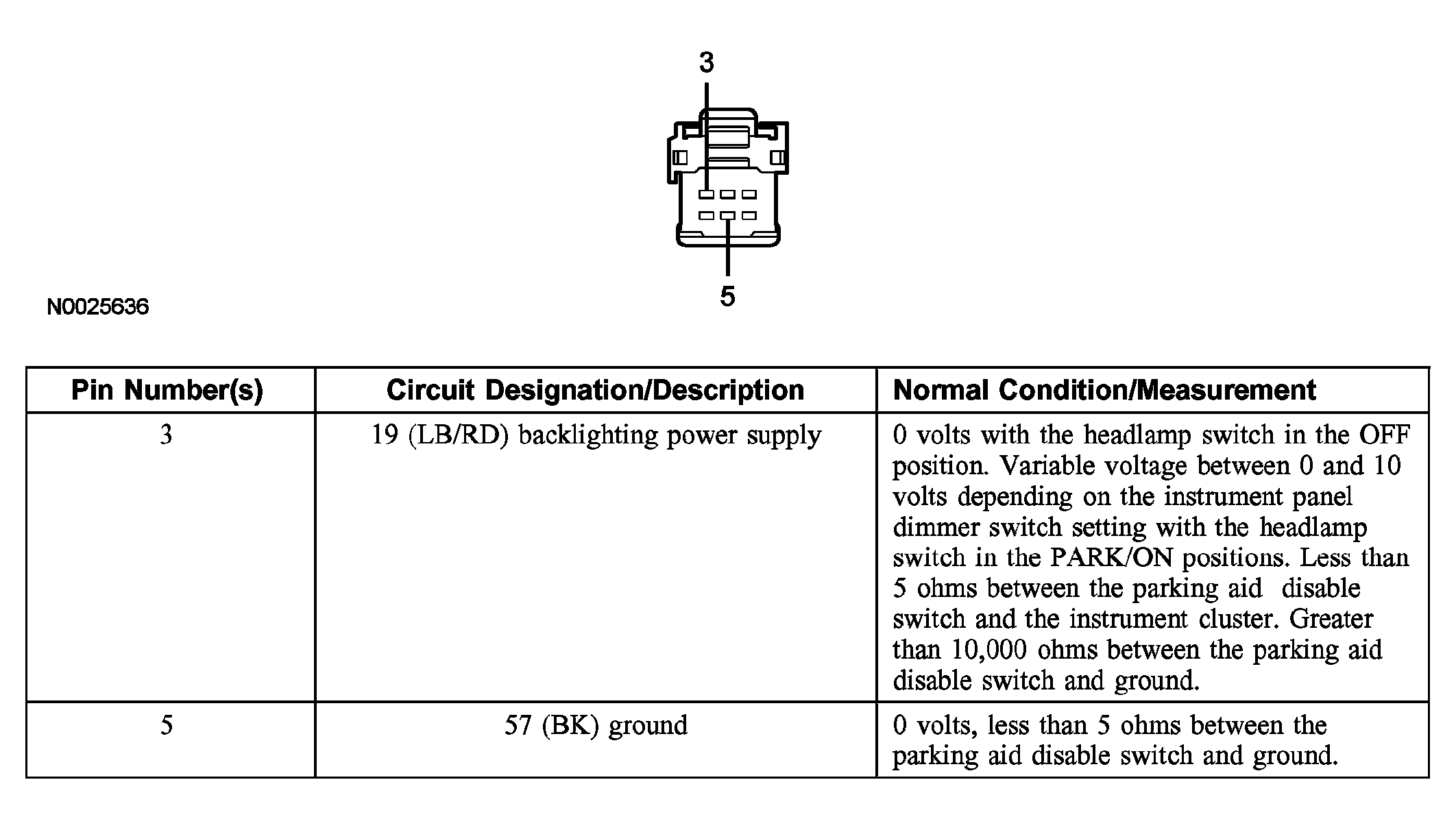

Fig 12: Identifying Parking Aid Disable Switch Connector Pins C2035 (Vehicles Built Before 12/2004)

Courtesy of FORD MOTOR CO.

Hazard Flasher Switch C2039

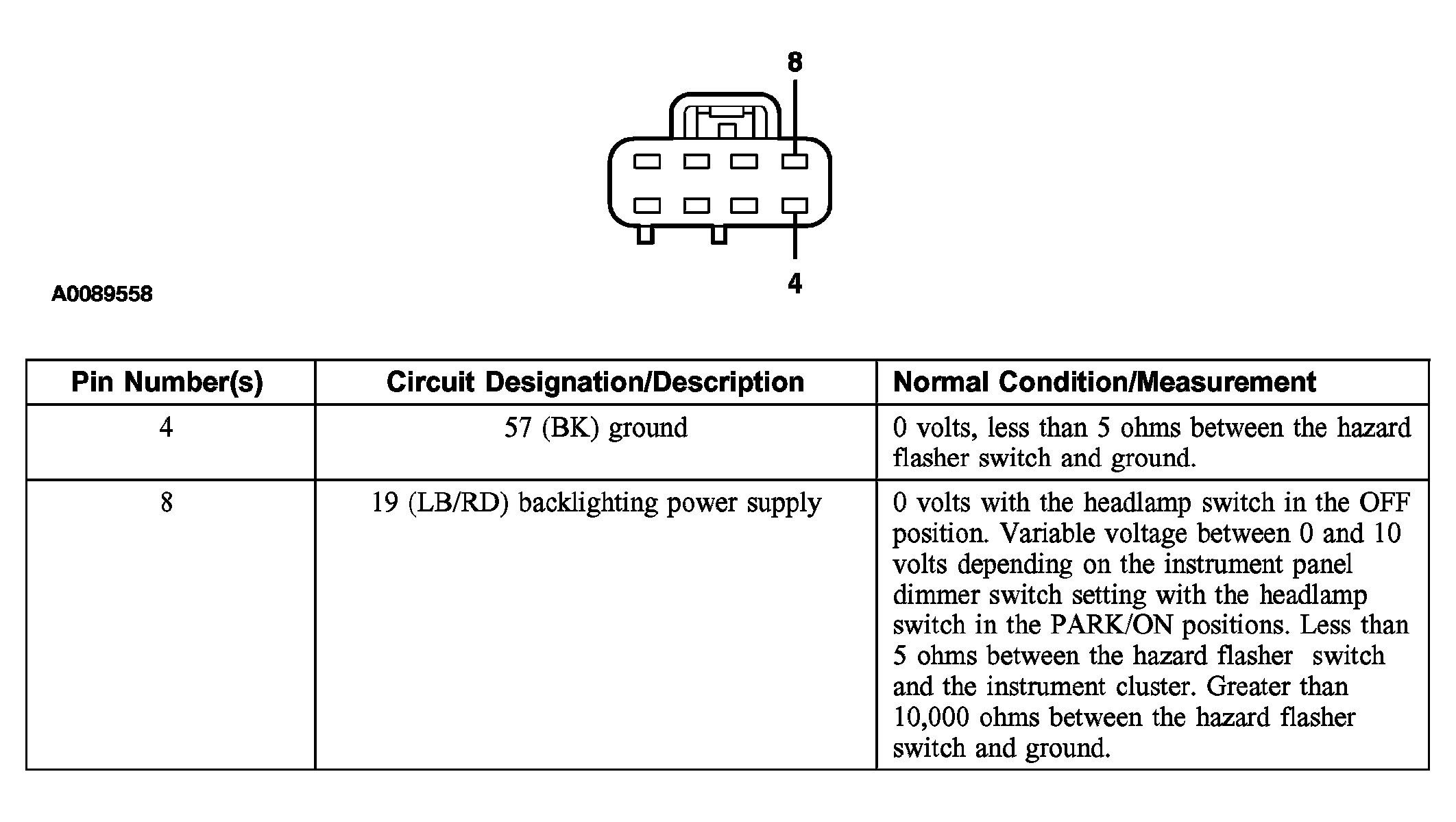

Fig 13: Identifying Hazard Flasher Switch Connector Pins C2039

Courtesy of FORD MOTOR CO.

Instrument Panel Dimmer Switch C2065

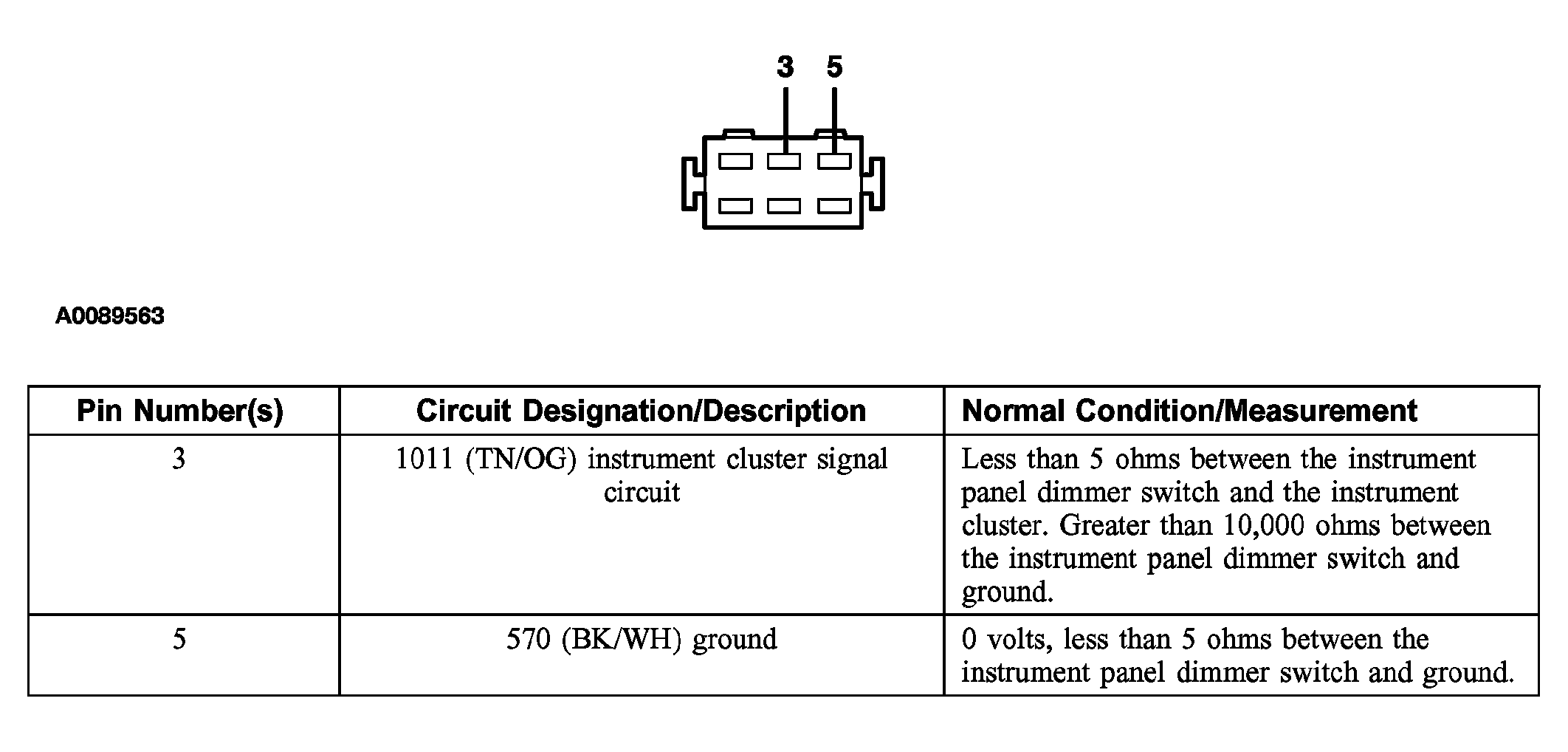

Fig 14: Identifying Instrument Panel Dimmer Switch Connector Pins C2065

Courtesy of FORD MOTOR CO.

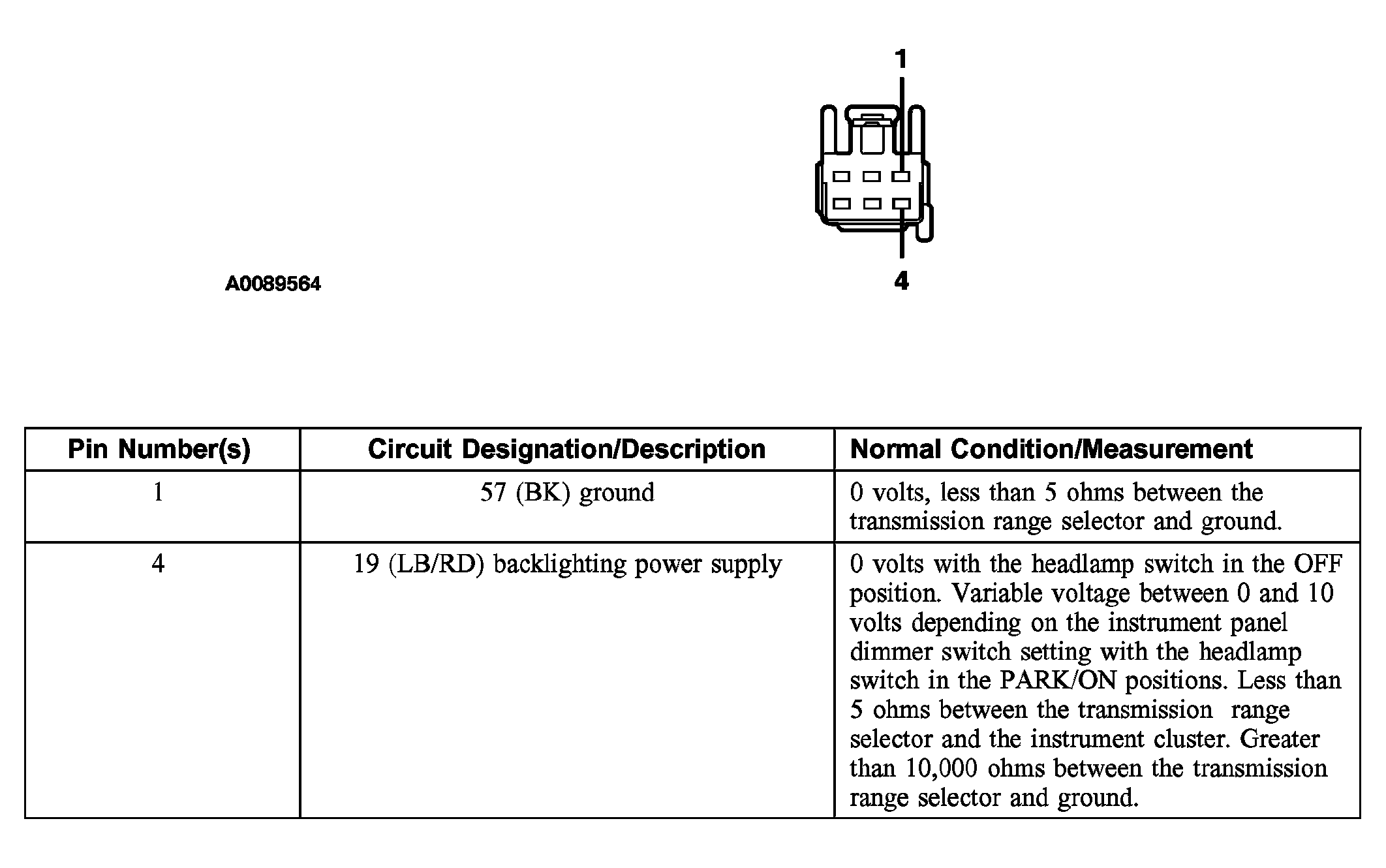

Transmission Range (TR) Selector C2096

Fig 15: Identifying Transmission Range Selector Connector Pins C2096

Courtesy of FORD MOTOR CO.

Parking Aid Disable Switch C2339 (vehicles built after 12/2004)

Fig 16: Identifying Parking Aid Disable Switch Connector Pins C2339 (Vehicles Built After 12/2004)

Courtesy of FORD MOTOR CO.

Rear Window Defrost Switch C2340 (vehicles built after 12/2004)

Fig 17: Identifying Rear Window Defrost Switch Connector Pins C2340 (Vehicles Built After 12/2004)

Courtesy of FORD MOTOR CO.

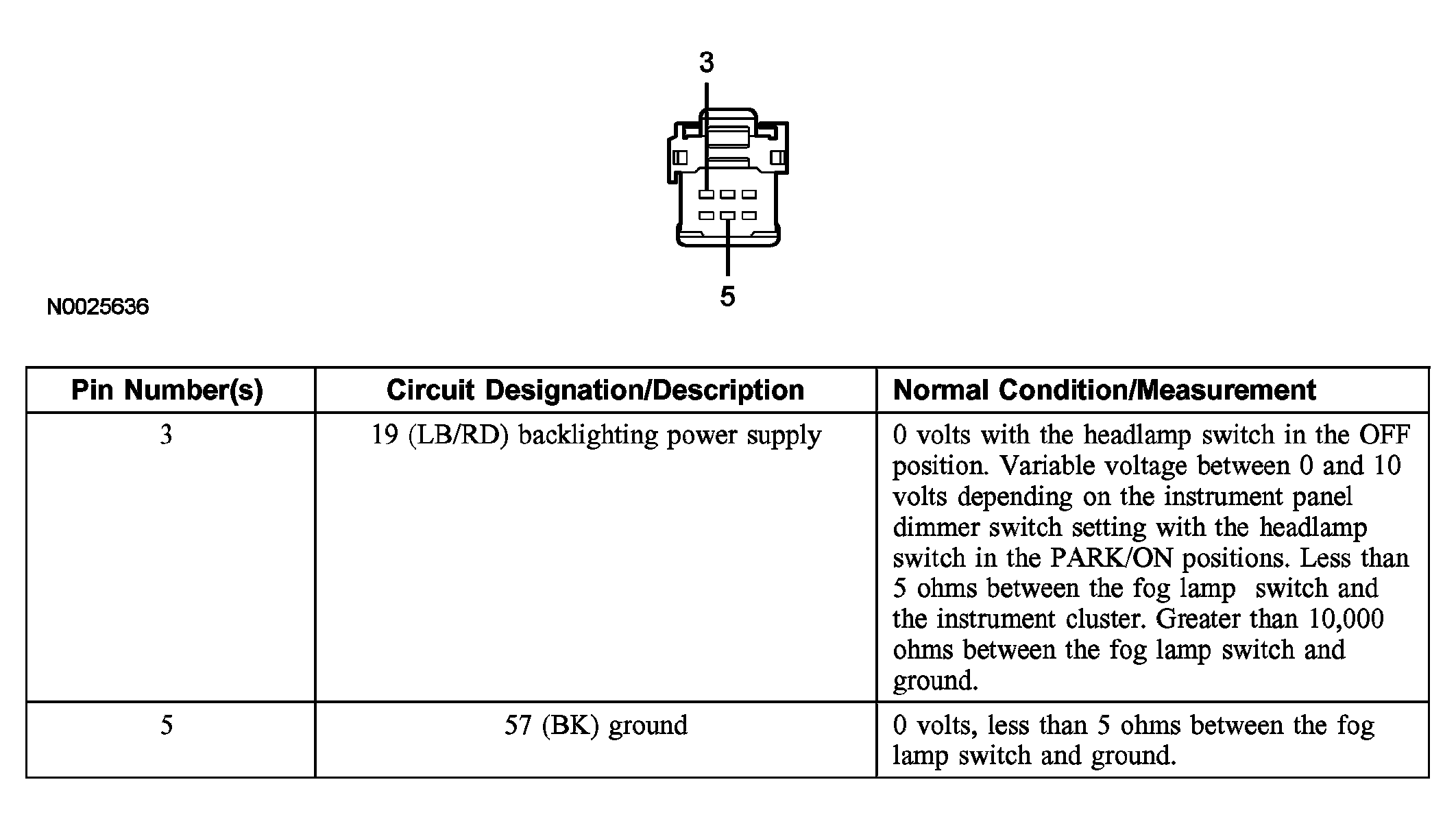

Fog Lamp Switch C2341 (vehicles built after 12/2004)

Fig 18: Identifying Fog Lamp Switch Connector Pins C2341 (Vehicles Built After 12/2004)

Courtesy of FORD MOTOR CO.
