Coolant Pump Belt: Installation

  1. Install the water pump belt on the water pump pulley and position it on the camshaft pulley.

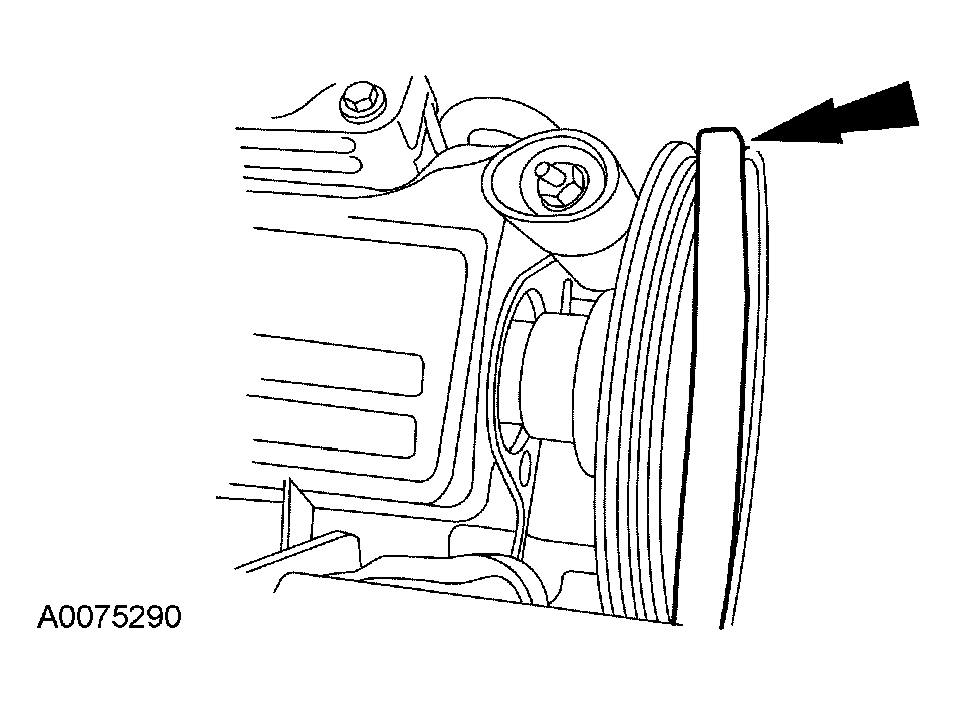

    Fig 1: Installing Water Pump Belt On Water Pump Pulley
    G03898578Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not use any screwdrivers, pliers or other metal objects that could cause damage to the belt or camshaft pulley while installing the belt.
  2. Rotate the crankshaft clockwise to seat the water pump belt on the camshaft pulley.
  3. Install the coolant pump belt shield and the nuts.
    • Tighten to 6 Nm (53 lb-in).
  4. Install the RH splash shield and the bolts.
    • Tighten to 7 Nm (62 lb-in).
