Accessory Drive

Accessory Drive Belt

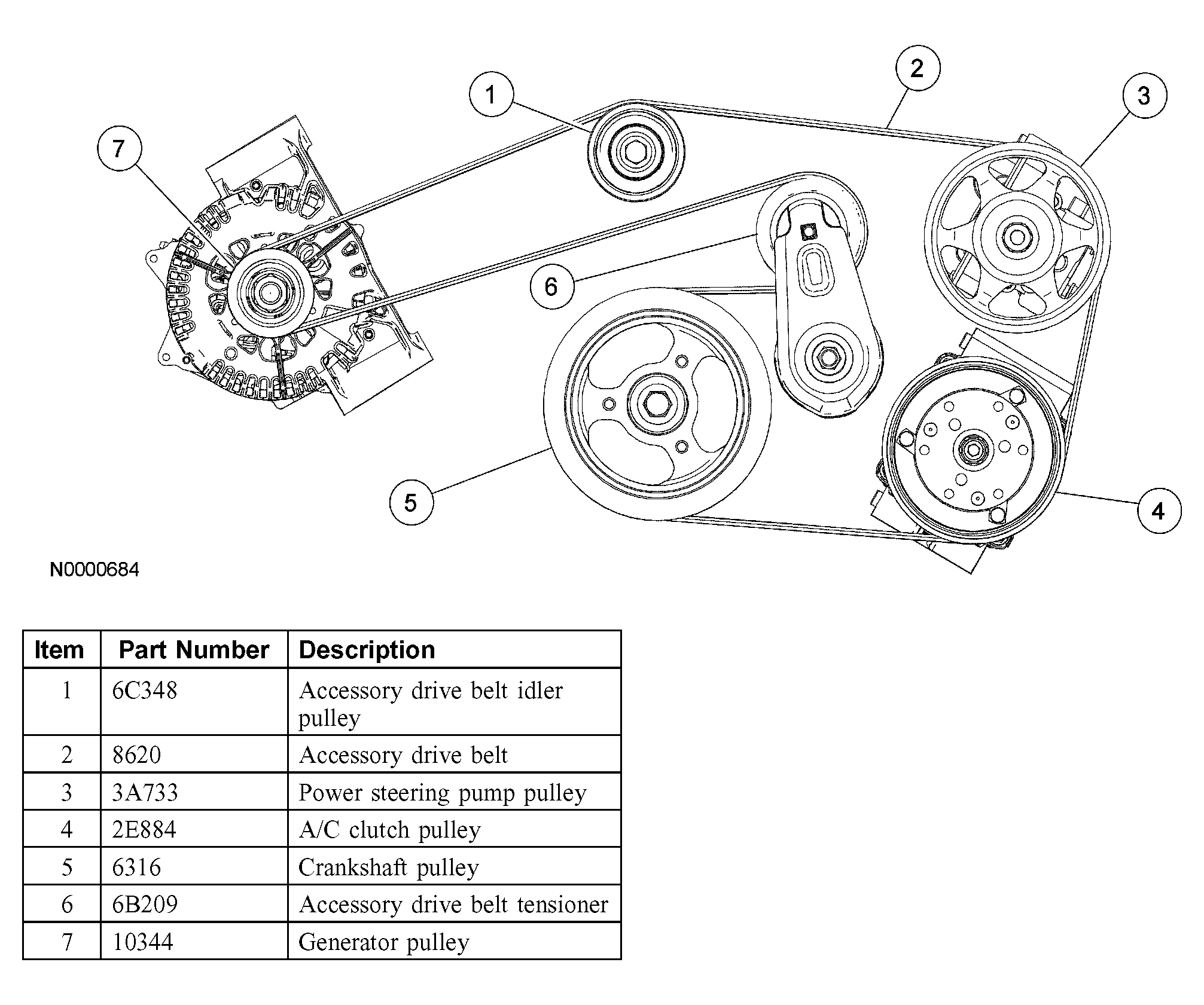

Fig 1: Identifying Accessory Drive Belt With Related Parts

Courtesy of FORD MOTOR CO.

Coolant Pump Drive Belt

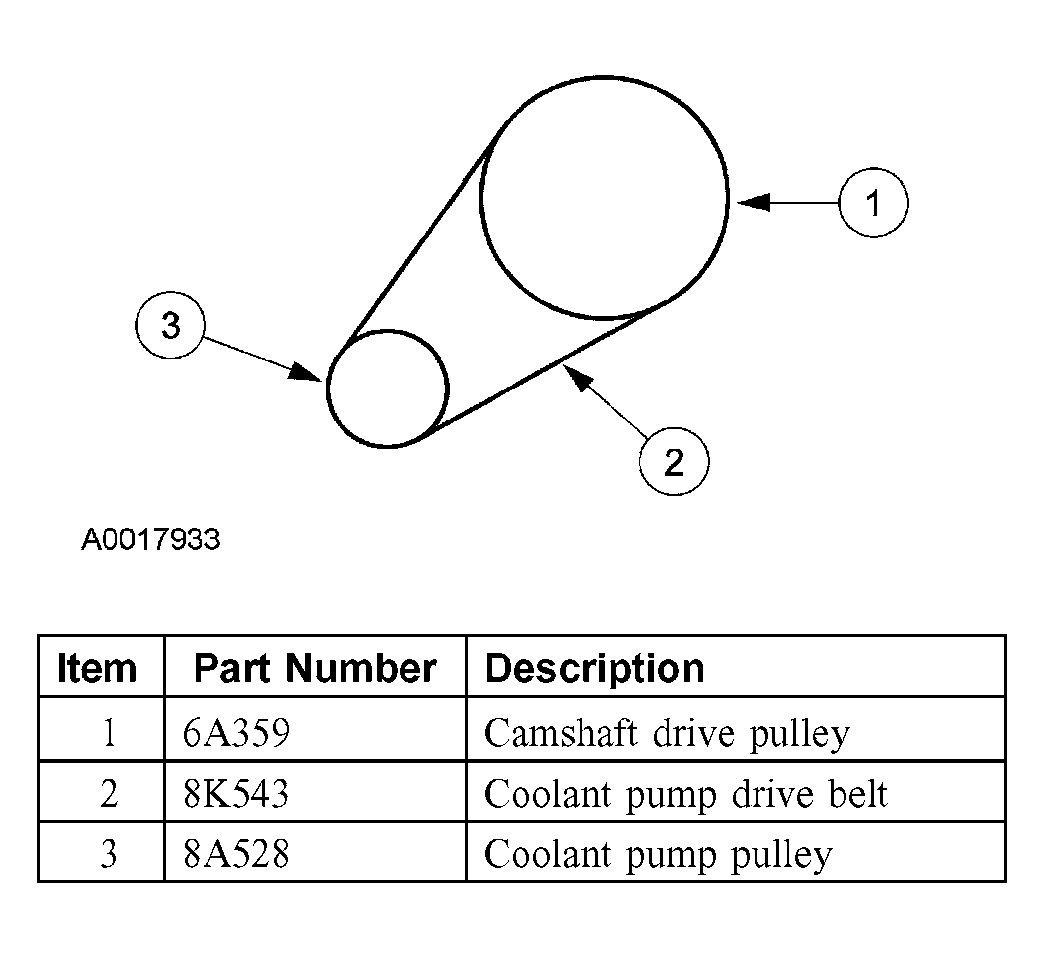

Fig 2: Identifying Coolant Pump Drive Belt With Related Parts

Courtesy of FORD MOTOR CO.

This vehicle is equipped with:

• a V-ribbed serpentine accessory drive belt.
• an automatic drive belt tensioner.
• a V-ribbed coolant pump belt.

New drive belts must be of the same type as originally installed.

Check the drive belt condition at 160,000 km (100,000 miles) then after every 24,000 km (15,000 miles).
