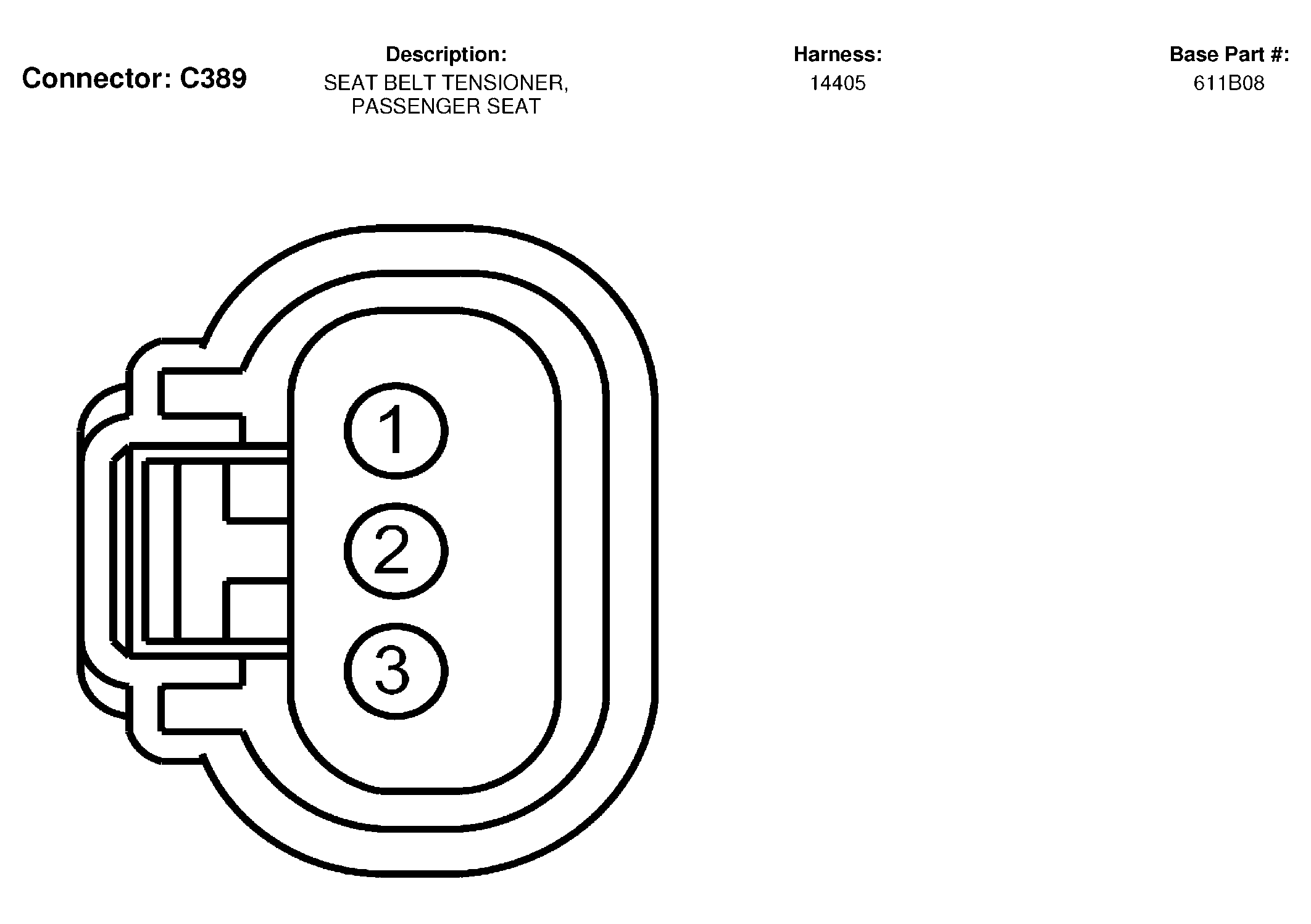

Seat Belt Tensioner, Passenger Seat Connector End View (C389)
Courtesy of FORD MOTOR CO. C389 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
2088 (TN-RD) |
20 |
Seat belt tensioner, passenger seat, feed |
|
| 2 |
1203 (BK-LB) |
20 |
Ground |
|
| 3 |
2089 (OG-BK) |
20 |
Seat belt tensioner, passenger seat, signal |
|
