Heated Seats Relay (Late Production)

NOTE: Heated seats relay is located under driver's seat. See Fig 1.

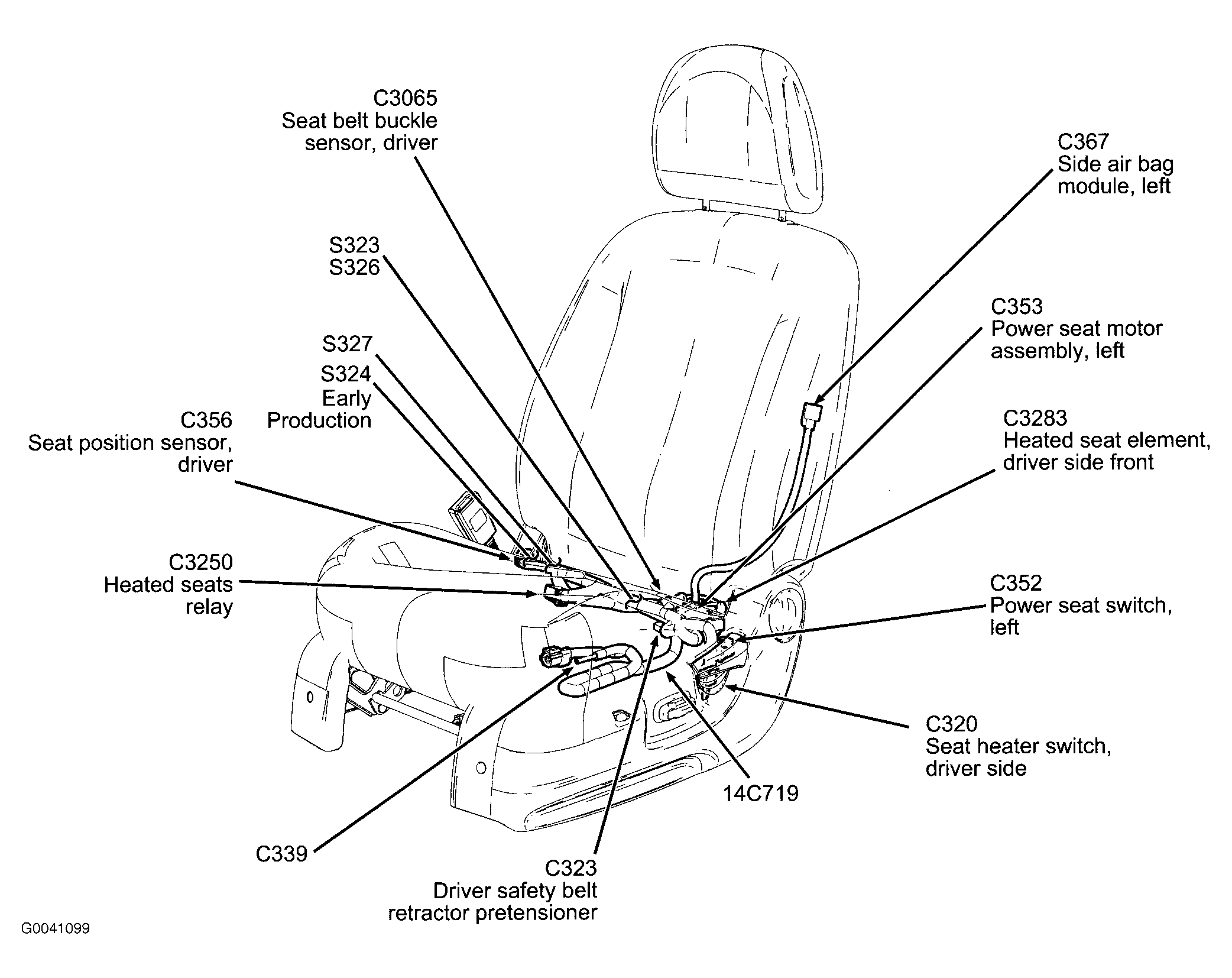

Fig 1: Driver's Seat Components And Relays

Courtesy of FORD MOTOR CO.

DRIVER'S SEAT RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C3250	Heated Seats Relay
