Blower Motor Relay

NOTE: Blower motor relay is located behind lower left center of dash. See.

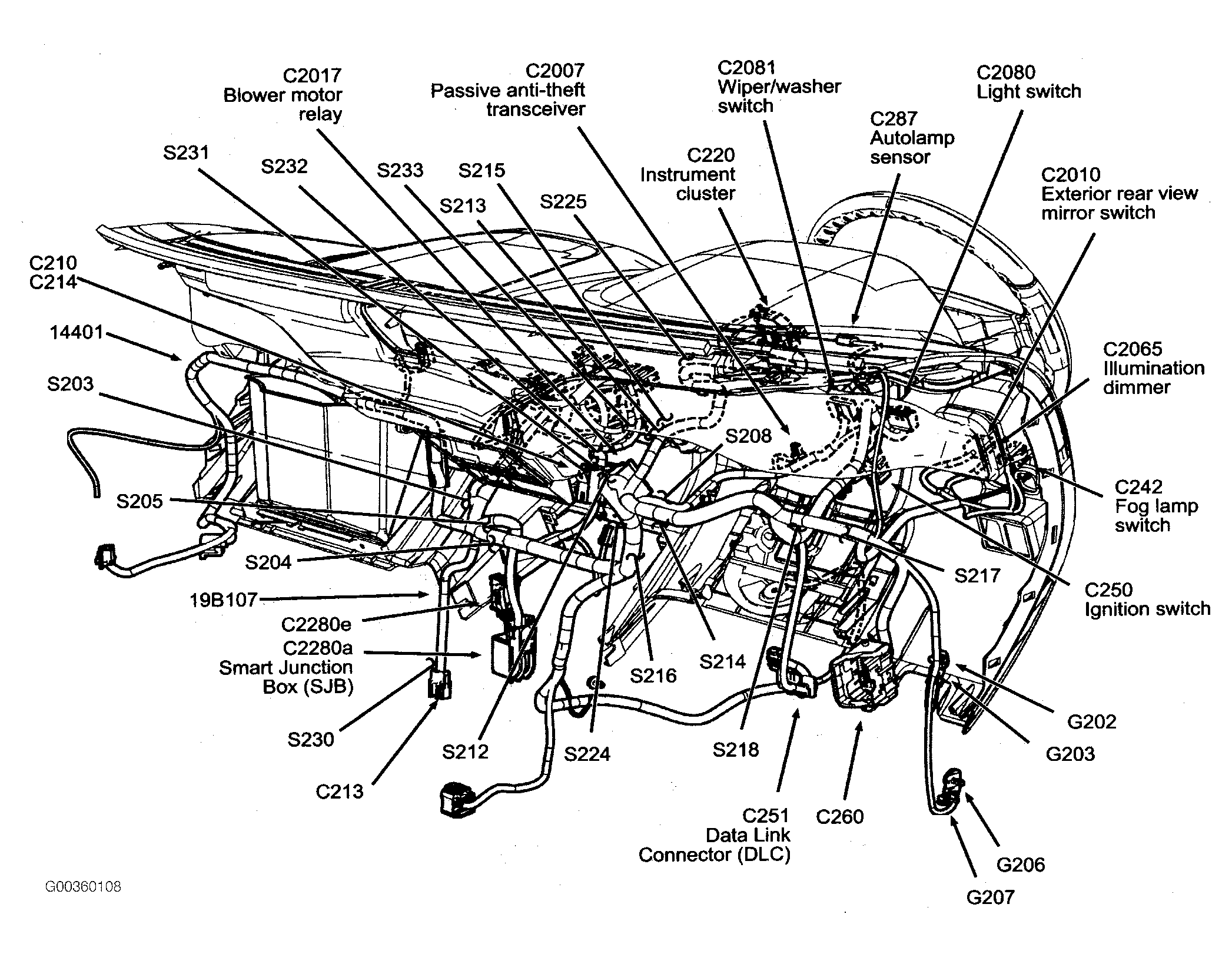

Fig 1: Behind Dash Panel Components And Relays
G00360108Courtesy of FORD MOTOR CO.
BEHIND DASH PANEL RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
C2017 Blower Motor Relay
