Battery Junction Box (BJB) (14A003)

NOTE: Battery junction box is located in left front corner of engine compartment. See Fig 1 or Fig 2 .

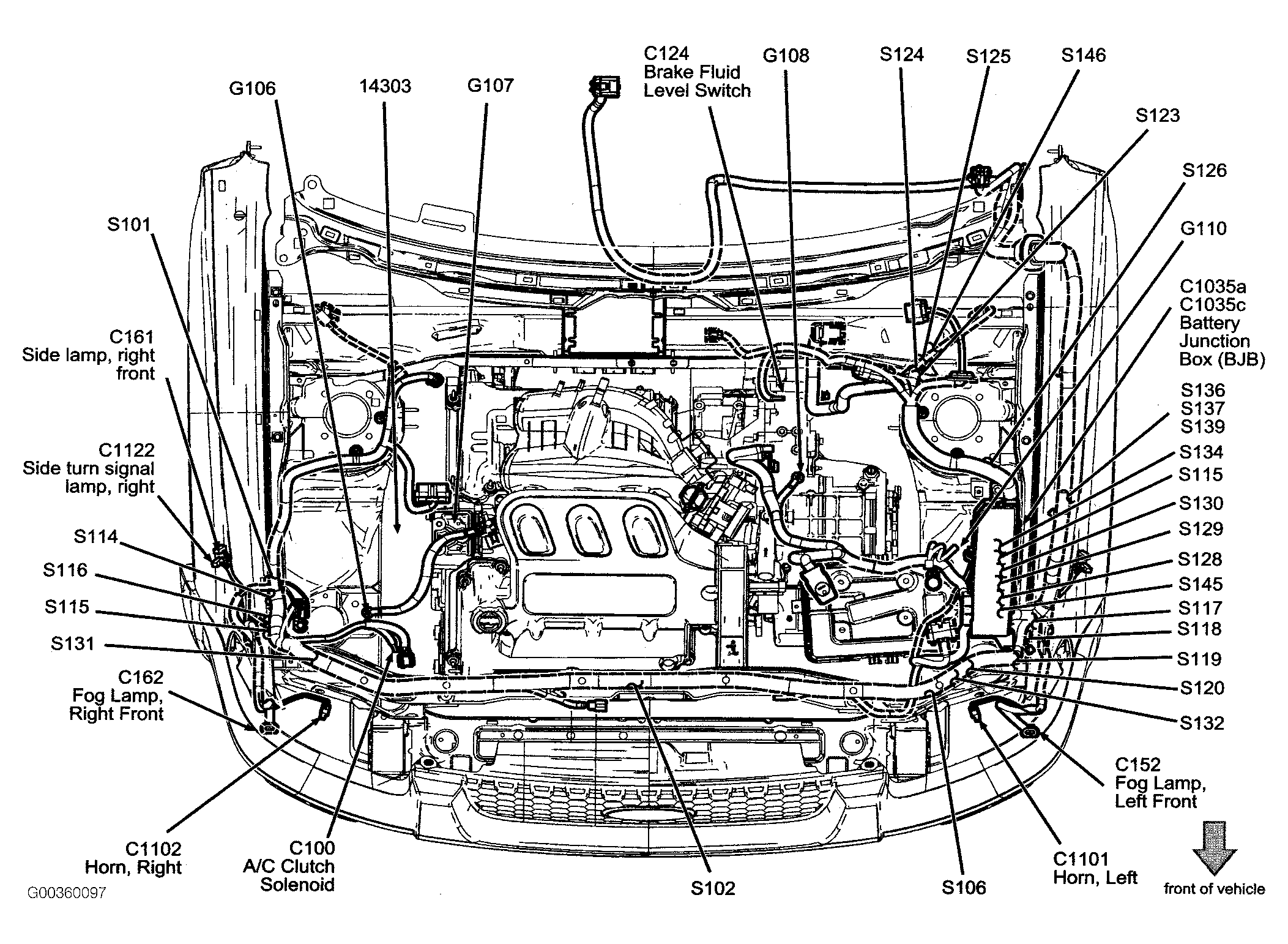

Fig 1: Engine Compartment (2.3L)

Courtesy of FORD MOTOR CO.

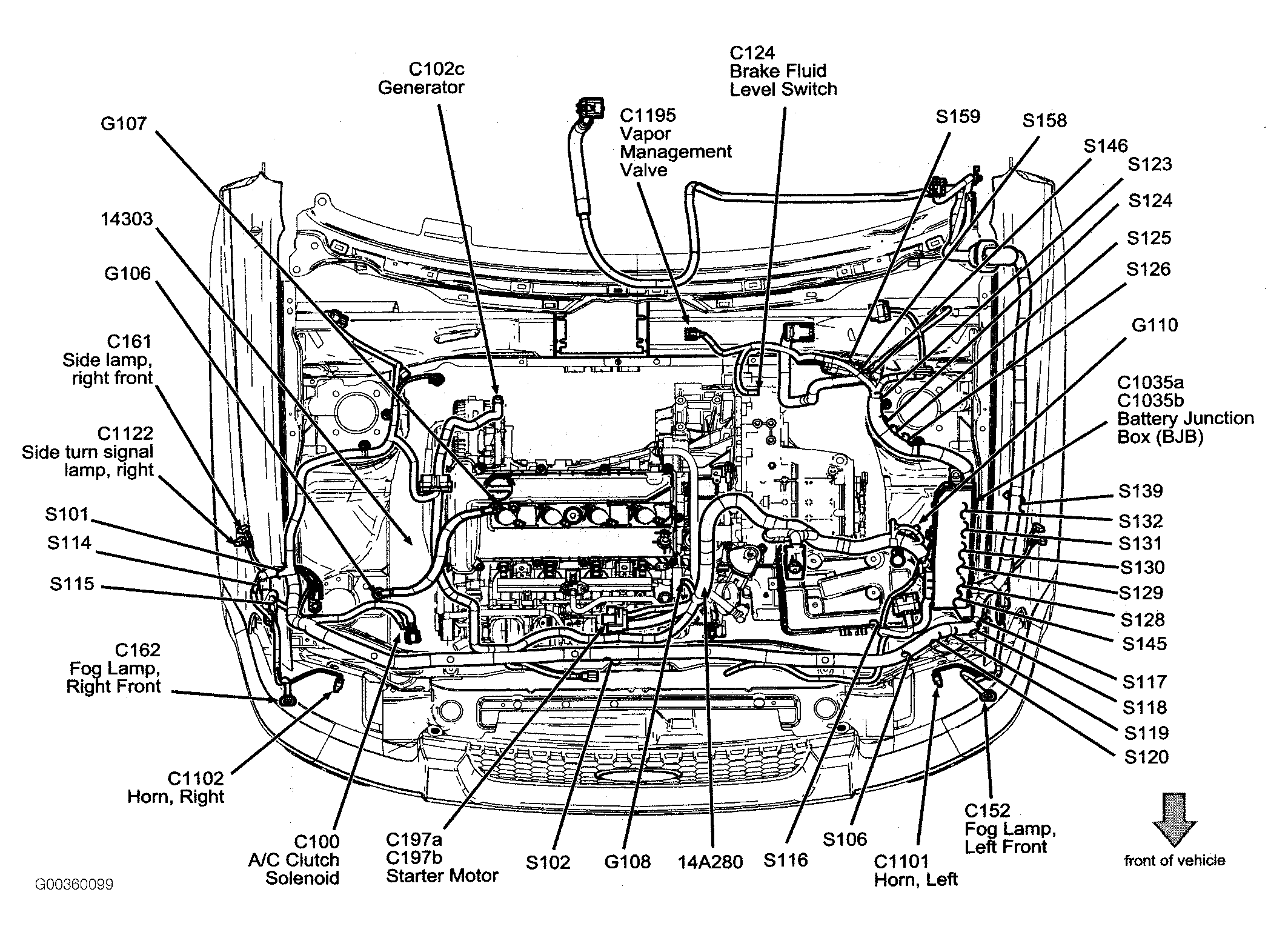

Fig 2: Engine Compartment (3.0L)

Courtesy of FORD MOTOR CO.

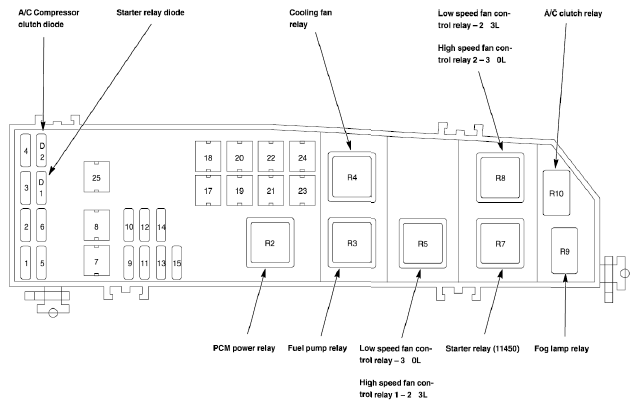

Fig 3: Battery Junction Box Components, Fuses And Relays

Courtesy of FORD MOTOR CO.

BATTERY JUNCTION BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Starter Relay diode
Cooling fan relay
Low speed fan control relay - 2 3L
High speed fan control relay 2 - 3 DL
A/C clutch relay
Fog lamp relay
Starter Relay (11450)
Low speed fan control relay - 3 OL
High speed fan control relay 1 - 2 3L
Fuel pump relay
PCM power relay

BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND

Fuse

Amps

Circuits protected

25A⁽¹⁾

I/P fuse panel (RUN/START)

25A⁽¹⁾

Headlamp power

25A⁽¹⁾

High beams, Turn signals, Interior lamps, Headlamp power

5A⁽¹⁾

Keep Alive Power (KA PWR)

15A⁽¹⁾

Heated Exhaust Gas Oxygen (HEGO) sensors

20A⁽¹⁾

Fuel pump

40A⁽²⁾

RUN/ACC relay - Electrochromatic inside mirror unit (17700), Cigar lighter, Front and rear wipers

30A⁽²⁾

Powertrain Control Module (PCM) (12A650), Injectors and coil

15A⁽¹⁾

Alternator

30A⁽¹⁾

Heated seats

10A⁽¹⁾

Powertrain Control Module (PCM) (12A650)

20A⁽¹⁾

Power point 1

20A⁽¹⁾

Fog lamps

15A⁽¹⁾

A/C clutch solenoid, A/C clutch relay

30A⁽¹⁾

Anti-lock Brake System (ABS) solenoid

50A⁽¹⁾

Ignition (main)

40A⁽¹⁾

Blower motor

40A⁽¹⁾

Accessory delay relay - Subwoofer and 4X4, Low beam

60A⁽²⁾

ABS

40A⁽²⁾

Horn, CHMSL, Cluster, Power locks and power seats

40A⁽²⁾

Cooling Fan

40A⁽²⁾

Rear defroster, Park lamp relay

40A⁽²⁾

High/Low speed fan

Shunt

PCM power relay

Fuel pump relay

Cooling fan relay

High/Low speed fan relay 1

Starter relay (11450)

High/Low speed fan relay 2

Fog lamp relay

R10

A/C clutch relay

Starter relay diode

A/C Compressor clutch diode

⁽¹⁾

Mini fuse

⁽²⁾

Cartridge fuse
