Removal and Installation

  1. Release the parking brake control boot clips at the floor console by pressing inward on the base of the boot.

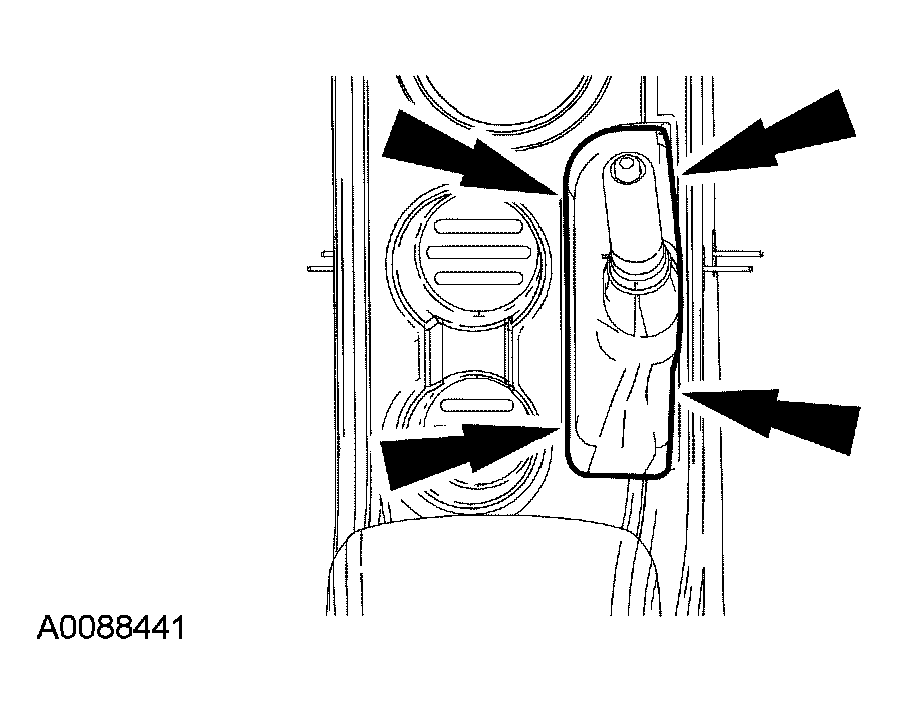

    Fig 1: Locating Parking Brake Control Boot
    G03897484Courtesy of FORD MOTOR CO.
  2. Remove the warning indicator switch screw.
  3. Disconnect the warning indicator switch electrical connector.
  4. Remove the warning indicator switch.
  5. To install, reverse the removal procedure.
