Removal and Installation
- Remove the rear drum brake shoes. For additional information, refer to DRUM BRAKE .
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Release the parking brake control boot clips at the floor console by pressing inward on the base of the boot.
- Remove the parking brake control boot.
- Pull the parking brake control boot up and over the lever.
- Loosen the front cable adjuster nut.
- Disconnect the cable connector from the LH rear parking brake cable at the equalizer.
- If removing the LH rear parking brake cable, remove the 2 parking brake equalizer bracket bolts.
- To install, tighten to 9 Nm (80 lb-in).
- If removing the LH rear parking brake cable, remove the cable-to-fuel tank strap clip.
- If removing the LH rear parking brake cable, disconnect the front parking brake cable from the equalizer bracket by compressing the cable conduit locking tabs.
- Remove the cable bracket-to-body bolt.
- To install, tighten to 23 Nm (17 lb-ft).
- Remove the cable bracket-to-trailing arm bolt.
- To install, tighten to 23 Nm (17 lb-ft).

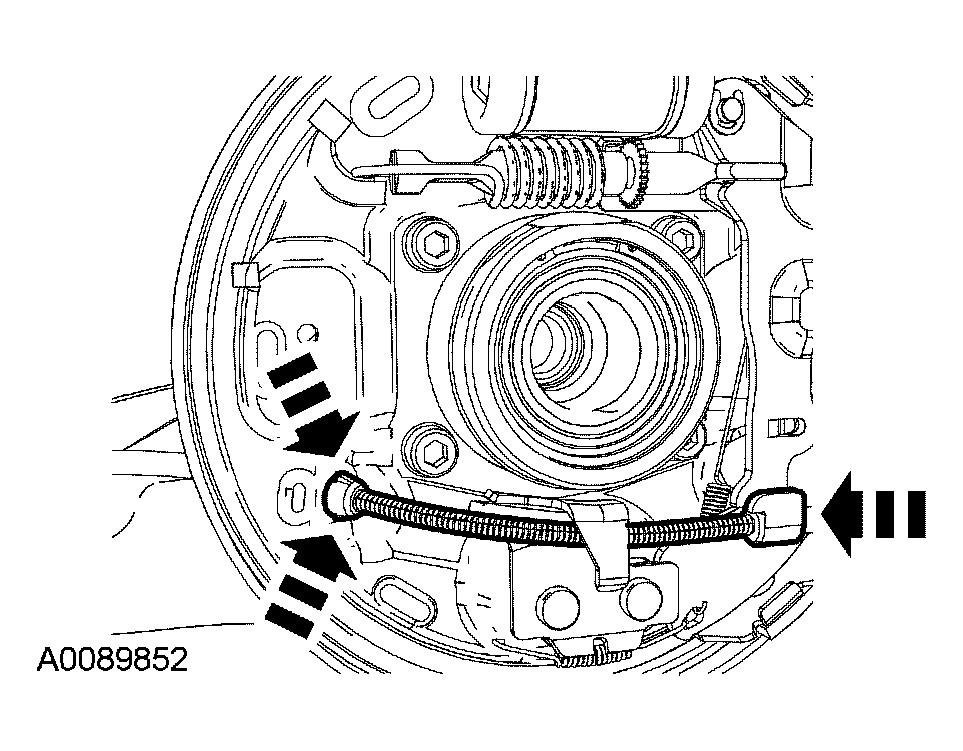

- Compress the rear parking brake cable conduit locking tabs and pull the cable assembly through the brake backing plate.

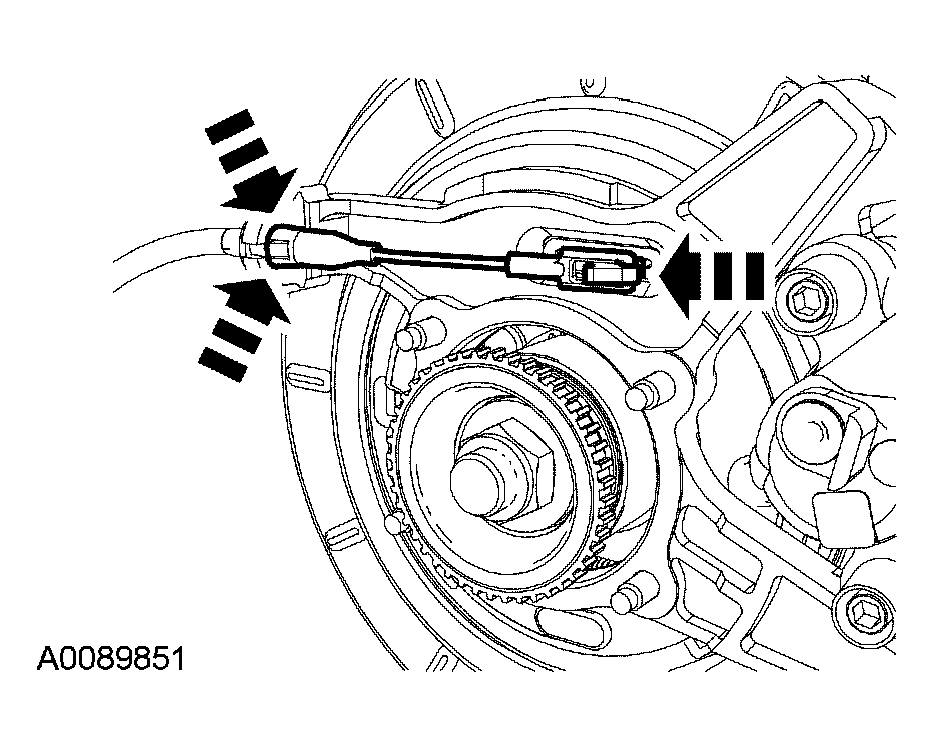

- Release the rear parking brake cable end from the parking brake actuator lever and compress the cable conduit locking tabs.
- To install, reverse the removal procedure.
- Adjust the parking brake cable. For additional information, refer to PARKING BRAKE CABLE ADJUSTMENT .
Drum brake vehicles
Disc brake vehicles
All vehicles
Drum brake vehicles
Disc brake vehicles
All vehicles
