Brake Master Cylinder: Material

BRAKE MASTER CYLINDER - MATERIAL

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A
Brake Parts Cleaner PM-4 -

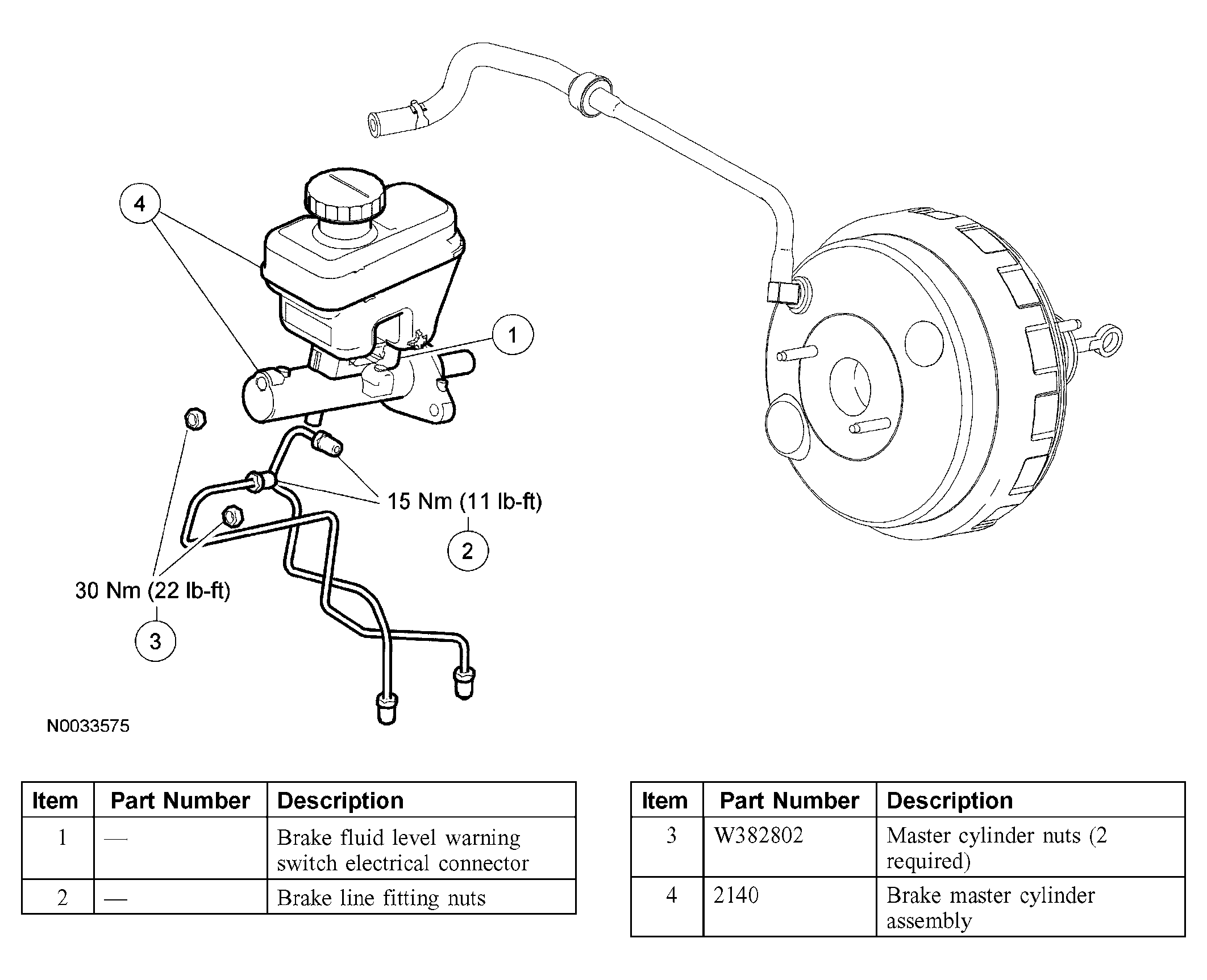

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
G03897493Courtesy of FORD MOTOR CO.
