Brake Master Cylinder - Escape Hybrid: Material

ESCAPE HYBRID BRAKE MASTER CYLINDER - MATERIAL

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A
Brake Parts Cleaner PM-4 -

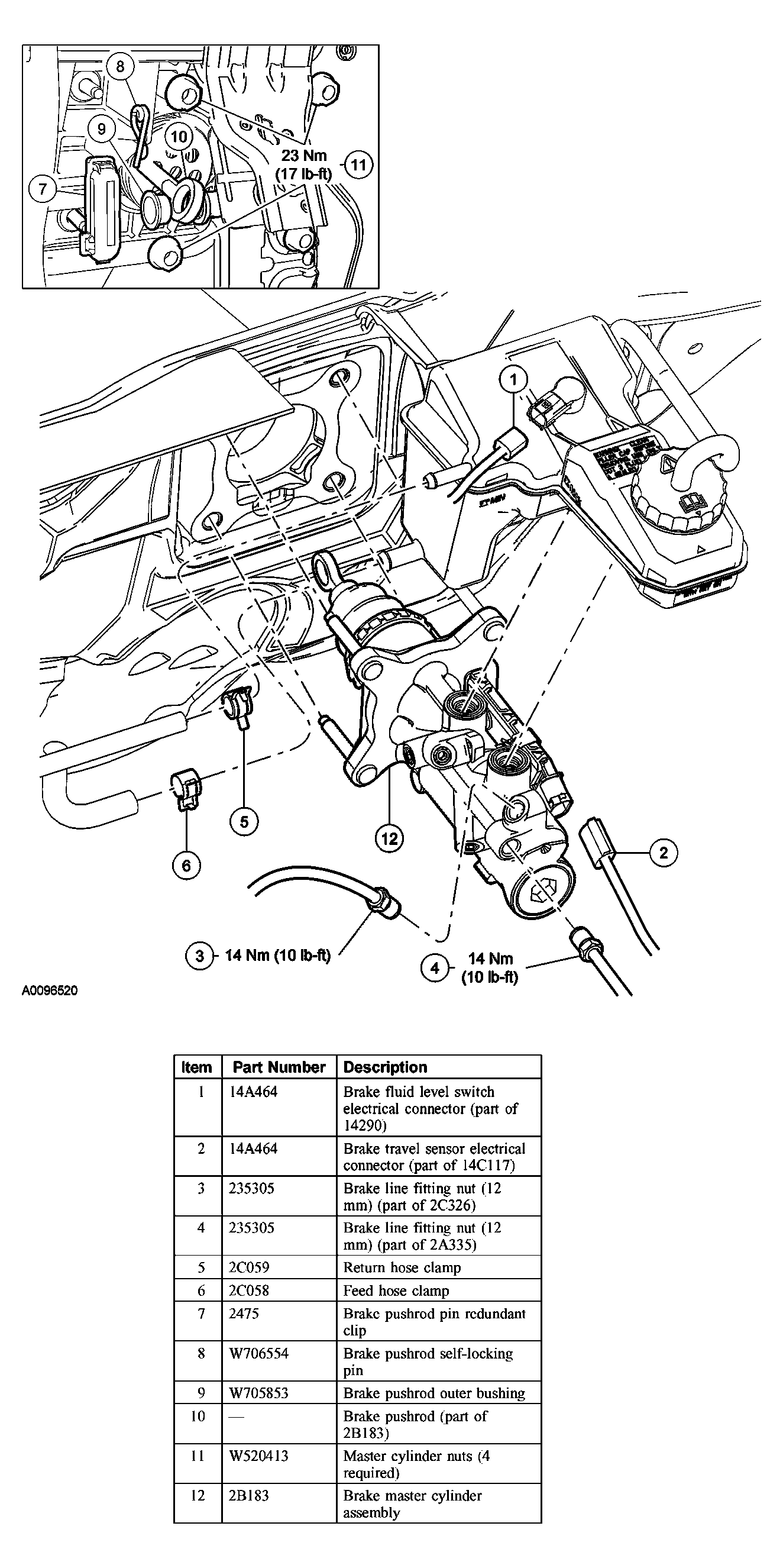

Fig 1: Exploded View Of Hydraulic Brake Actuation System With Torque Specifications
G03897495Courtesy of FORD MOTOR CO.
