Brake Shoe Adjustment

SPECIAL TOOL

G03961325
 Brake Adjustment Gauge 206-0002 (D81L-1103-A) or equivalent
  1. Remove the brake drum. For additional information, refer to BRAKE DRUM .
  2. Using the special tool, measure the inside diameter of the brake drum.
    Fig 1: Measuring Inside Diameter Of Brake Drum
    G03897467Courtesy of FORD MOTOR CO.
  3. Position the special tool on the brake shoes and linings and adjust accordingly.

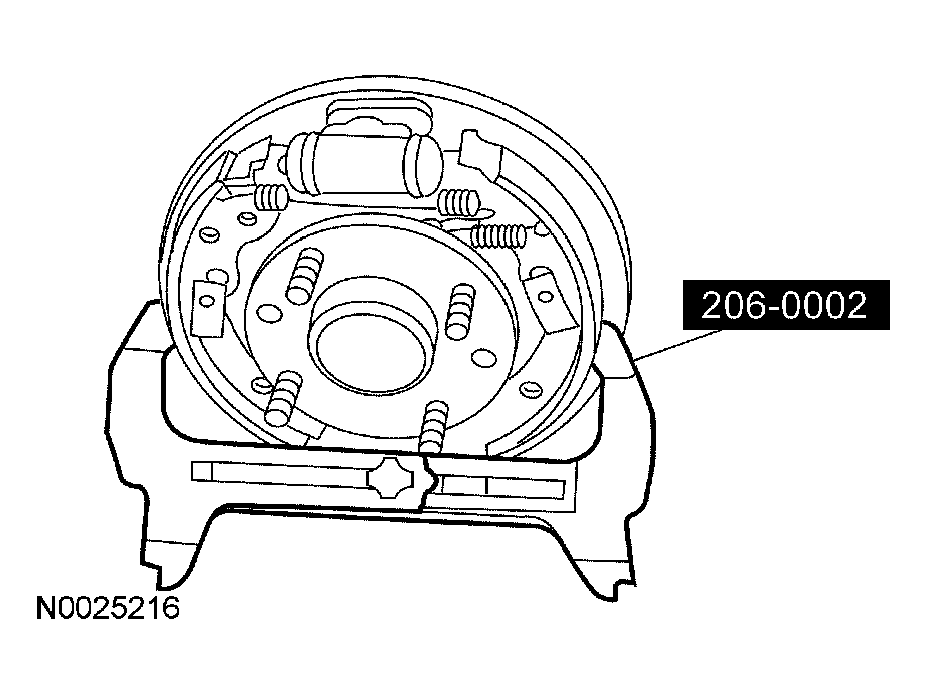

    Fig 2: Positioning Special Tool On Brake Shoes
    G03897468Courtesy of FORD MOTOR CO.
  4. Install the brake drum. For additional information, refer to BRAKE DRUM .
