Removal and Installation

  1. Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the roof opening panel rear drain hose.
    Fig 1: Disconnecting Roof Opening Panel Rear Drain Hose
    G03903550Courtesy of FORD MOTOR CO.
  3. Remove the roof opening panel rear drain hose.
    1. Disconnect the roof opening panel rear drain hose from the roof opening panel frame.
    2. Remove the roof opening panel rear drain hose.

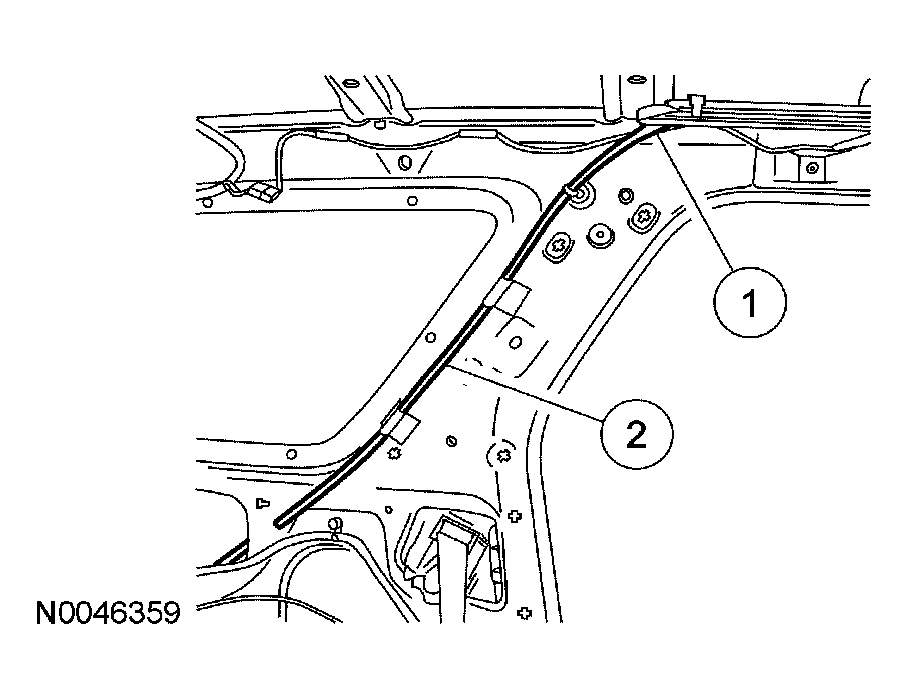

      Fig 2: Removing Roof Opening Panel Rear Drain Hose
      G03903551Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
