Connector Circuit Reference

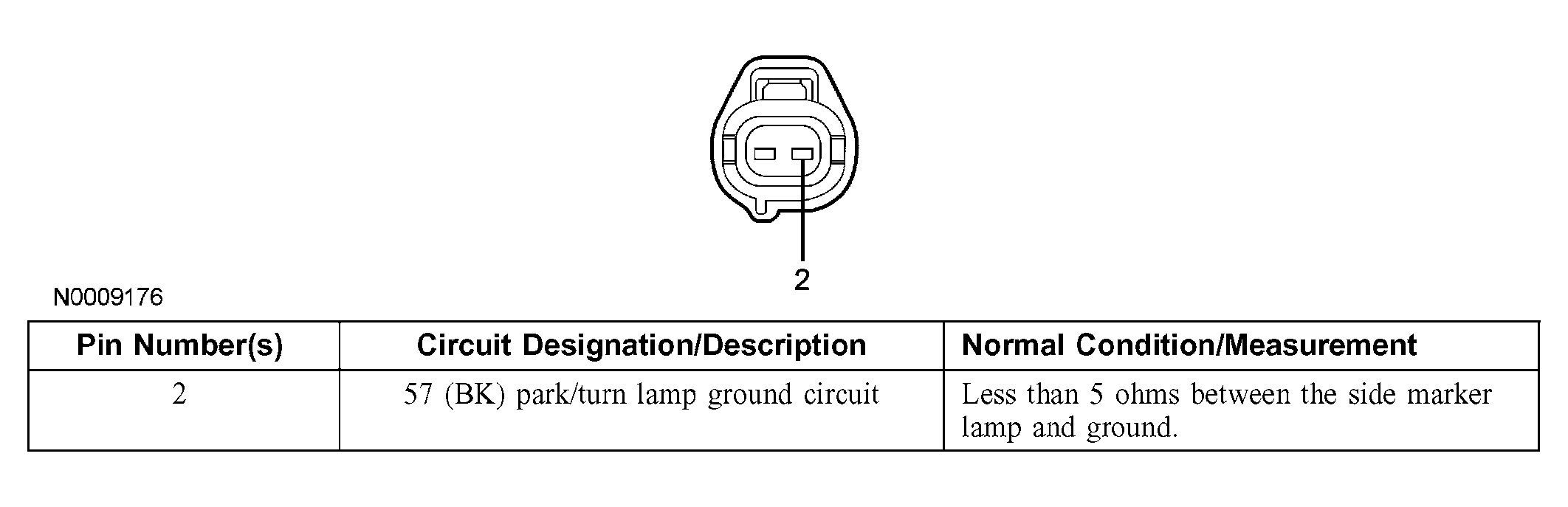

Fig 1: LH Side Marker Lamp C156 & RH Side Marker Lamp C166 Connector Pinouts
G03902882Courtesy of FORD MOTOR CO.
Fig 2: RH Rear Lamp C418 & LH Rear Lamp C419 Connector Pinouts
G03902883Courtesy of FORD MOTOR CO.

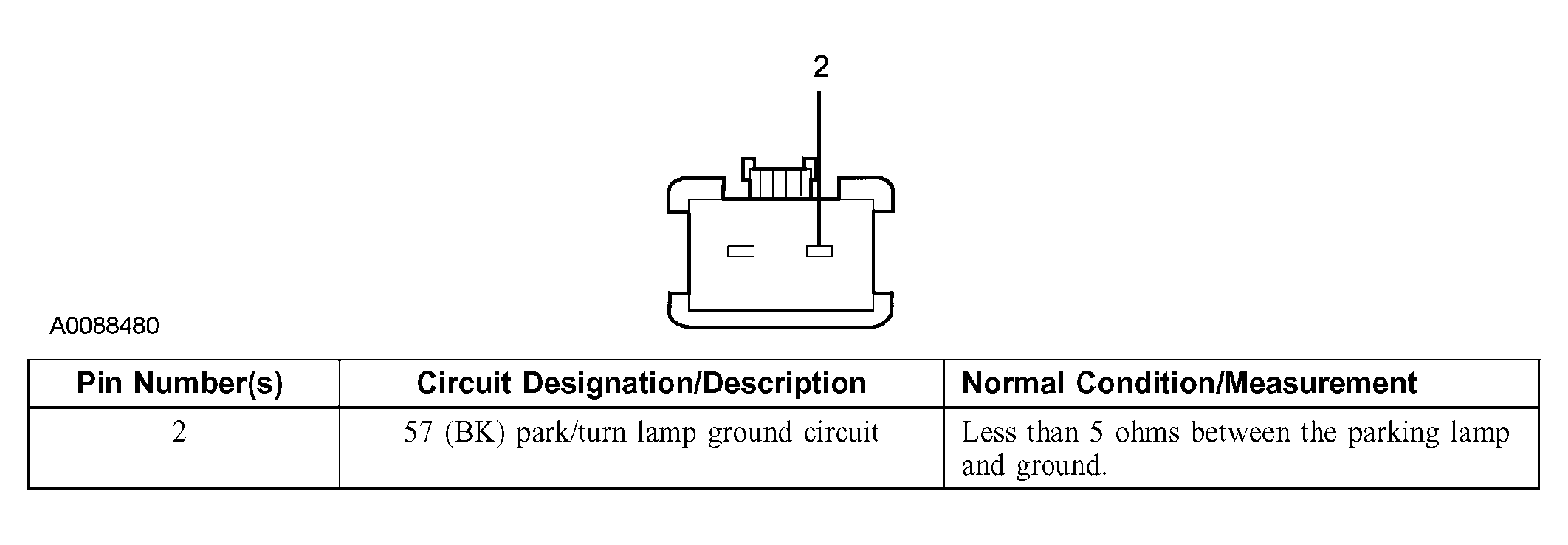

Fig 3: LH License Lamp C454 & RH License Lamp C462 Connector Pinouts
G03902884Courtesy of FORD MOTOR CO.

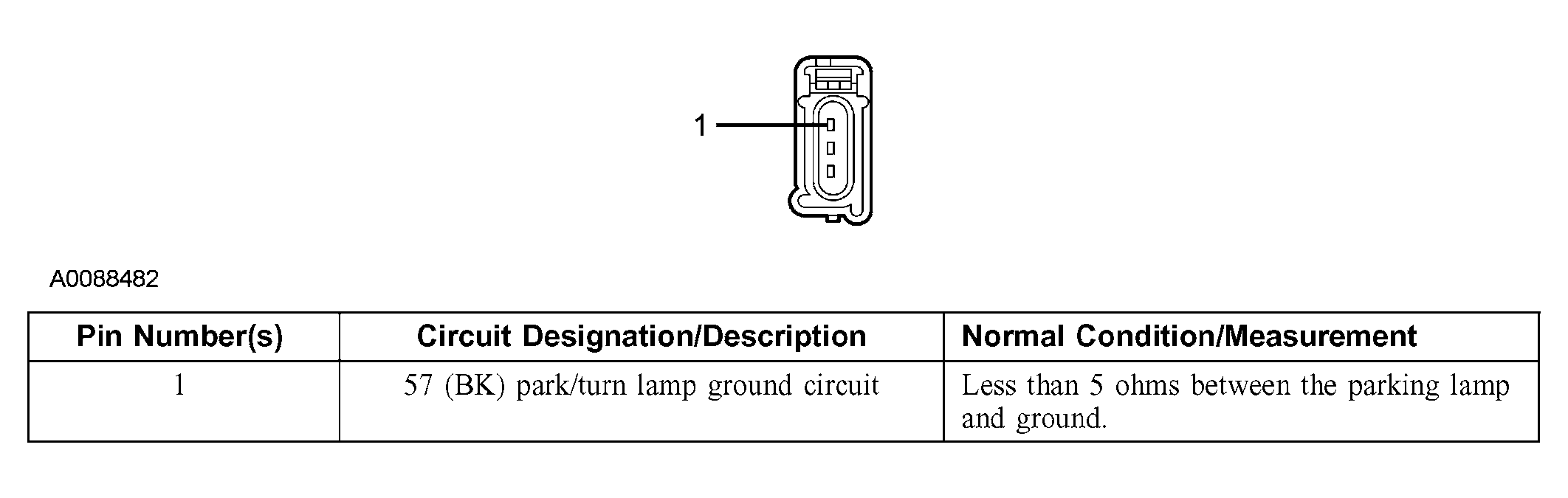

Fig 4: LH Front Parking/Turn Lamp C1023 & RH Front Parking/Turn Lamp C1043 Connector Pinouts
G03902885Courtesy of FORD MOTOR CO.

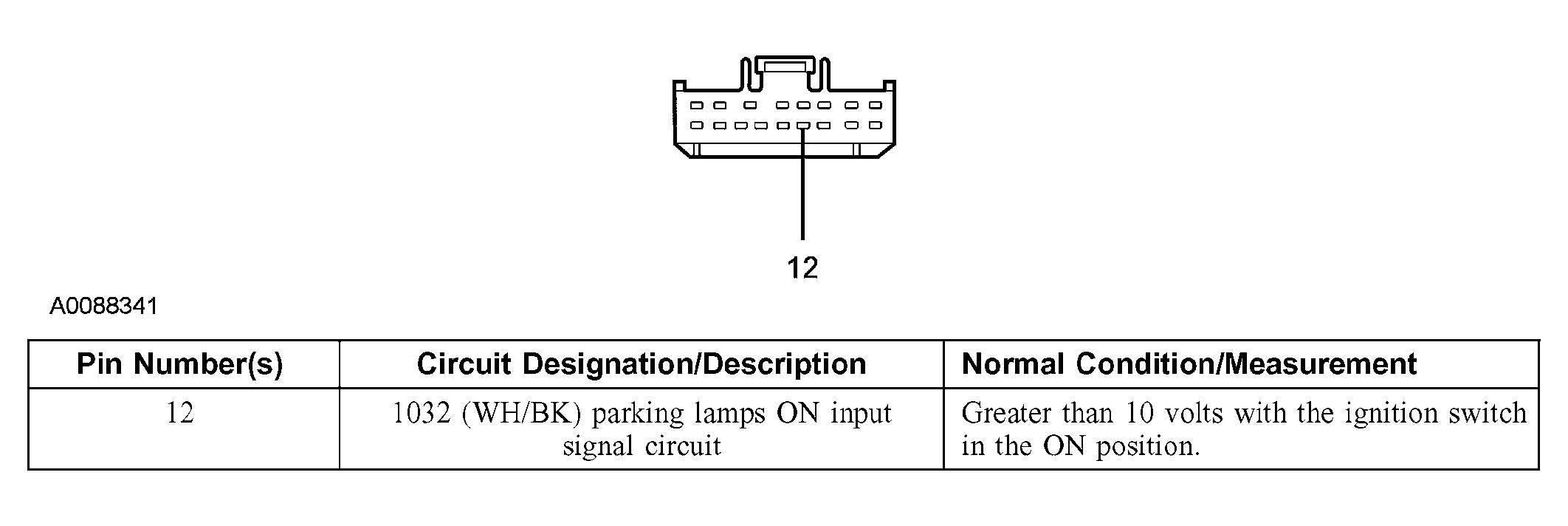

Fig 5: Multifunction Switch C2080 Connector Pinouts
G03902886Courtesy of FORD MOTOR CO.

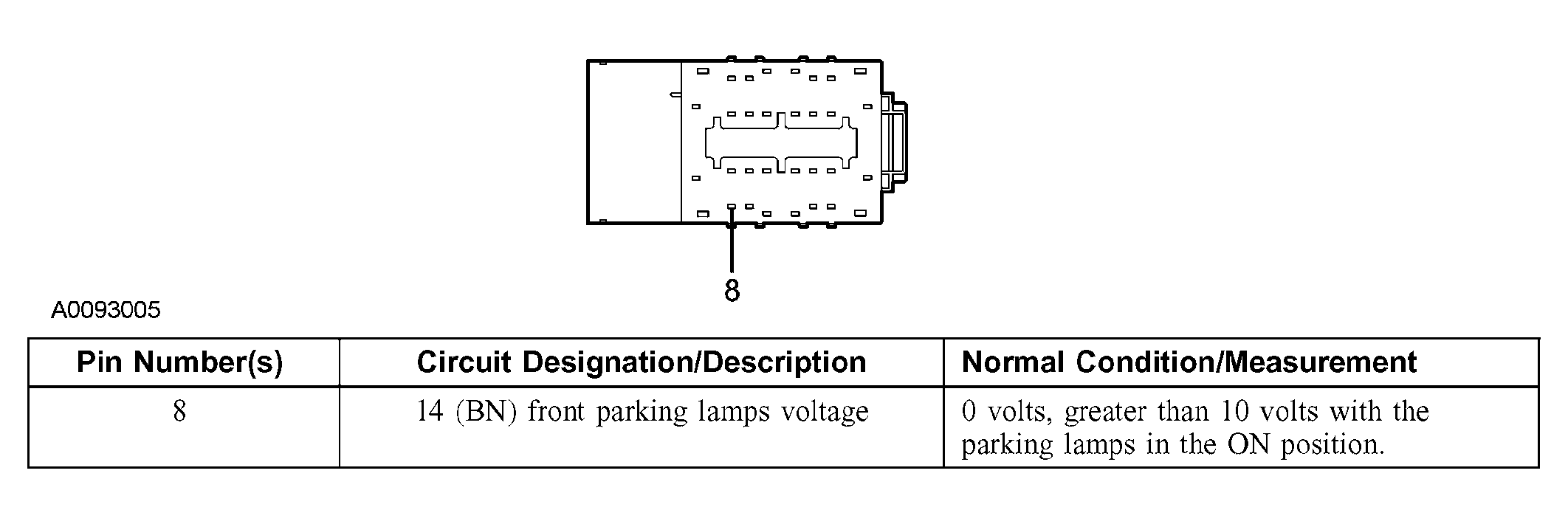

Fig 6: Smart Junction Box (SJB) C2280b Connector Pinouts
G03902887Courtesy of FORD MOTOR CO.

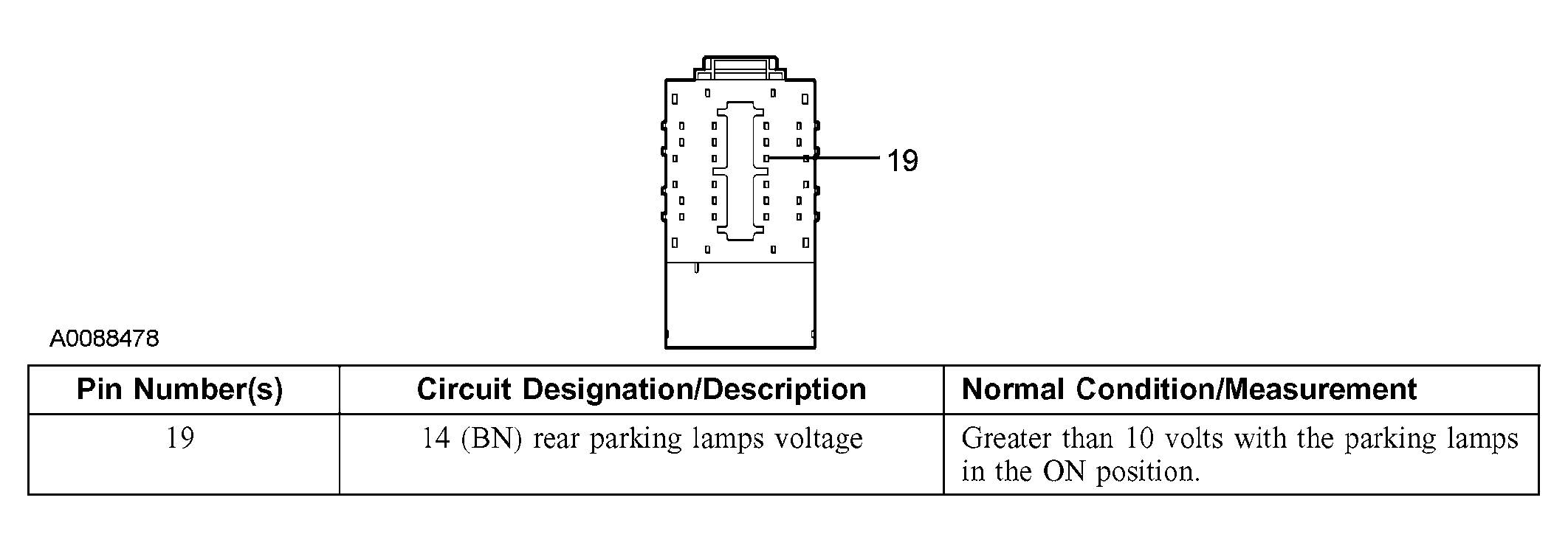

Fig 7: Smart Junction Box (SJB) C2280c Connector Pinouts
G03902888Courtesy of FORD MOTOR CO.

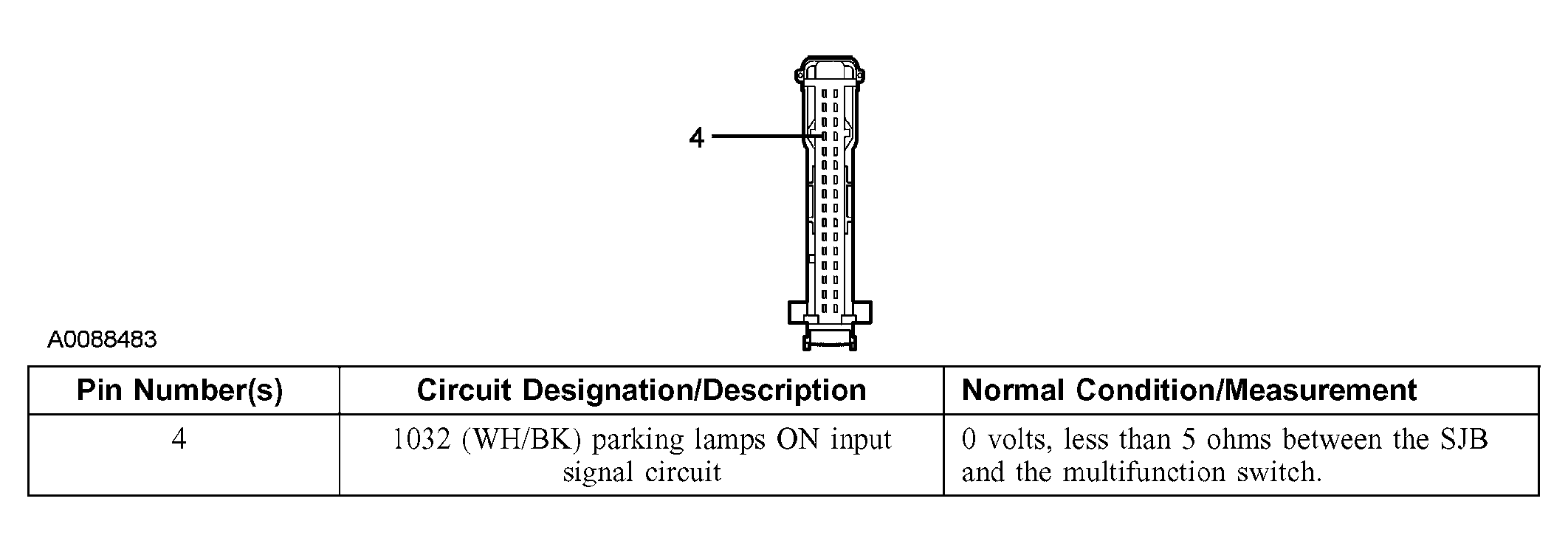

Fig 8: Smart Junction Box (SJB) C2280e Connector Pinouts
G03902889Courtesy of FORD MOTOR CO.
