Removal and Installation

  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Lower the glove compartment.
    • Press the glove compartment release tabs inward while pulling downward on the glove compartment.

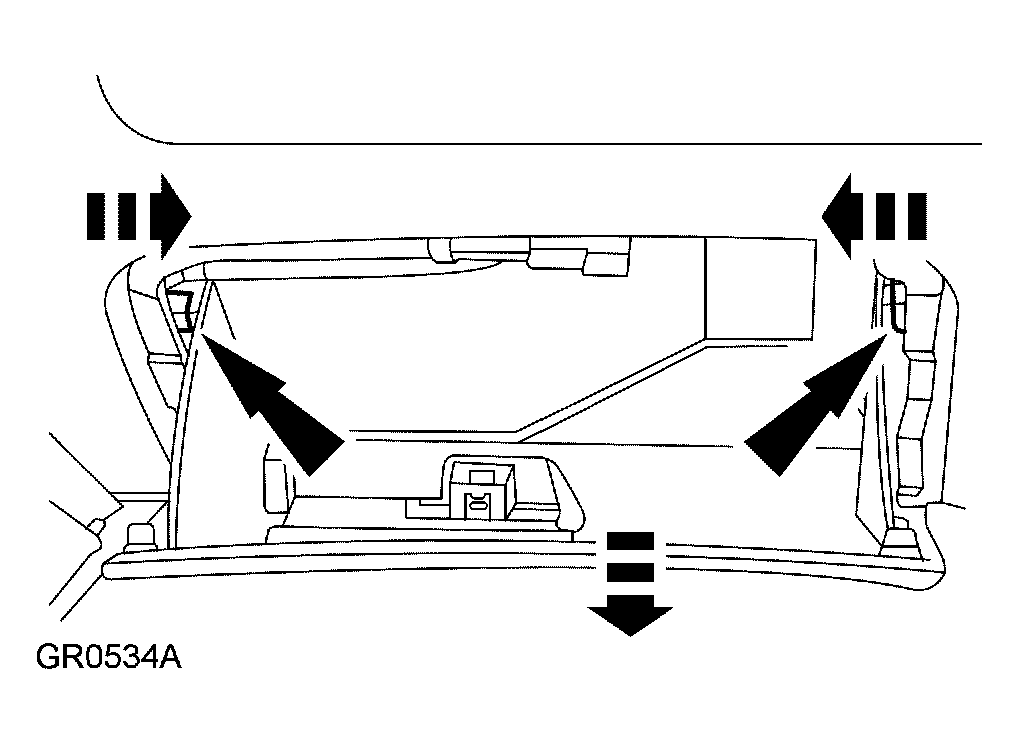

      Fig 1: Pressing Glove Compartment Release Tabs
      G03903379Courtesy of FORD MOTOR CO.
  3. Disconnect the temperature control cable from the blend door shaft.
    • Using the special tool, align the locator holes.
    • Release the locking tab.
    • Disconnect the temperature control cable.
      Fig 2: Disconnecting Temperature Control Cable From Blend Door Shaft
      G03903380Courtesy of FORD MOTOR CO.
  4. Remove the instrument panel center finish panel.
    • Disconnect the electrical connectors.

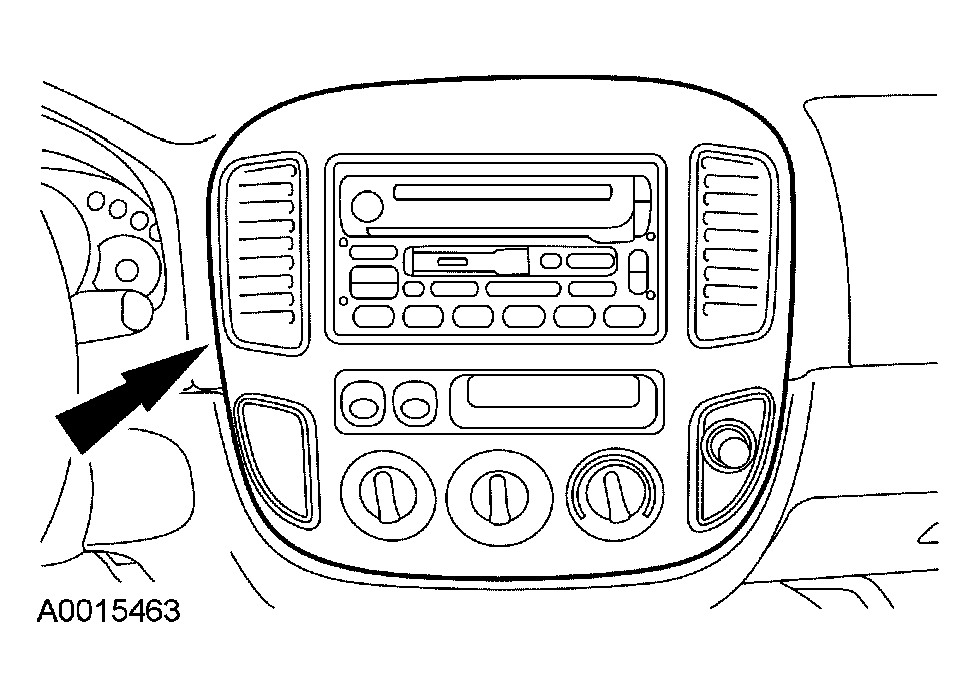

      Fig 3: Removing Instrument Panel Center Finish Panel
      G03903381Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
