Removal and Installation

  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Release the 6 tabs on the lens and remove the lens from the instrument cluster.

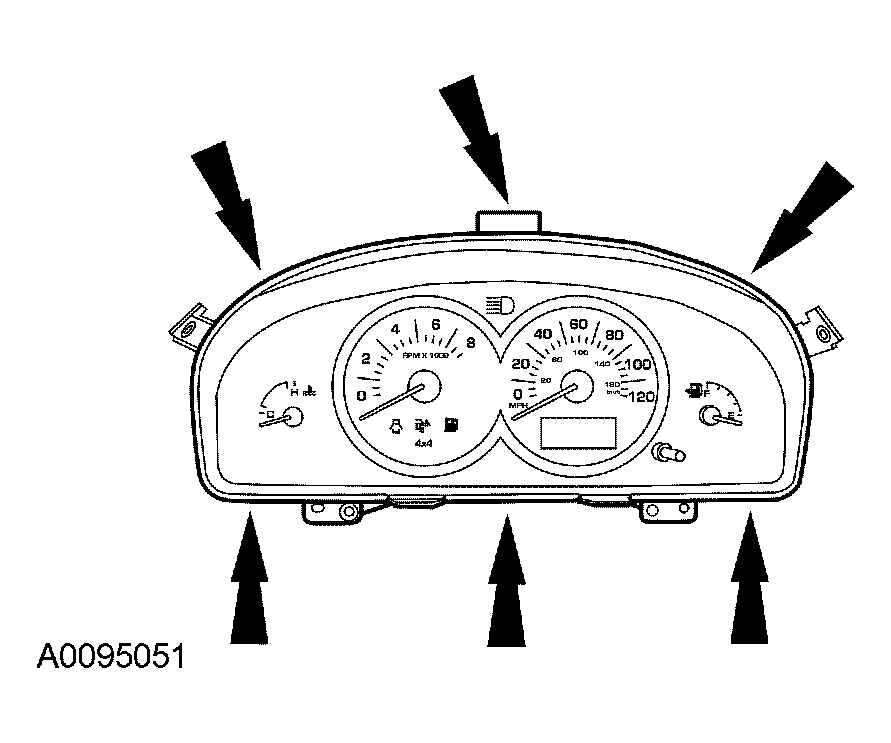

    Fig 1: Removing Instrument Cluster Lens
    G03902593Courtesy of FORD MOTOR CO.
